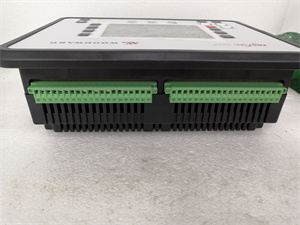

Name: Woodward EASYGEN 3200 - XINYEDA
Brand: Woodward

Description

WOODWARD EASYGEN 3200 Product Documentation

1. Product Overview

The WOODWARD EASYGEN 3200 is a advanced microprocessor-based genset controller designed for industrial power generation systems. As part of the EASYGEN 3000 series, it offers comprehensive control and protection for gas/diesel engines, steam turbines, and compressors. With a 5.7-inch LCD display and multi-language support, it provides intuitive operation and real-time monitoring. The controller supports up to 32 gensets in parallel, making it ideal for distributed energy systems and critical backup power applications.

2. Key Technical Parameters

Parameter	Specification
Input/Output	16 digital inputs, 6 analog inputs, 10 digital outputs, 2 analog outputs
Communication	Ethernet, USB, Modbus RTU/TCP, CAN bus, Redundant Ethernet
Protection Features	Over/under voltage/frequency, reverse power, loss of speed signal
Display	128×64 pixel graphical LCD with backlight
Dimensions	144 mm × 144 mm × 55 mm
Weight	0.8 kg
Power Supply	24 VDC ±15%

3. Advantages and Features

Flexible Configuration: Supports 4 operation modes (transducer/engine control, 1/2 breaker control) via FlexApp software.
Scalability: Connects up to 32 gensets in a single network for load sharing and synchronization.
Reliability: Built-in redundancy and comprehensive protections minimize downtime.
Ease of Use: Multi-language interface (14 languages) and plug-and-play design simplify setup.

4. Application Areas and Use Cases

Energy: Power plants, microgrids, and backup systems.
Industrial: Manufacturing facilities, oil/gas refineries.
Commercial: Hospitals, data centers requiring continuous power.

Case Study: A manufacturing plant used the EASYGEN 3200 to manage 8 diesel generators in parallel, achieving seamless load distribution and reducing fuel consumption by 15%.

5. Competitive Comparison

The EASYGEN 3200 stands out with:

Superior Parallel Capability: Supports more gensets than standard controllers.
Advanced Communication: Redundant Ethernet and USB connectivity for robust integration.
User-Friendly Interface: Larger display and multi-language support enhance operability.

6. Selection Recommendations

System Size: Choose based on the number of gensets (single or parallel).
Communication Needs: Prioritize Ethernet/USB for remote monitoring.
Budget: Factor in software licenses and expansion modules.

7. Precautions

Installation: Ensure proper ventilation and avoid extreme temperatures.
Maintenance: Regularly update firmware and verify sensor connections.
Compatibility: Confirm engine/generator specifications match the controller’s ratings.

Shanxi Xinyeda International Trade Co., Ltd. provides WOODWARD EASYGEN 3200 and automation solutions. Contact us for sales and technical support.
