WOODWARD 8200-1302

Description

The following is the product documentation for WOODWARD 8200-1302:

1.Product description

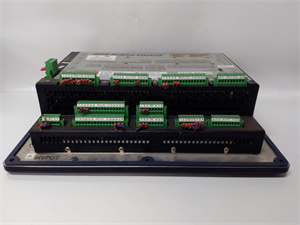

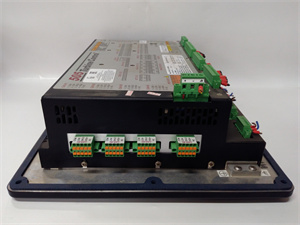

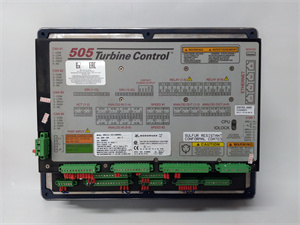

WOODWARD 8200-1302 is an advanced digital governor designed primarily for steam turbine control.It belongs to the Woodward 505 series of digital governors and provides users with a highly integrated and intelligent control solution.The product features an integrated graphical front panel HMI screen that supports multiple languages,including Chinese,for easy operation,diagnosis and control.Ethernet communication to factory DCS,service tools and remote view operations control panel,as well as Canopen actuator connectivity.With intelligent/adaptive control algorithms such as Optitune Adaptive PID technology and accelerated PID control,turbine performance can be optimized to ensure a stable and efficient plant start up.

2.Product parameters

Power input:18-36 VDC

Interface type:Ethernet interface,Canopen interface,8 analog inputs,20 contact inputs,2 4-20 mA control outputs and 8 Form-C relay contact outputs

Speed input:2 redundant speed inputs that can accept magnetoelectric sensors,eddy current probes or proximity probes

Operation mode:Configuration,operation and calibration three modes

Size:263×58×28 mm

Weight:4.3kg

3.Advantages and characteristics

High reliability:Industrial grade design,with vibration,shock and electromagnetic interference resistance,suitable for harsh working environments.Built-in self-diagnosis and status monitoring functions can quickly detect faults and issue alarms to improve the reliability of system operation.

Intelligent control:The use of advanced intelligent/adaptive control algorithms,such as Optitune adaptive PID technology and accelerated PID control,can automatically optimize turbine performance,achieve better load rejection processing,critical speed avoidance and stable start-up acceleration.

Easy operation:Integrated graphical front panel HMI screen,friendly interface,large screen for parameter viewing and operation navigation.Support multiple languages,easy to use worldwide users.

Strong communication ability:with a wealth of communication interfaces,Ethernet and Canopen communication functions can be easily integrated with other systems to achieve remote monitoring and data transmission.

4.Application fields and application cases

Applications:Widely used in industrial facilities,commercial buildings,power stations,Marine applications and oil and gas industry.In these fields,it is used to control steam turbines,drive equipment such as generators,compressors,pumps or industrial fans.

Application Case:In a large power station,WOODWARD 8200-1302 was used to control the steam turbine.Through its precise speed regulation and intelligent control function,the operation efficiency of the turbine is effectively improved and the energy consumption is reduced.The ability to quickly respond to and stabilize turbine speed and output power when the grid load changes ensures the stability and reliability of power generation,while reducing maintenance costs and downtime.

5.Comparison of competitive products

Compared to similar products on the market,WOODWARD 8200-1302 has a richer communication interface and can be more easily integrated with various systems.Its intelligent/adaptive control algorithm is more advanced and performs better in load rejection processing,critical speed avoidance and start-up acceleration control,enabling more accurate turbine control and optimized equipment performance.In addition,the product’s HMI interface supports multiple languages,making it easier to operate and more applicable,providing a better user experience for users around the world.

6.Selection suggestions

Compatibility:Ensure that the selected WOODWARD 8200-1302 is compatible with existing turbine equipment and other related control systems in terms of interfaces,communication protocols,etc.,to avoid integration problems.

Installation environment:Consider factors such as the space size of the installation location,ambient temperature,humidity,and vibration.Because the product has a good ability to resist harsh environments,but in extreme conditions,it is still necessary to take appropriate protective measures.

Functional requirements:Evaluate whether specific functions are required based on actual application scenarios,such as specific communication interfaces and control algorithms.Ensure that the functions of the 8200-1302 meet the specific requirements of turbine control.

Budget:Comprehensive consideration of product price,installation costs,maintenance costs and potential energy savings and other factors to ensure that the selection is within the budget range,while achieving the best cost-effective.

7.Precautions

Installation:During the installation process,strictly follow the product instructions to ensure that the cable connections are correct and firm to avoid damage or failure of the device due to incorrect cable connections.The installation position should be easy to operate and maintain,while ensuring good ventilation and heat dissipation conditions.

Safety specifications:Before powering on the device,check whether the device is properly grounded to ensure the safety of operators.During any maintenance or commissioning operation,the power supply must be cut off first to prevent electric shock accidents.

Maintenance:Periodically clean the device and check whether the ports are loose and cables are damaged.Software updates and calibrations are carried out at specified intervals to ensure the stability and accuracy of equipment performance.At the same time,you are advised to set up device running records so that potential problems can be discovered and handled in a timely manner.

Shanxi Xinyeda International Trading Co.,Ltd.is your trusted partner,we provide WOODWARD 8200-1302 and other automation spare parts sales and technical support.Please visit our website www.xydcontrol.com or contact us and we will be happy to serve you.
