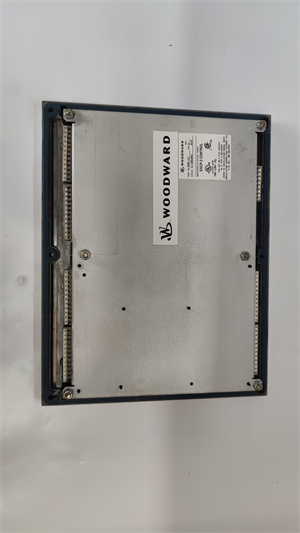

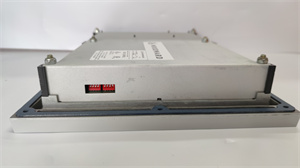

Woodward EGCP-2 8406-121 Digital generator and engine controller

1.Product overview

The Woodward EGCP-2 8406-121 is an integrated microprocessor-based control system designed for diesel or gas engine-driven generator sets for power generation automation and equipment protection.It can operate independently or in parallel with the power grid,and supports cooperative control of multiple units(up to 8 units),which is suitable for base load,peak balancing and backup power supply scenarios.

2.Core functions

Engine control:speed regulation,automatic start/stop,fault protection(oil/water temperature/battery abnormal).

Generator management:synchronous grid connection,active power(kW)and reactive power(kVar)load control,multi-unit sequential start and stop.

Data monitoring:Dual LCD screens display real-time operating parameters(speed,voltage,load,etc.),support Modbus communication.

Protection mechanism:overvoltage/undervoltage,overload,high temperature alarm and shutdown protection.

3.Technical parameters

Parameter specification

Input voltage 50-150 VAC PT(Generator voltage detection)

Power supply voltage 9-32 VDC

Operating temperature-20°C to+70°C

Storage temperature-40°C to+105°C

Dimensions 282×358×69 mm

Communication Protocol Modbus RTU(Cable to be purchased separately)

4.Application Scenarios

Power industry:distributed generation,backup power system.

Industrial field:factory owned power plant,petrochemical compressor drive.

Commercial facilities:data centers,hospitals and other places with high requirements for power supply stability.

5.Product advantages

Flexible configuration:Supports network control of single or multiple units to meet different power requirements.

Reliability:Dual redundancy design(some models),wide temperature operation,anti-EMI interference.

Easy maintenance:Intuitive LCD interface with remote monitoring to reduce downtime.

6.Precautions

Accessory requirements:An additional connector kit(8928-301)and communication cable(5417-551)are required for installation.

Environmental adaptation:Avoid use in humidity>95%or dust environment to ensure good heat dissipation.

Software Update:Firmware upgrade through Woodward official tools to ensure functionality and compatibility.

7.Selection suggestions

Voltage matching:Verify that the generator output voltage is consistent with the PT input range(50-150 VAC).

Expansion requirements:If multiple units need to be interconnected or monitored remotely,the Modbus module must be configured.

Special environment:Select a wide temperature model(-40°C to+105°C)for low or high temperature scenarios.
