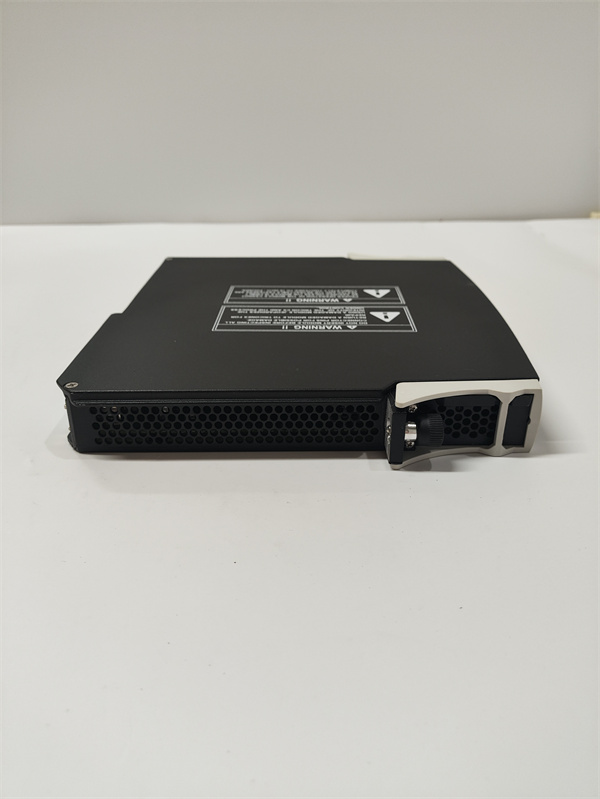

TRICONEX 3902AX

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Module Type	Universal I/O Module for safety-critical systems
Channels	16 configurable (AI/DI/AO/DO)
Redundancy	Triple Modular Redundancy (TMR) with 2-out-of-3 voting logic
Input Voltage	120V AC/240V AC (configurable)
Output Voltage	24V DC
Control Accuracy	±0.5% of full scale
Signal Types	AI: 4-20mA, 0-10V; DI: 24V DC; AO: 4-20mA; DO: 24V DC
Communication Protocols	HART, Modbus, Profibus, Ethernet/IP
Response Time	< 10 ms (switching on/off)
Operating Temperature	-40°C to +70°C (storage: -45°C to +85°C)
Humidity	5%–95% non-condensing
SIL Certification	SIL-3 (IEC 61508)
Compatibility	TRICONEX Tricon CX, EX, and legacy systems; integrates with SCADA and DCS
Power Consumption	< 25 W (maximum under full load)

TRICONEX 3902AX

3. Advantages and Characteristics

• Triple Modular Redundancy (TMR): The TRICONEX 3902AX’s TMR architecture ensures continuous operation even if one channel fails, achieving a mean time between failures (MTBF) exceeding 500,000 hours. This reduces the risk of unplanned shutdowns by up to 90% compared to non-redundant modules.
• SIL-3 Safety Compliance: Certified for the highest safety integrity level, the module is critical for applications like emergency shutdown systems (ESD) and turbine protection in power plants.
• Flexible Channel Configuration: Each of the 16 channels can be independently configured as AI, DI, AO, or DO, eliminating the need for multiple specialized modules and reducing system complexity.
• HART-Enabled Diagnostics: Real-time monitoring of sensor health, signal integrity, and module status provides early fault detection, reducing mean time to repair (MTTR) by 50%.
• Hot-Swap Capability: Faulty modules can be replaced while the system is operational, minimizing downtime. In a petrochemical plant case, this feature allowed technicians to replace a faulty channel in under 15 minutes, safeguarding against potential losses of $100,000 per hour.
• Wide Environmental Range: Withstands extreme temperatures (-40°C to +70°C) and high-vibration environments, making it suitable for offshore platforms and heavy manufacturing.

4. Application Areas and Application Cases

• Industry Applications:
  • Oil & Gas: Controls ESD valves, compressor interlocks, and wellhead safety systems.
  • Chemical Processing: Manages reactor safety interlocks, batch process actuators, and quality control systems.
  • Power Generation: Supports turbine protection, generator circuit breakers, and boiler safety relays.
  • Manufacturing: Triggers safety interlocks, conveyor controls, and automated production line actuators.
• Case Study:
  A large LNG processing plant in Qatar integrated the TRICONEX 3902AX into its ESD system to monitor 120+ critical sensors. The module’s TMR architecture and HART diagnostics detected a failing pressure sensor during routine operation, automatically switching to redundant channels while maintaining full control. This prevented a potential shutdown that could have disrupted LNG production for hours, safeguarding an estimated $1.8 million in hourly output.

5. Competitive Comparison

The TRICONEX 3902AX outperforms many competitors in the safety-critical I/O market by combining SIL-3 certification, TMR redundancy, and configurable channel flexibility. While some alternatives offer basic I/O functionality, few match its ability to handle mixed signal types (AI/DI/AO/DO) in a single module, reducing hardware costs and space requirements. Its HART compatibility and advanced diagnostics also provide deeper insights into system health compared to modules lacking these features. Unlike competitors relying on single-channel designs, the TRICONEX 3902AX’s TMR architecture ensures continuous operation during component failures, making it the preferred choice for industries where safety and reliability are non-negotiable.

TRICONEX 3902AX

6. Selection Recommendations

• System Compatibility: Verify compatibility with your TRICONEX control system (e.g., Tricon CX, EX) and backplane configuration. Ensure software versions and communication protocols align with your infrastructure.
• Signal Requirements: Confirm the module’s voltage/current ranges (120V AC/240V AC input, 24V DC output) match your field devices. For mixed signal applications, leverage its configurable channels to minimize module count.
• Environmental Conditions: If deploying in harsh environments (e.g., offshore, high-temperature zones), ensure the module’s temperature and vibration ratings align with site conditions.
• Redundancy Strategy: Pair with redundant power supplies and communication networks for maximum availability. Consider TMR configurations for critical safety loops.

7. Precautions

• Installation: Power down the system and use anti-static wrist straps during installation to prevent ESD damage. Secure cables to minimize EMI and ensure proper grounding.
• Configuration: Use TRICONEX’s approved software tools (e.g., Tristation 1131) to program channel types, HART parameters, and voting logic, ensuring alignment with safety loop requirements.
• Maintenance: Regularly review diagnostic data via the control system interface to monitor channel health. Schedule firmware updates to incorporate the latest safety patches, following manufacturer guidelines.
• Troubleshooting: Replace faulty modules during planned maintenance or hot-standby mode. Validate system functionality post-replacement to ensure proper operation.
