TRICONEX 3700A

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Module Type	TMR Analog Input Module for Safety Instrumented Systems (SIS)
Input Channels	32 isolated channels (0–5 V or 0–10 V)
Redundancy	Triple Modular Redundancy (TMR) with median-voting logic
Resolution	12 bits
Accuracy	< 0.15% of full-scale range (FSR) at 0°C–60°C
Input Resistance	30 MΩ (DC)
Common Mode Rejection	-80 dB (DC–100 Hz)
Input Overrange Protection	150 VDC/115 VAC continuous
Power Supply	18–32 V DC (±10%)
Power Consumption	12 W (typical)
Operating Temperature	-40°C to +70°C (storage: -40°C to +85°C)
SIL Certification	SIL-3 (IEC 61508)
Compatibility	TRICONEX Tricon CX, EX, and legacy systems; integrates with SCADA and DCS

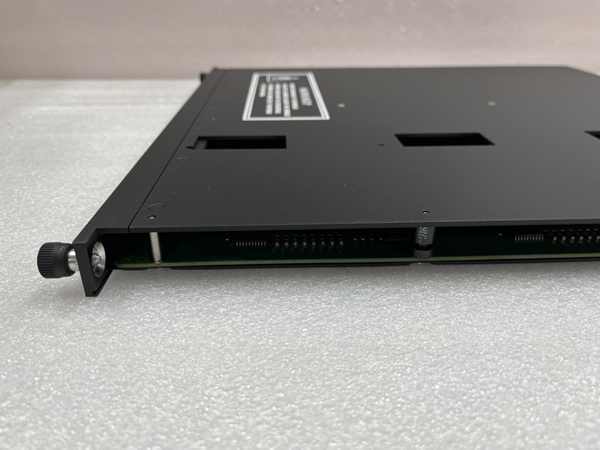

TRICONEX 3700A

3. Advantages and Characteristics

• TMR Architecture: The TRICONEX 3700A uses Triple Modular Redundancy to ensure continuous operation even if one channel fails. This redundancy reduces the risk of critical process interruptions by up to 90% compared to non-redundant modules.
• SIL-3 Safety Compliance: Certified to SIL-3, the module meets the highest safety integrity requirements, making it suitable for applications such as emergency shutdown systems (ESD) and burner management systems (BMS).
• High Precision and Reliability: With 12-bit resolution and 0.15% accuracy, the module delivers precise signal conversion for critical process monitoring. Its robust design withstands extreme temperatures (-40°C to +70°C) and high vibration (5g), ensuring stability in offshore platforms and refineries.
• Hot-Swap Capability: Faulty modules can be replaced online without system downtime, minimizing maintenance disruptions and improving operational efficiency.
• Comprehensive Diagnostics: Real-time channel-level diagnostics detect anomalies and report faults, enabling proactive maintenance and reducing mean time to repair (MTTR) by 50%.

4. Application Areas and Use Cases

• Industry Applications:
  • Oil & Gas: Monitors pressure, temperature, and flow rates in pipelines, wellheads, and LNG processing facilities.
  • Chemical Processing: Controls reactor parameters (e.g., pH, viscosity) and ensures safe operation of batch processes.
  • Power Generation: Manages turbine performance and generator protective relays in power plants.
• Case Study:
  A large petrochemical plant in the Middle East deployed the TRICONEX 3700A to monitor 200+ analog sensors in its ESD system. The module’s TMR architecture and diagnostics detected a faulty temperature sensor in real time, allowing operators to replace it online without shutting down the entire process. This prevented an estimated $2 million loss in production downtime.

5. Competitive Comparison

1. Safety: Its SIL-3 certification and TMR architecture provide higher fault tolerance than most industry alternatives.
2. Reliability: With a MTBF exceeding 500,000 hours, it offers longer operational stability compared to modules with non-redundant designs.
3. Flexibility: Supports a wider voltage range (0–5 V/0–10 V) and more input channels (32) than many competitors, reducing the need for additional hardware.


   TRICONEX 3700A

6. Selection Recommendations

• System Compatibility: Verify compatibility with your Tricon platform (e.g., CX, EX) and ensure backplane support for TMR modules.
• Input Requirements: Choose between 0–5 V or 0–10 V configurations based on sensor specifications.
• Redundancy Needs: Pair with redundant power supplies and network switches for critical applications to maximize system availability.
• Environmental Conditions: Ensure the module’s temperature and vibration specifications align with your operational environment.

7. Precautions

• Installation: Use anti-static wrist straps during installation to prevent ESD damage. Secure cables to avoid signal interference.
• Configuration: Use TRICONEX’s Tristation 1131 software to configure channels and enable TMR voting logic.
• Maintenance: Regularly review diagnostic status indicators and schedule firmware updates to access the latest security patches.
• Troubleshooting: In case of channel faults, replace modules while the system is in hot-standby mode to avoid downtime.
