Triconex 3511

Description

Deep analysis of Triconex 3511 pulse input module

Product Overview

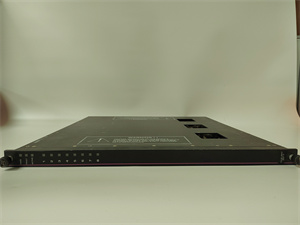

The Triconex 3511 is a high-performance pulse input module designed specifically for Triconex Safety Instrumented Systems(SIS).This module is mainly used to collect pulse signals from various rotating machinery(such as motors,turbines,etc.)and convert them into digital signals for SIS monitoring and control.

Product Features

High precision:Using a high-precision counter to ensure the accuracy of pulse counting.

High reliability:Designed for safety instrumented systems,it has extremely high reliability.

Flexible configuration:Supports multiple pulse input types and counting modes to adapt to different application scenarios.

Modular design:Adopting modular design for easy installation and maintenance.

Safety certification:Complies with international safety standards such as IEC 61508.

Product parameters

Number of input channels:4

Counting frequency:up to 100kHz

Counting mode:unidirectional counting,bidirectional counting

Input type:TTL level,optocoupler isolation

Working temperature:0℃~55℃

Product specifications

Certification:IEC 61508,SIL 3

Protection level:IP20

Reliability:High MTBF

Product series

The Triconex 3511 is part of the Triconex Safety Instrumented System.Triconex SIS is a highly reliable safety system widely used in industries such as petrochemicals,power,and nuclear power.

Product function

Pulse signal acquisition:Collect pulse signals from various rotating machinery.

Speed measurement:Calculate the speed based on the pulse frequency.

Position measurement:Measure the position by counting the number of pulses.

Fault detection:detect abnormal pulse signals,such as stall,overspeed,etc.

Product Usage

Rotating machinery monitoring:monitoring the operating status of rotating machinery such as motors,pumps,fans,etc.

Process control:Measuring parameters such as flow rate and speed in a process control system.

Safety interlock:Monitor the operating status of equipment in the safety interlock system to prevent accidents from occurring.

application area

Petrochemical industry:refineries,petrochemical plants

Electricity:power plants,substations

Nuclear power:Nuclear power plants

Pharmaceutical:Pharmaceutical factory

Food and Beverage:Food Processing Plant

summary

Triconex 3511 is a high-performance pulse input module suitable for applications that require high-precision and high reliability pulse signal acquisition.It plays an important role in safety instrumented systems,providing assurance for the safe operation of industrial production.
