Triconex 3504E

Description

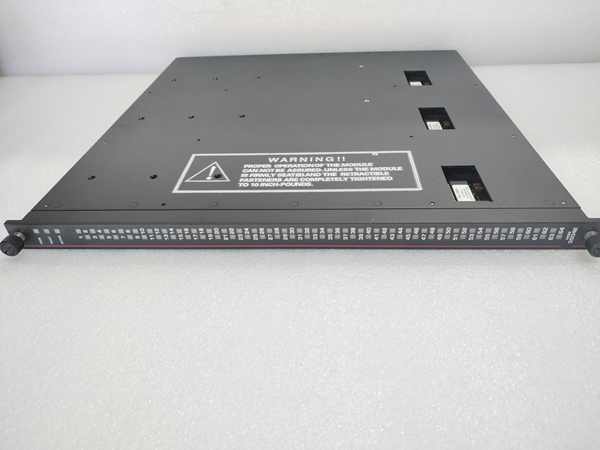

Triconex 3504E high-density digital input module

Product Overview

The Triconex 3504E is a high-density digital input module designed specifically for Triconex Safety Instrumented Systems(SIS).It can provide a large number of digital input channels on a single module,thereby increasing the input density of the system,reducing system costs,and simplifying system design.

3504E TRICONEX

Product Features

High density input:Provides a large number of digital input channels in a compact module,improving system integration.

Flexible input configuration:Supports multiple input types and configuration options to adapt to different application scenarios.

High reliability:Adopting redundant design and fail safe mechanism to ensure stable operation of the system even under extreme conditions.

Compliant with IEC 61508 standard:meets SIL3 level functional safety requirements and is suitable for applications with high safety levels.

Product parameters and specifications

Model:3504E

Input points:usually 32 points or more

Input types:normally open,normally closed,passive,etc

Input voltage:115V AC/DC

Working temperature:Wide range working temperature

Diagnostic functions:self diagnosis,module status monitoring,etc

Product series

The Triconex 3504E is part of the Triconex Safety Instrumented System and is a model in its I/O module series.

3504E TRICONEX

Product function and purpose

Status monitoring:Monitor the operating status of on-site equipment,such as switches,valves,etc.

Fault detection:detect faults in on-site equipment and issue alarm signals.

Safety interlock:Implement safety interlock function to prevent dangerous accidents from occurring.

Process control:As an input signal of the process control system,it participates in the control of the production process.

application area

Petrochemical:Safety control and status monitoring in the production process of petrochemical industry.

Electricity:Safety control and status monitoring of power plants and substations.

Metallurgy:Safety control and status monitoring of metallurgical production processes.

Pharmaceutical:Safety control and status monitoring in the pharmaceutical production process.

Product advantages

High density integration:reduces the required number of modules and lowers system costs.

Flexible configuration:adaptable to various application scenarios.

High reliability:Ensure the safe and stable operation of the system.

Easy to maintain:Provides detailed diagnostic information for easy maintenance.

matters needing attention

Installation:The installation must be carried out according to the Triconex system installation manual.

Configuration:Proper configuration is required in the Triconex system,including input type,filtering,and other parameters.

Maintenance:Regularly inspect and maintain to ensure the normal operation of the module.

3504E TRICONEX

summary

The Triconex 3504E high-density digital input module is a very important component in the Triconex safety instrumented system.
