Description
TRICONEX 3503EC1 is a high-performance digital input module designed for industrial automation systems, delivering reliable and secure signal processing in critical applications. As a core component of TRICONEX’s triple modular redundancy (TMR) platform, the
3503EC1 is engineered to meet the rigorous demands of safety-critical environments, such as oil and gas, chemical processing, and power generation. This module is built to interface with discrete sensors and switches, providing accurate and noise-immune digital input signals to the Tricon controller. The
TRICONEX 3503EC1 ensures seamless integration with TRICONEX’s fault-tolerant architecture, enabling industries to maintain operational continuity while adhering to the highest safety standards.
| Parameter |
Details |
| Signal Type |
Digital Input (DI), 24 V DC / 120 V AC (selectable) |
| Channels |
16 isolated channels |
| Voltage Range |
16-30 V DC / 90-150 V AC |
| Contact Type |
Dry contacts or solid-state signals |
| Response Time |
<5 ms (typ.) |
| Redundancy Support |
TMR (Triple Modular Redundancy) |
| Operating Temperature |
-40°C to +70°C |
| Certification |
CE, FM, CSA, ATEX, IECEx (hazardous area approved) |
| Dimensions |
102 mm (W) x 178 mm (H) x 64 mm (D) |

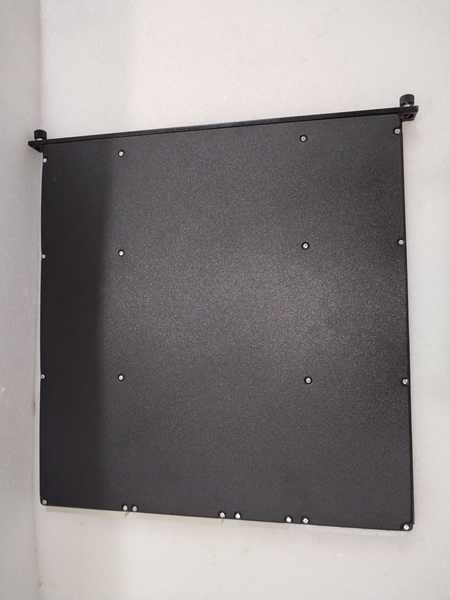

TRICONEX 3503EC1
The TRICONEX 3503EC1 stands out for its TMR architecture, which triples all critical components and uses a voting mechanism to eliminate single-point failures, achieving SIL 3 compliance (IEC 61508). Key features include:
- Dual Voltage Compatibility: Supports both DC and AC input signals, reducing the need for multiple module types in mixed-signal environments.
- Galvanic Isolation: Each channel is electrically isolated to protect against surges and ground loops, ensuring signal integrity even in high-noise industrial settings.
- Hot Swappable: Enables maintenance without system shutdown, minimizing downtime by allowing modules to be replaced while the system remains operational.
- Advanced Diagnostics: Built-in self-testing (BIST) continuously monitors channel health, reporting faults with <10 ms latency for proactive maintenance.
The 3503EC1 is ideal for industries requiring reliable discrete signal monitoring, including:
- Oil & Gas: Valve position sensing, emergency shutdown (ESD) systems, and pump status monitoring.
- Manufacturing: Machine safety interlocks, conveyor system control, and quality control checkpoints.
- Utilities: Substation automation, boiler control, and turbine protection systems.
Case Study: A major petrochemical plant in the Middle East deployed TRICONEX 3503EC1 modules to monitor over 200 safety interlocks in their refining units. The module’s TMR design and noise immunity reduced false trips by 85%, while its hot-swappable feature cut maintenance time by 60%, leading to an annual productivity gain of $1.2 million.
Compared to standard digital input modules, the
TRICONEX 3503EC1 offers superior
safety integrity (SIL 3 vs. typical SIL 2) and
operational flexibility (dual voltage support in a single module). Its TMR architecture provides a mean time to failure (MTTF) of over 100,000 hours, significantly outperforming non-redundant 竞品. The module’s compact design (16 channels in a single unit) also optimizes cabinet space compared to competitors offering fewer channels per module.

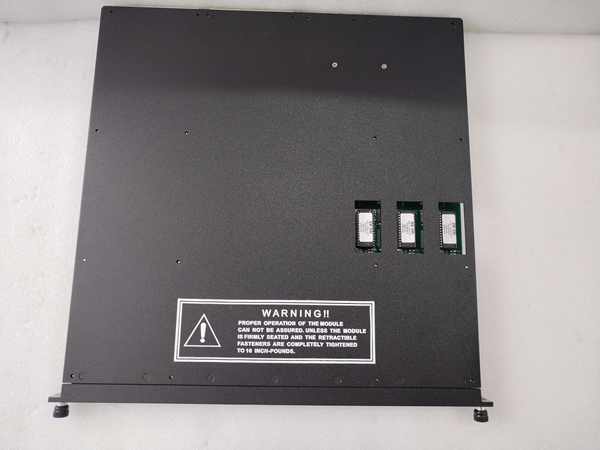

TRICONEX 3503EC1
When choosing the TRICONEX 3503EC1, consider:
- Voltage Requirements: Confirm whether your application uses DC or AC signals to leverage the module’s dual-input capability.
- Safety Level: Ensure SIL 3 compliance aligns with your process safety requirements (e.g., IEC 61511 for process industries).
- Environmental Demands: Evaluate temperature, vibration, and EMI exposure to ensure the module’s rugged design is suitable for your site.
- Scalability: Assess current and future I/O needs to avoid over-provisioning or under-sizing channel capacity.
- Wiring Practices: Use shielded cables and follow TRICONEX’s guidelines for separating signal and power wiring to minimize interference.
- Grounding: Properly ground the module and system to comply with safety standards and prevent electrostatic discharge (ESD).
- Firmware Management: Regularly update firmware to address security vulnerabilities and optimize performance.
- Hazardous Environments: Install the module in certified enclosures and follow ATEX/IECEx guidelines for use in explosive atmospheres.
