AIH3273X

Description

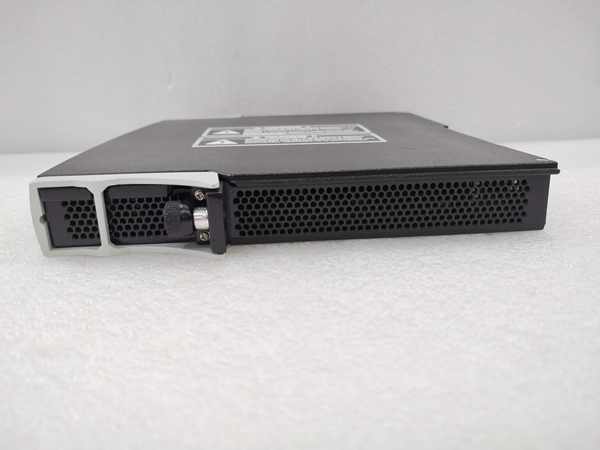

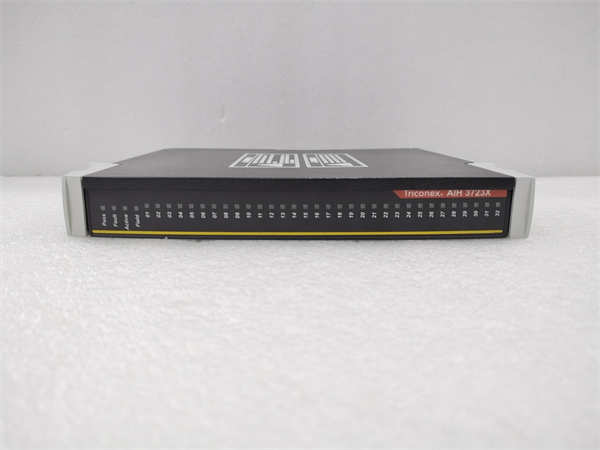

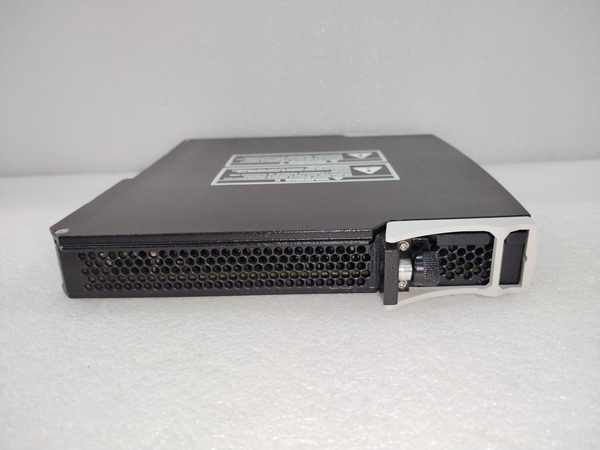

AIH3273X TRICONEX Analog Input Module TRICONEX AIH3273X Product Overview

summary

TRICONEX AIH3273X is an analog input module used for Honeywell Triconex Safety Instrumented Systems(SIS).It aims to collect analog signals from the field,such as temperature,pressure,flow rate,etc.,and convert them into digital signals for processing and control by the Triconex system.

main features

High precision:Provides high-precision analog signal acquisition to ensure the accuracy of the control system.

High reliability:Adopting redundant design and fault detection mechanism to ensure the stable operation of the system.

Modular design:easy to install and maintain,and convenient for system expansion.

Wide input range:Supports multiple types of analog signal inputs,such as 4-20mA,0-10V,etc.

Digital filtering:Built in digital filtering function,suppresses noise,and improves signal quality.

Self diagnostic function:capable of self diagnosis and timely detection of faults.

technical parameter

Input type:Analog input(such as 4-20mA,0-10V)

Accuracy:±0.1%FS or higher

Resolution:16 bits or higher

Sampling rate:configurable

Isolation:Digital Isolation

Power supply:24VDC

Installation method:DIN rail installation

AIH3273X TRICONEX

Series and Features

Triconex series:part of Honeywell’s Triconex series safety instrumented systems

AIH series:represents analog input module

Modular design:easy to use in combination with other Triconex modules

Redundancy Design:Improving System Reliability

Configurability:Supports multiple configuration options to meet different application needs

Function and Application

Signal acquisition:Collect analog signals from the field,such as temperature,pressure,flow rate,etc.

Data conversion:Convert analog signals into digital signals for processing by the Triconex system.

Process monitoring:used for real-time monitoring and control of process variables.

Safety interlock:As a part of the safety interlock system,it is used to detect dangerous states.

AIH3273X TRICONEX

application area

TRICONEX AIH3273X is widely used in various industrial fields,such as:

Petrochemical industry:monitoring process parameters such as temperature,pressure,and flow rate.

Power industry:monitoring electrical parameters such as voltage,current,and power.

Chemical industry:monitoring reactor temperature,material concentration,etc.

Metallurgical industry:monitoring furnace temperature,material level,etc.

summary

The Triconex AIH3273X analog input module is an essential part of the Triconex safety instrumented system,providing reliable analog signal acquisition capabilities for the system.
