8311N TRICONEX

Description

1. Product Description

• Digital Output Control: Provides 16 isolated solid-state relay (SSR) outputs for driving actuators, valves, and other field devices in safety instrumented systems (SIS), emergency shutdown (ESD) systems, and burner management systems (BMS).
• Loop-Back Diagnostics: Continuously monitors output signals through feedback loops to detect faults in field wiring or connected devices, ensuring rapid isolation of failures.
• Hot-Swap Capability: Allows replacement of faulty modules without powering down the system, minimizing maintenance disruptions in critical processes.
• Environmental Resilience: Withstands extreme temperatures (-40°C to +70°C), electromagnetic interference (EMI), and voltage surges, making it suitable for harsh industrial settings.

2. Product Parameters

Parameter	Specification
Module Type	Digital Output Module for TMR systems
Power Supply	24V DC (±15%), isolated
Output Channels	16 × solid-state relays (SSR), 2A per channel
Output Voltage	24V DC (other voltages available upon request)
Redundancy	Triple Modular Redundancy (TMR) with 2-out-of-3 voting
Operating Temperature	-40°C to +70°C (storage: -50°C to +85°C)
Humidity	5%–95% non-condensing
SIL Certification	SIL-3 (IEC 61508)
Compatibility	TRICONEX Triplex control systems, Tricon Vx platforms

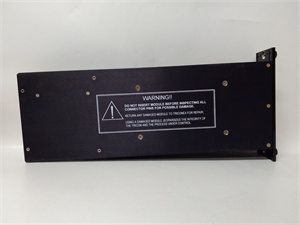

TRICONEX 8311N

3. Advantages and Features

• TMR Technology: The TRICONEX 8311N leverages triple modular redundancy to provide fault tolerance, ensuring system continuity even if one channel fails. This design achieves a mean time between failures (MTBF) exceeding 250,000 hours, significantly reducing unplanned downtime by minimizing single-point failure risks.
• Loop-Back Diagnostics: Real-time feedback loops detect faults in field wiring or connected devices, enabling proactive maintenance. This feature reduces troubleshooting time by up to 50% compared to modules without built-in diagnostics, allowing technicians to address issues before they escalate.
• Hot-Swappable Design: Technicians can replace the module without powering down the system, cutting maintenance time by up to 60% compared to non-redundant alternatives. This is critical for maintaining uptime in mission-critical applications where even brief interruptions can cause significant losses.
• Environmental Durability: Its ruggedized design resists EMI, extreme temperatures, and voltage surges, ensuring stable performance in harsh industrial settings such as offshore platforms, chemical plants, or heavy manufacturing facilities with high vibration or corrosive conditions.
• SIL-3 Certification: Compliant with IEC 61508 standards, the TRICONEX 8311N is suitable for applications requiring the highest safety integrity levels, providing confidence in its ability to perform reliably in hazardous processes.

4. Application Areas and Application Cases

• Industry Applications:
  • Oil & Gas: Used in remote wellhead monitoring, offshore platform ESD systems, and pipeline safety controls to actuate emergency valves and ensure safe shutdowns during abnormal conditions.
  • Chemical Processing: Controls distributed reactor safety interlocks, hazardous material handling systems, and batch process actuators, ensuring precise control and fail-safe operation.
  • Power Generation: Supports turbine protection systems, generator circuit breakers, and boiler safety relays, contributing to grid stability and preventing catastrophic failures.
• Case Study:
  A large petrochemical plant integrated the TRICONEX 8311N into its SIS to manage emergency shutdown valves for a high-pressure distillation column. During routine operation, the module’s loop-back diagnostics detected a gradual decline in signal integrity from a field actuator due to a loose connection. The TMR architecture allowed the system to continue operating using the redundant channels while maintenance teams replaced the faulty component during a planned outage, avoiding an unplanned shutdown that could have cost over $1.5 million in lost production.

5. Competitive Comparison

Compared to similar industrial digital output modules, the TRICONEX 8311N distinguishes itself through its combination of TMR redundancy and advanced loop-back diagnostics. While some alternatives offer basic output control, few provide the same level of fault tolerance or real-time health monitoring, which are critical for safety-critical applications. Its SIL-3 certification and rugged environmental performance also make it a more reliable choice for industries where equipment failure could lead to safety hazards or significant financial losses, outperforming modules with lower safety ratings or limited diagnostic capabilities.

6. Selection Recommendations

• System Compatibility: Ensure the TRICONEX 8311N is compatible with your existing TRICONEX control platform, such as Tricon or Trident systems, and verify that firmware versions are up-to-date to avoid integration issues.
• Output Requirements: Confirm the module’s 2A per-channel current capacity and 24V DC output voltage match the specifications of your field devices, such as solenoid valves or contactors, to ensure proper operation.
• Environmental Conditions: Assess the installation site’s temperature, humidity, and exposure to EMI or vibration to ensure they fall within the module’s rated ranges, particularly for harsh environments like offshore rigs or steel mills.
• Safety Compliance: For applications requiring SIL-3 certification, such as those governed by IEC 61508, ensure the TRICONEX 8311N meets both regulatory and project-specific safety requirements.

7. Precautions

• Installation: Power down the system and use anti-static wrist straps during installation to prevent electrostatic discharge (ESD) damage. Secure cables properly to minimize EMI and ensure all connections are tight to avoid signal loss or intermittent faults.
• Maintenance: Regularly review the module’s diagnostic status through the control system interface to monitor channel health and detect early signs of wear or wiring issues. Schedule periodic inspections, especially in high-vibration environments, to check for loose connections or physical damage.
• Firmware Management: Update firmware using TRICONEX-approved software tools to access the latest performance optimizations and security patches, ensuring long-term compatibility and reliability.
• Troubleshooting: In the event of a fault, use the module’s loop-back diagnostics to identify the root cause before replacing components. When replacing a module, follow hot-swap procedures carefully to avoid disrupting system operation, and validate functionality after installation to ensure proper configuration.
