3201 TRICONEX

Description

1. Product Description

2. Product Parameters

Parameter	Details
Communication Protocols	Modbus TCP/IP, RS485, Ethernet, and custom protocols via software configuration.
Redundancy	TMR architecture with automatic fault detection and failover.
Interfaces	2x Ethernet ports, 2x RS485 ports, and 1x USB port for diagnostics.
Safety Integrity Level	SIL 3 (IEC 61508 certified).
Power Supply	24V DC ±10% (redundant power input supported).
Operating Temperature	-40°C to +70°C (storage: -40°C to +85°C).
Humidity	5–95% non-condensing.
Dimensions	22 cm x 16.9 cm x 4.4 cm (8.66″ x 6.65″ x 1.73″).
Weight	5 kg (11 lb).
Certifications	ATEX, IECEx, and CSA for hazardous environments.

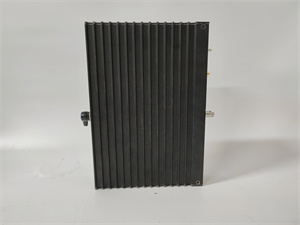

TRICONEX 3201

3. Advantages and Features

• Triple Modular Redundancy (TMR):
  The TRICONEX 3201’s TMR architecture ensures continuous operation by voting signals across three independent communication channels. This design eliminates downtime risks, achieving a mean time between failures (MTBF) exceeding 200,000 hours.
• Flexible Protocol Support:
  With native support for Modbus, Ethernet, and RS485, the module simplifies integration with diverse systems. For example, it can connect TRICONEX safety systems to Foxboro DCS or Honeywell SCADA platforms without additional gateways.
• Real-Time Diagnostics:
  Built-in health monitoring detects communication errors, voltage fluctuations, and temperature 异常 in real time. Faults are reported within 1 ms, allowing proactive maintenance and minimizing unplanned shutdowns.
• Rugged Environmental Performance:
  Rated for extreme temperatures and resistant to vibration and electromagnetic interference (EMI), the TRICONEX 3201 operates reliably in offshore platforms, refineries, and other harsh industrial settings.

4. Application Areas and Application Cases

• Oil and Gas:
  Connects emergency shutdown (ESD) systems to subsea wellheads and pipeline monitoring systems for remote control and data logging.
• Chemical Processing:
  Integrates reactor safety systems with batch control systems to ensure precise process monitoring and compliance with safety standards.
• Power Generation:
  Enables communication between gas turbine control systems and grid management platforms for optimized energy distribution.

5. Competition-related Comparison

• Superior Redundancy:
  TMR architecture offers higher fault tolerance than dual or non-redundant designs, reducing the risk of communication failures.
• Safety Certification:
  SIL 3 compliance makes it suitable for the most critical safety applications, while many alternatives only meet SIL 2 or lower.
• Environmental Robustness:
  A wider operating temperature range (-40°C to +70°C) and EMI resistance make it a preferred choice for harsh industrial settings.
• Protocol Flexibility:
  Supports more communication protocols out-of-the-box, reducing the need for additional hardware or software conversions.


  TRICONEX 3201

6. Selection Suggestions

• Safety Requirements:
  Choose the TRICONEX 3201 for applications requiring SIL 3 certification, such as ESD, SIS, or fire and gas systems.
• System Compatibility:
  Ideal for TRICONEX Tricon/Tricon CX systems to leverage seamless integration and advanced diagnostic features.
• Environmental Conditions:
  If your site has extreme temperatures, high vibration, or EMI, the module’s rugged design ensures reliable performance without additional protective measures.
• Communication Needs:
  For complex systems requiring multiple protocols (e.g., Modbus and Ethernet), the TRICONEX 3201 simplifies integration and reduces hardware costs.

7. Precautions

• Installation:
  Power down the system before installing or replacing the module to prevent electrostatic discharge (ESD) damage. Use shielded cables and follow grounding guidelines to minimize EMI.
• Maintenance:
  Regularly monitor communication status via the TRICONEX system interface. Replace faulty ports or cables promptly to maintain redundancy.
• Firmware Updates:
  Keep the module’s firmware updated using official tools to ensure access to the latest security patches and protocol enhancements.
• Load Matching:
  Verify that the communication load (e.g., data throughput) matches the module’s specifications to avoid signal distortion or hardware damage.
