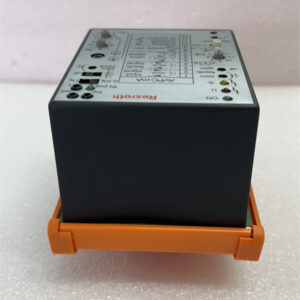

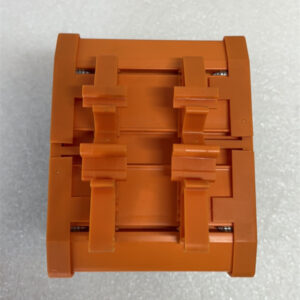

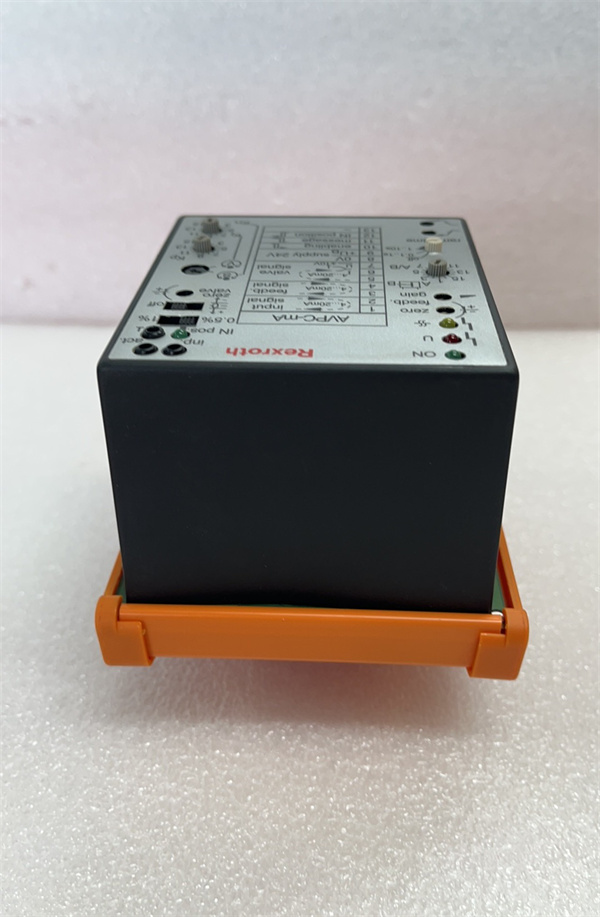

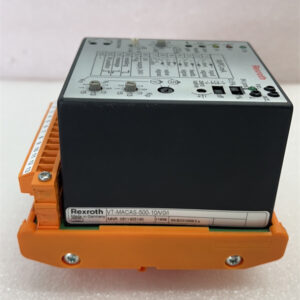

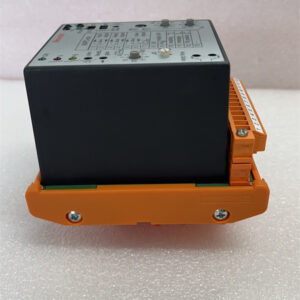

VT-MACAS-500-10/V0/I

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Model	VT-MACAS-500-10/V0/I
Brand	REXROTH
Type	Hydraulic Control Module
Input Voltage	24 VDC ±10%
Power Consumption	≤5 W
Input Signals	Analog (0-10 V, 4-20 mA) / Digital (TTL)
Output Signals	Analog (0-10 V, 4-20 mA)
Communication Interface	RS-485 (Modbus RTU)
Control Accuracy	±0.5% of full scale
Operating Temperature	-20°C to +60°C
Protection Class	IP20 (indoor use)
Weight	0.8 kg

VT-MACAS-500-10/V0/I

3. Advantages and Features

• High Precision Control: Achieves ±0.5% accuracy in signal conversion, critical for applications requiring tight hydraulic control, such as CNC machines or robotic arms.
• Flexible I/O Configuration: Supports multiple analog and digital signal formats, reducing the need for additional converters and simplifying system integration.
• Robust Error Handling: Includes built-in diagnostic functions that monitor voltage levels, temperature, and signal integrity, providing early warnings for potential issues and minimizing downtime.
• Wide Operating Range: Functions reliably across a broad temperature spectrum (-20°C to +60°C), making it suitable for both indoor and outdoor industrial environments.

4. Application Areas and Case Study

• Manufacturing: CNC machining centers, press systems, and assembly lines.
• Energy: Hydraulic power units in wind turbines and industrial pumps.
• Construction Machinery: Excavators, loaders, and material handling equipment.

5. Competitive Comparison

When compared to similar hydraulic control modules on the market, the REXROTH VT-MACAS-500-10/V0/I distinguishes itself through its superior accuracy, flexible signal compatibility, and robust diagnostic capabilities. Unlike some alternatives, it offers a wider temperature tolerance and easier integration with REXROTH’s comprehensive motion control ecosystem, ensuring seamless compatibility with existing hardware and software. Its balanced combination of performance, durability, and cost-effectiveness makes it a preferred choice for both retrofitting older systems and designing new automation setups.

VT-MACAS-500-10/V0/I

6. Selection Recommendations

• Compatibility: Ensure the module’s input/output signals match your control system’s requirements (e.g., analog vs. digital, voltage/current ranges).
• Environmental Conditions: Verify the operating temperature, humidity, and protection class to suit your installation environment (e.g., indoor vs. outdoor, high-dust areas).
• Control Precision Needs: If your application requires sub-1% accuracy for hydraulic positioning, this module’s ±0.5% precision makes it an excellent fit.
• System Integration: Prioritize compatibility with your existing automation architecture, especially if using REXROTH components, to leverage seamless communication and simplified programming.

7. Precautions

• Electrical Safety: Disconnect power before installing or servicing the module to prevent electric shock or damage.
• Cable Installation: Use shielded cables for signal connections to minimize electromagnetic interference (EMI), especially in high-power environments.
• Calibration: Perform initial calibration using the manufacturer’s software to match your specific hydraulic system parameters.
• Regular Maintenance: Periodically check for loose connections, temperature fluctuations, and software updates to maintain peak performance.
• Environmental Protection: If used in dusty or humid environments, consider additional enclosures to meet IP65 or higher protection standards, even though the module itself is rated IP20.
