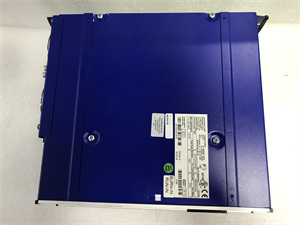

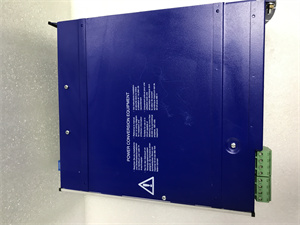

Product Specification: Kollmorgen SERVOSTAR TM620 S62000 Motion Controller
Kollmorgen SERVOSTAR TM620 S62000 is a high-performance motion controller designed for precision automation and multi-axis control systems. Engineered for industrial applications requiring dynamic responsiveness and accuracy, this controller integrates advanced algorithms and robust connectivity to optimize machine performance.
The
SERVOSTAR TM620 S62000 is part of Kollmorgen’s SERVOSTAR series, renowned for its ability to synchronize complex motion profiles. It supports real-time trajectory planning, velocity/position/torque control, and multi-axis synchronization, making it ideal for robotics, semiconductor manufacturing, and CNC machinery. With built-in safety features like STO (Safe Torque Off) and compatibility with EtherCAT/CANopen protocols, the controller ensures reliable operation in demanding environments.
| Parameter |
Specification |
| Input Voltage |
230–480 VAC, 3-phase |
| Power Rating |
10–14 kVA (model-dependent) |
| Output Current |
25–35 A continuous, 75–105 A peak (model-dependent) |
| Control Modes |
Position, velocity, torque, and electronic gearing |
| Communication Protocols |
EtherCAT, CANopen, RS-232/485 |
| Feedback Interfaces |
Resolver, encoder (SSI, EnDat, BiSS), incremental encoder |
| Protection Features |
Overvoltage, overcurrent, overtemperature |
| Dimensions |
760 mm × 196 mm × 215 mm (W × H × D) |
| Weight |
~3.2 kg |
- High Dynamic Response: With a velocity loop update rate of 62.5 μs, the SERVOSTAR TM620 S62000 ensures precise tracking of high-speed motion profiles.
- Flexible Expansion: Supports modular expansion cards for additional I/O, fieldbus connectivity (e.g., Profibus, DeviceNet), and safety functions.
- Energy Efficiency: Built-in regenerative braking reduces energy consumption, making it suitable for energy-sensitive applications.
- Reliability: Compliant with EN 60204-1 safety standards and UL/CE certifications, ensuring long-term durability in harsh environments.
- Semiconductor Manufacturing: Used in wafer handling systems for sub-micron positioning accuracy.
- Robotics: Integrates with robotic arms for synchronized multi-axis movements in assembly lines.
- Medical Equipment: Enables precise motion control in surgical robots and diagnostic devices.
- Case Study: A leading medical device manufacturer reduced cycle times by 30% using the SERVOSTAR TM620 S62000 in a robotic imaging system, improving throughput while maintaining accuracy.
Compared to similar motion controllers, the SERVOSTAR TM620 S62000 offers superior power density and a broader range of communication protocols, reducing integration complexity. Its advanced safety features and modular design also provide a competitive edge in applications requiring high reliability.
- Compatibility: Verify motor and encoder compatibility with the controller’s feedback interfaces.
- Power Requirements: Ensure the input voltage and power rating match the application’s needs.
- Expansion Needs: Consider additional I/O or fieldbus cards for complex system requirements.
- Budget: Balance performance needs with cost, noting that higher power models (e.g., 14 kVA) may require larger investments.
- Installation: Follow the manual’s guidelines for proper grounding and cable routing to prevent EMI interference.
- Cooling: Ensure adequate ventilation for models without integrated fans (e.g., S62000-FAN variant).
- Software Updates: Regularly update firmware to access new features and performance optimizations.
- Safety Compliance: Use STO functionality and emergency stop circuits as required by local safety standards.
山西鑫业达国际贸易有限公司 is your trusted partner for
Kollmorgen SERVOSTAR TM620 S62000 and other automation components. Visit
www.xydcontrol.com for sales and technical support.
