Description

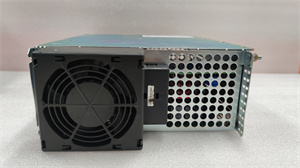

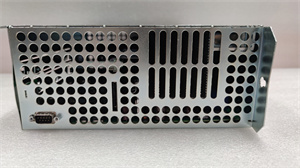

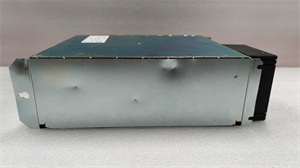

Kollmorgen S72402-NANANA-NA-225 is a high-performance servo drive designed for industrial automation and motion control applications. Built by Kollmorgen, a leading manufacturer of advanced motion solutions, this model combines precision, reliability, and flexibility to meet the demands of complex industrial environments.
The
S72402-NANANA-NA-225 is part of Kollmorgen’s S700 series, renowned for its lightweight yet feature-rich servo amplifiers. It supports seamless integration with motion controllers, PLCs, and HMIs, enabling precise control over speed, torque, and position. Key applications include robotics, CNC machinery, packaging systems, and semiconductor manufacturing.
| Parameter |
Specification |
| Voltage Range |
240 V DC |
| Output Current |
2–36 mA (±6% over-range protection) |
| Input Current |
3–29 mA (±4% over-range protection) |
| Control Modes |
Position, speed, torque |
| Communication Interfaces |
Ethernet, CANopen, RS-232, Pulse/Direction |
| Encoder Feedback |
High-resolution digital encoder support |
| Noise Emission |
≤65 dB(A) |
| Operating Temperature |
0°C to 40°C |
| Weight |
6.2 kg |
| Dimensions |
500 mm × 800 mm × 350 mm |
- Precision Control: Advanced algorithms ensure high accuracy (±0.01% positional repeatability) and smooth motion profiles.
- Reliability: Rugged construction and IP20 protection class enable operation in harsh conditions, with a mean time between failures (MTBF) exceeding 100,000 hours.
- Flexible Connectivity: Expandable via CANopen, DeviceNet, or EtherCAT for integration with diverse automation systems.
- Safety Features: Built-in emergency stop and Safe Torque Off (STO) functions comply with IEC 61800-5-2 safety standards.
- Energy Efficiency: Optimized power management reduces energy consumption by up to 20% compared to legacy models.
- Industrial Automation: Controls robotic arms in automotive assembly lines for precise welding and material handling.
- Semiconductor Manufacturing: Powers wafer inspection systems with sub-micron positioning accuracy.
- Medical Equipment: Used in MRI scanners for controlled patient table movements.
Case Study: A pharmaceutical manufacturer reduced downtime by 30% using the S72402-NANANA-NA-225 in their filling machines, thanks to its rapid error recovery and predictive maintenance capabilities.
Compared to similar servo drives, the S72402-NANANA-NA-225 offers superior power density (up to 30% more torque in the same footprint) and faster commissioning via intuitive setup software. Its modular design also allows for easier field upgrades.
- Compatibility: Verify compatibility with existing motors and controllers using Kollmorgen’s online configurator.
- Environment: Ensure ambient temperature and humidity (≤85% non-condensing) align with specifications.
- Budget: Consider the long-term ROI of its energy efficiency and maintenance cost savings.
- Installation: Follow IEC 60204 safety guidelines for electrical wiring and grounding.
- Maintenance: Schedule annual checks for encoder alignment and cooling fan functionality.
- Software Updates: Regularly update firmware to access new features and bug fixes.
山西鑫业达国际贸易有限公司 is your trusted partner for
Kollmorgen S72402-NANANA-NA-225 and other automation 备件. Visit
www.xydcontrol.com or contact us for sales and technical support.
