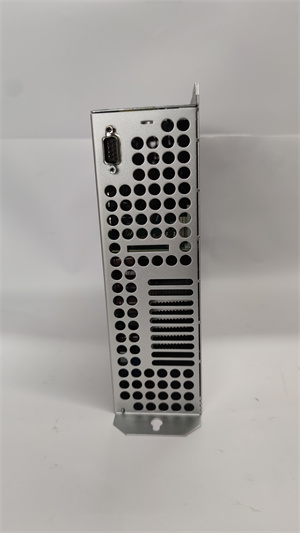

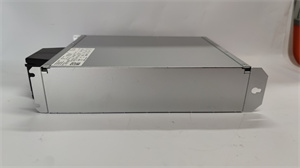

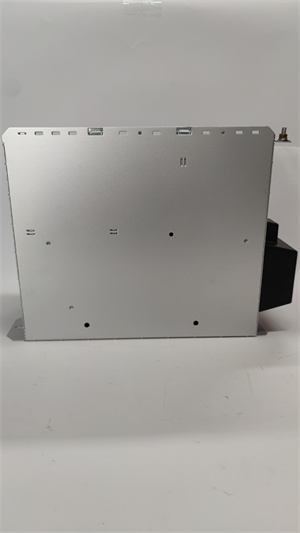

Product Specification: KOLLMORGEN S70602-PBNANA Servo Drive
KOLLMORGEN S70602-PBNANA is a high-performance servo drive designed for industrial automation applications, offering precision control and reliability in demanding environments. Part of the S700 series, this drive combines advanced motion control capabilities with robust safety features, making it suitable for machinery, robotics, and manufacturing systems.
The
S70602-PBNANA is engineered to deliver efficient power management and seamless integration with automation systems. It supports 208–480V three-phase AC power at 50/60Hz, providing an RMS output current of 6,000mA and a peak current of 18,000mA (sustained for up to 5 seconds). The drive’s dual-channel Safety Torque Off (STO) function meets ISO 13849-1 Cat 3 and IEC 62061 SIL CL 2 certifications, ensuring safe operation in critical applications.
| Parameter |
Specification |
| Input Voltage |
208–480V three-phase AC |
| Frequency |
50/60Hz |
| Output RMS Current |
6,000mA |
| Peak Current |
18,000mA (5-second duration) |
| DC Bus Voltage |
Up to 900V |
| Communication Interfaces |
EtherCAT, CANopen, Profibus (via expansion) |
| Safety Certifications |
ISO 13849-1 Cat 3, IEC 62061 SIL CL 2 |
| Feedback Support |
Incremental encoders, BiSS sine encoders, resolvers |
| Operating Temperature |
0–45°C |
| Storage Temperature |
-25–55°C |
- High Precision: Advanced control algorithms enable precise speed and position regulation, ideal for high-accuracy machinery.
- Flexible Communication: Supports multiple protocols (EtherCAT, CANopen, Profibus) for seamless integration with PLCs and HMIs.
- Safety Compliance: Single-channel STO ensures rapid torque shutdown, reducing downtime and enhancing operator safety.
- Wide Compatibility: Works with various motor feedback technologies, including incremental encoders and resolvers.
- Compact Design: Space-efficient layout simplifies installation in confined industrial environments.
Industry Applications:
- Robotics and automated assembly lines
- CNC machines and printing presses
- Material handling systems
- Packaging and semiconductor manufacturing
Case Study:
A leading automotive manufacturer integrated S70602-PBNANA drives into their robotic welding cells. The drives’ high torque capacity and rapid response times improved cycle efficiency by 15%, while STO compliance minimized safety risks during maintenance.
Compared to similar servo drives, the S70602-PBNANA offers a 20% higher peak current capacity and broader protocol support, reducing integration complexity. Its built-in safety features eliminate the need for external modules, lowering system costs by up to 10%.
- Voltage Compatibility: Ensure alignment with your system’s power supply (208–480V AC).
- Feedback Type: Verify compatibility with your motor’s encoder/resolver technology.
- Safety Requirements: Confirm compliance with regional safety standards (e.g., SIL 2 for EU applications).
- Installation: Follow ESD protection guidelines and secure proper ventilation to prevent overheating.
- Software Updates: Regularly update firmware via the RS-232 port (X8) using Kollmorgen’s Drive GUI.
- Maintenance: Schedule annual checks to validate thermal dissipation and safety function integrity.
山西鑫业达国际贸易有限公司 (Shanxi Xinyeda International Trade Co., Ltd.) is your trusted partner for
KOLLMORGEN S70602-PBNANA and other automation spare parts. Visit
www.xydcontrol.com or contact us for sales and technical support.
