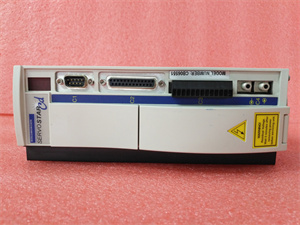

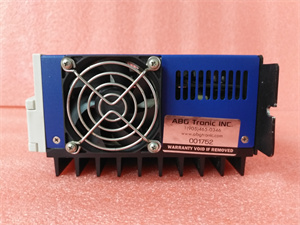

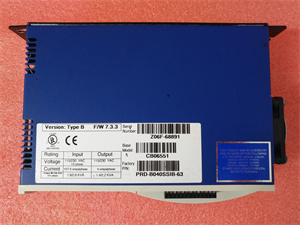

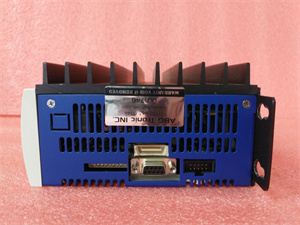

Kollmorgen CB06551

Description

1. Product Description

2. Product Parameters

3. Advantages and Features

• Multi – Protocol Support: The ability to support both Modbus RTU and CANopen protocols is a major advantage. This allows the CB06551 to communicate with a diverse range of devices in an industrial network. For example, in a factory where some legacy devices use Modbus RTU and newer ones use CANopen, the CB06551 can bridge the communication gap without the need for additional conversion devices.
• Flexible Connectivity Options: With RS – 232, RS – 485, and CANopen interfaces, the module can be easily integrated into existing systems. RS – 232 is commonly used for simple point – to – point connections, while RS – 485 is suitable for longer – distance and multi – drop communication. CANopen provides high – speed and reliable communication in distributed systems.
• Compact Design: Its small size (120 mm x 90 mm x 25 mm) and light weight (0.3 kg) make it easy to install in space – constrained environments. This is especially beneficial in modern industrial machines where every bit of space counts.
• Low Power Consumption: Consuming less than 3 W of power, the CB06551 is energy – efficient. This not only reduces operating costs but also generates less heat, contributing to the overall reliability of the system.

4. Application Areas and Application Cases

• Manufacturing Industry: In manufacturing plants, the CB06551 is used to connect servo drives with PLCs for precise control of production lines. For example, in an automotive assembly line, it can ensure that robotic arms move with high precision by enabling real – time communication between the servo drives of the robots and the central control system.
• Robotics: In robotic applications, the module facilitates communication between the robot’s control unit and its servo – driven joints. A case study shows that a research laboratory developing a humanoid robot used the CB06551 to achieve smooth and coordinated movement of the robot’s limbs. The module’s multi – protocol support allowed seamless integration with different sensors and actuators in the robot.
• Packaging Industry: In packaging machines, the CB06551 helps in synchronizing the movement of various components such as conveyors, filling machines, and labeling devices. A packaging company reported a 15% increase in production efficiency after integrating the CB06551 into their packaging line, as it improved the communication and coordination between different parts of the machine.

•

5. Competitor Comparison

• Protocol Versatility: Many competing modules support only one or two communication protocols. In contrast, the CB06551’s ability to support both Modbus RTU and CANopen gives it a significant edge, as it can be used in a wider range of industrial setups without the need for additional protocol converters.
• Connectivity Options: Some competitors may lack one or more of the communication interfaces (RS – 232, RS – 485, CANopen) offered by the CB06551. This restricts their flexibility in integration. The CB06551’s comprehensive set of interfaces allows for easy connection to different types of devices and systems.
• Power Efficiency: Compared to some competing products, the CB06551 consumes less power. This is an important factor for industries aiming to reduce their energy consumption and carbon footprint.

6. Selection Recommendations

• Compatibility: Ensure that the CB06551 is compatible with your existing servo drives, especially if they are from the AKD series. Also, check the compatibility with the PLCs and other control devices in your system.
• Protocol Requirements: Evaluate your industrial network’s communication protocol needs. If your system uses both Modbus RTU and CANopen, the CB06551 is an ideal choice. If you have specific requirements for a particular protocol, make sure the module can support it.
• Installation Space: Consider the available space in your industrial machine or control cabinet. The CB06551’s compact design makes it suitable for tight spaces, but if space is not an issue, you may also consider other factors more heavily.
• Budget: While the CB06551 offers many advantages, compare its cost with your budget. Consider the long – term benefits such as energy savings, reduced downtime due to reliable communication, and ease of integration when making a cost – benefit analysis.

7. Precautions

• Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding to prevent electrical interference. Use appropriate cables for each communication interface to ensure reliable data transmission.
• Environmental Conditions: Keep the operating temperature and humidity within the specified ranges (0°C to 55°C for operation and – 20°C to 70°C for storage, 5% to 95% non – condensing humidity). Extreme environmental conditions can damage the module and affect its performance.
• Maintenance: Regularly check the module for any signs of physical damage, loose connections, or overheating. Clean the module periodically to remove dust and debris. If any issues are detected, refer to the user manual or contact Kollmorgen’s technical support.
