CC-PAIH02 51405038-375

Description

Honeywell CC-PAIH02 51405038-375 HART Analog Input Module Detailed Explanation

Product Overview

Honeywell CC-PAIH02 51405038-375 is a high-performance HART protocol analog input module mainly used for collecting and processing analog signals in industrial automation systems.This module has the characteristics of high precision,high reliability,and easy configuration,and is widely used in fields such as process control and data acquisition.

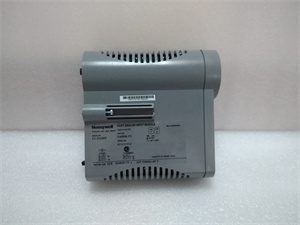

CC-PAIH02 51405038-375 HONEYWELL

Product Features

HART protocol support:Supports HART protocol and can simultaneously collect analog data and intelligent information of HART devices.

High precision:It has high measurement accuracy and can accurately collect analog signals.

Multi channel:A single module can support multiple channels,improving system integration.

Flexible configuration:Provides rich configuration options that can be flexibly configured according to different application needs.

High reliability:Adopting industrial grade design,suitable for harsh industrial environments.

Easy to install:Modular design,easy to install.

Product parameters

Model:CC-PAIH02 51405038-375

Input signal:4-20mA or 0-10V

Accuracy:±0.1%FS

Sampling rate:configurable

Isolation:Digital Isolation

Power supply:24VDC

Working temperature:-20℃~60℃

Product specifications

Electrical characteristics:working voltage,current,signal range,etc

Environmental characteristics:working temperature,humidity,seismic performance,etc

Product series

This product is part of Honeywell’s C300 series control system and is an important component module of the system.

CC-PAIH02 51405038-375 HONEYWELL

Product Features

High precision analog acquisition:Accurately collect 4-20mA or 0-10V analog signals.

HART protocol support:Supports the HART protocol to configure and diagnose smart instruments.

Modular design:facilitates system expansion and maintenance.

High reliability:suitable for harsh industrial environments.

Product function

Analog signal acquisition:Collecting analog signals of process variables such as temperature,pressure,flow rate,etc.

HART device configuration:Configure and diagnose the connected HART device.

Data transmission:transmit the collected data to the upper computer.

Product Usage

Process control:used in process control systems to collect process variables and achieve closed-loop control.

Data collection system:used to build a data collection system and collect on-site data.

SCADA system:used as the underlying data acquisition module in SCADA systems.

application area

Petrochemical industry:process control,data acquisition

Electricity:automation of power plants and substations

Metallurgy:Metallurgical Process Control

Water treatment:monitoring of water treatment process

Food and Beverage:Production Process Control
