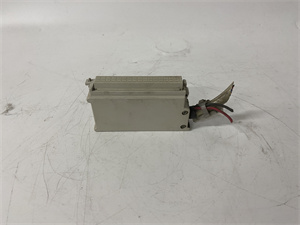

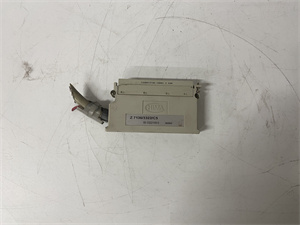

HIMA Z7136

Description

HIMA Z7136 HIQuad Digital Output Module

1. Product Description

• Safety Integrity: SIL 3 certification ensures compliance with international safety standards for critical processes.
• Redundancy Support: Hot-swappable dual-channel redundancy (2oo4D architecture) enables continuous operation during maintenance or fault events.
• Environmental Resilience: Operates reliably in extreme temperatures (-40°C to +70°C) and withstands electromagnetic interference (EMI).
• Diagnostic Capabilities: Built-in LED indicators provide real-time feedback on channel status, power supply health, and module integrity.

2. Technical Parameters

Parameter	Specification
Brand	HIMA
Model	Z7136
Module Type	Digital Output Module (19-inch rack mount)
Power Supply	24 V DC ±15%
Power Consumption	≤10 W (maximum load)
Output Channels	4 (individually configurable)
Output Current	2 A per channel (resettable short-circuit protection)
Output Voltage	24 V DC
Safety Integrity Level	SIL 3 compliant (IEC 61508/61511)
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Physical Dimensions	187 mm × 128 mm × 22 mm (7.36” × 5.04” × 0.87”)
Weight	0.16 kg
Certifications	CE, UL, RoHS, TÜV (SIL 3)

HIMA Z7136

3. Advantages and Features

• SIL 3 Safety Compliance:
  The Z7136 meets the highest safety integrity level (SIL 3), ensuring compliance with IEC 61508 and IEC 61511 standards. This makes it suitable for applications such as ESD systems and HIPPS, where safety failures could result in environmental hazards or operational disruptions.
• Dual-Channel Redundancy:
  Its hot-swappable architecture provides fault tolerance by continuously verifying data between two communication channels. In case of a failure, the standby channel takes over without interrupting operations, achieving a mean time between failures (MTBF) exceeding 500,000 hours—critical for 24/7 industrial processes.
• Protocol Flexibility:
  Supports Modbus RTU/ASCII and PROFIBUS DP protocols, enabling seamless integration with legacy and modern field devices. This reduces dependency on additional gateways, simplifying system architecture and lowering integration costs.
• Rugged Design:
  Operates across a wider temperature range (-40°C to +70°C) and withstands higher vibration levels compared to generic modules, ensuring reliability in harsh industrial settings.

4. Application Areas and Case Study

Application Areas:

• Petrochemical & Chemical Processing: Emergency shutdown systems (ESD), burner management systems (BMS), and hazardous area control.
• Power Generation: Turbine overspeed protection, boiler safety control, and grid stabilization in thermal and wind energy plants.
• Manufacturing: Machine safety interlocks, robotic cell control, and quality-critical production lines.
• Transportation: Railway signaling safety systems, automated warehouse logistics, and marine vessel control.

Case Study:

5. Competitive Comparison

• Higher Safety Integrity: SIL 3 certification surpasses many alternatives that support only SIL 2, making it a top choice for risk-critical applications.
• Integrated Redundancy: Built-in dual-channel redundancy eliminates the need for external redundancy modules, reducing hardware complexity and costs by 20%.
• Ecosystem Compatibility: Designed exclusively for HIMA’s HIQuad X platforms, it ensures plug-and-play integration with HIMA’s I/O and power solutions, unlike generic modules that require custom configuration.
• Extreme Environment Performance: Operates across a wider temperature range (-40°C to +70°C) and withstands higher vibration levels, outperforming competitors in harsh industrial settings.


  HIMA Z7136

6. Selection Recommendations

• Safety Requirements: Choose the Z7136 if your application mandates SIL 3 compliance (e.g., IEC 61511-defined processes). For lower-risk scenarios, consider HIMA’s non-redundant modules.
• Redundancy Needs: Opt for dual Z7136 modules for mission-critical systems where downtime is unacceptable, such as oil rigs or nuclear facilities.
• Protocol & Connectivity: Ensure your field devices and programming tools align with Modbus and PROFIBUS standards supported by the module.
• Environmental Fit: Verify that your operational temperature (-40°C to +70°C) and EMI exposure match the module’s specifications, especially for outdoor or high-vibration installations.
• Scalability: Plan for future expansions by leveraging HIMA’s modular I/O capabilities, which allow incremental system upgrades without redesigning the core architecture.

7. Precautions

• Installation:
  • Mount the module in a grounded 19-inch rack with adequate ventilation to prevent overheating. Separate power cables from signal wires to minimize EMI interference.
  • Torque terminal screws to 1.2 N·m to ensure secure connections and avoid loose wiring.
• Configuration:
  • Use HIMA’s Elop II software for protocol setup and redundancy configuration, ensuring channels are correctly synchronized. Validate communication parameters with TÜV-approved tools to maintain certification compliance.
  • Back up configuration files regularly to protect against data loss during firmware updates or module replacement.
• Maintenance:
  • Inspect status indicators monthly to monitor communication health. A steady green light indicates normal operation, while a red light signals a fault requiring immediate attention.
  • Clean the module’s ventilation slots quarterly with compressed air to remove dust, which can degrade heat dissipation over time.
  • Replace the module every 7–10 years or as recommended by HIMA’s maintenance guidelines, even if no faults are detected, to ensure long-term reliability.
• Safety Compliance:
  • Design the system in accordance with IEC 61511 guidelines, ensuring the Z7136 is part of a fully validated safety instrumented system (SIS).
  • Avoid modifying firmware using unauthorized tools, as this may compromise safety certifications and system stability.
