HIMA F6217 984621702

Description

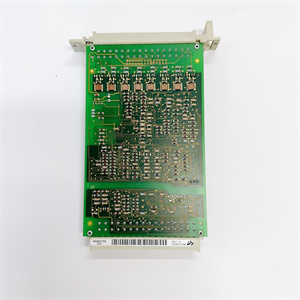

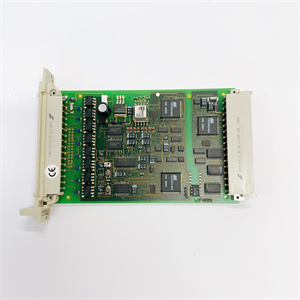

HIMA F6217 984621702 8-Channel Analog Input Module

1. Product Description

• Wide Signal Range: Accommodates diverse sensor types, including pressure transmitters, temperature probes, and flow meters.
• High-Speed Sampling: Processes signals at 1 kHz, enabling real-time adjustments in dynamic systems.
• Modular Compatibility: Integrates with HIMA’s HIMax safety systems and third-party PLCs via PROFIBUS DP or Modbus RTU.
• Hot-Swap Capability: Allows maintenance without system shutdown, minimizing downtime in 24/7 operations.

2. Technical Parameters

Parameter	Specification
Brand	HIMA
Model	F6217 984621702
Module Type	8-channel analog input (SIL 3)
Input Types	Voltage (0–5/10 V) or current (0/4–20 mA)
Resolution	12-bit
Accuracy	±0.1% F.S.
Sampling Rate	1 kHz
Safety Integrity Level	SIL 3 (IEC 61508), TÜV-certified
Power Supply	24 V DC ±15%
Operating Temperature	-20°C to +60°C (industrial) or -40°C to +70°C (extended)
Protection Class	IP20 (dust protection)
Dimensions	120 mm × 50 mm × 25 mm
Weight	200 g
Certifications	CE, UL, cUL, NEC Class 1 Div 2

F6217 984621702

3. Advantages and Features

• Safety-Critical Performance:
  The F6217’s SIL 3 certification ensures compliance with the highest safety standards, making it suitable for applications where failure could lead to catastrophic consequences. Its redundant processors and self-diagnostic functions—such as ADC linearity checks and cross-talk detection—minimize undetected faults, achieving a diagnostic coverage rate of 99%.
• Precision and Flexibility:
  With 12-bit resolution and ±0.1% accuracy, the module delivers precise measurements for critical processes. It supports both voltage and current inputs, eliminating the need for external signal conditioning and reducing installation complexity.
• Environmental Robustness:
  The module operates reliably in extreme temperatures, ranging from -40°C to +70°C in extended mode, and withstands high humidity and vibration. This makes it ideal for harsh environments such as offshore platforms, chemical plants, and manufacturing facilities with fluctuating conditions.
• Scalability:
  As part of HIMA’s modular HIMax system, the F6217 allows easy expansion of I/O channels, making it suitable for both small-scale setups and large industrial projects.

4. Application Areas and Case Study

Application Areas:

• Oil & Gas: Monitoring pressure, temperature, and flow in wellheads, pipelines, and refineries to ensure safe and efficient operations.
• Chemical Processing: Controlling reactor parameters, such as pressure and temperature, and managing hazardous material handling to prevent safety incidents.
• Power Generation: Optimizing turbine efficiency, balancing generator loads, and monitoring steam parameters in power plants.
• Manufacturing: Enabling quality control in automotive and pharmaceutical production lines through precise sensor data acquisition.

Case Study:

5. Competitive Comparison

• Superior Safety Certification: SIL 3 compliance exceeds many alternatives that offer only SIL 2, making it a preferred choice for high-risk applications.
• Extended Temperature Range: The ability to operate up to +70°C (extended mode) ensures reliability in environments where other modules might fail due to heat stress.
• Integrated Diagnostic Tools: Advanced self-tests and 99% fault coverage reduce the risk of undetected errors, outperforming modules with basic diagnostic capabilities.
• Versatile Signal Support: Native compatibility with both voltage and current inputs eliminates the need for additional hardware, simplifying system design and reducing costs.


  F6217 984621702

6. Selection Recommendations

• Safety Requirements: Prioritize the F6217 if your application requires SIL 3 certification, such as in processes governed by IEC 61511 standards.
• Signal Compatibility: Confirm that the module supports your sensor’s output type (voltage or current) and ensure the 12-bit resolution meets your precision needs.
• Environmental Conditions: Choose the extended temperature range (-40°C to +70°C) if installing in outdoor or high-temperature environments, such as boiler rooms or offshore sites.
• System Scalability: Evaluate if the 8-channel configuration aligns with your current I/O requirements, and consider HIMA’s modular expansion options for future upgrades.

7. Precautions

• Installation:
  • Use shielded cables to minimize EMI interference and route power and signal cables separately to avoid noise coupling.
  • Torque terminal screws to the recommended 1.2 N·m to ensure secure connections and prevent loose wiring.
• Configuration:
  • Program the module using HIMA’s HIMax Workbench software, verifying signal ranges, scaling factors, and safety parameters.
  • Regularly back up configuration files to protect against data loss during firmware updates or hardware replacement.
• Maintenance:
  • Inspect the module quarterly for physical damage or loose connections, especially in high-vibration environments.
  • Replace the module every 10 years or after 1 million operating cycles (whichever comes first) to maintain optimal performance.
• Safety Compliance:
  • Adhere to IEC 61511 guidelines when designing safety instrumented systems, ensuring the module is part of a properly validated and tested architecture.
  • Avoid using non-certified modules alongside the F6217 to maintain overall system safety integrity.
