HIMA F3231

Description

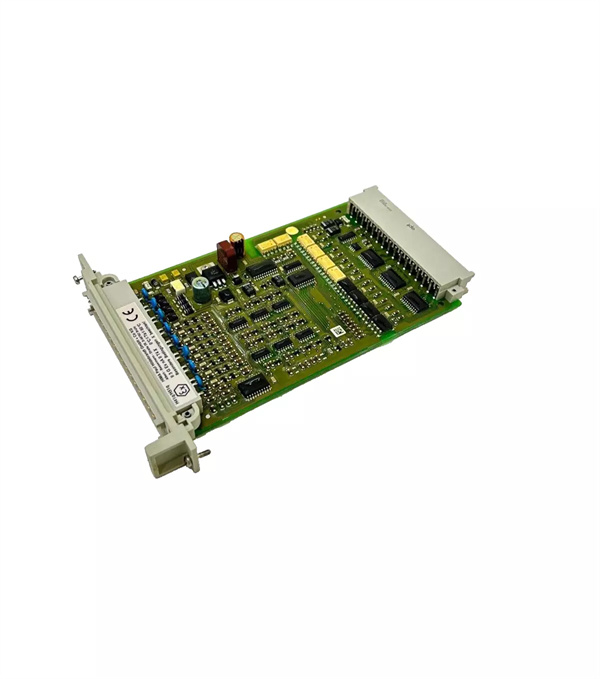

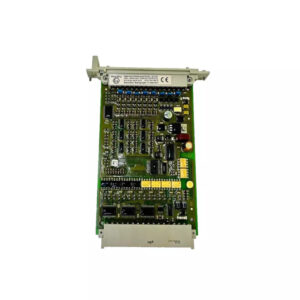

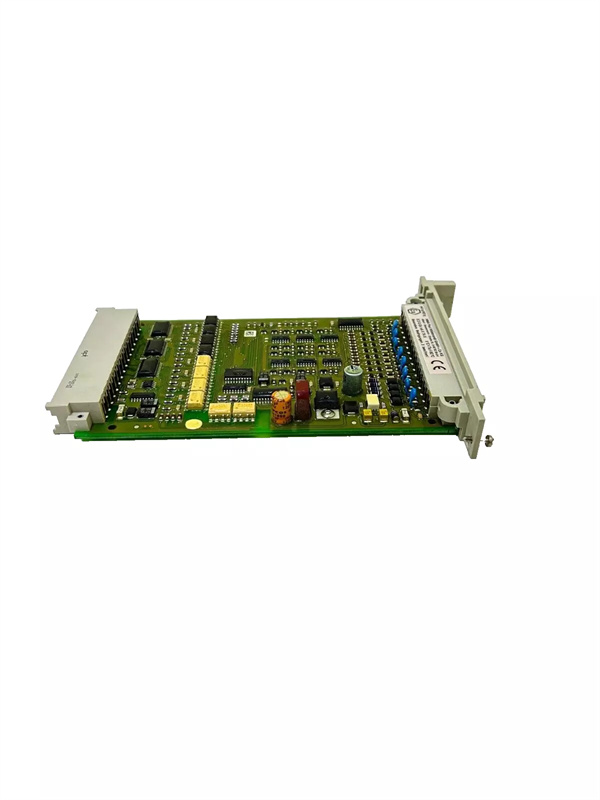

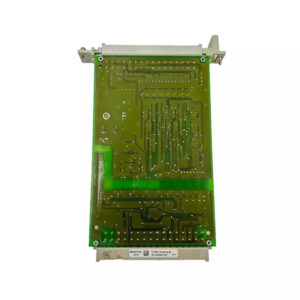

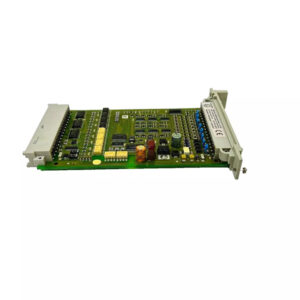

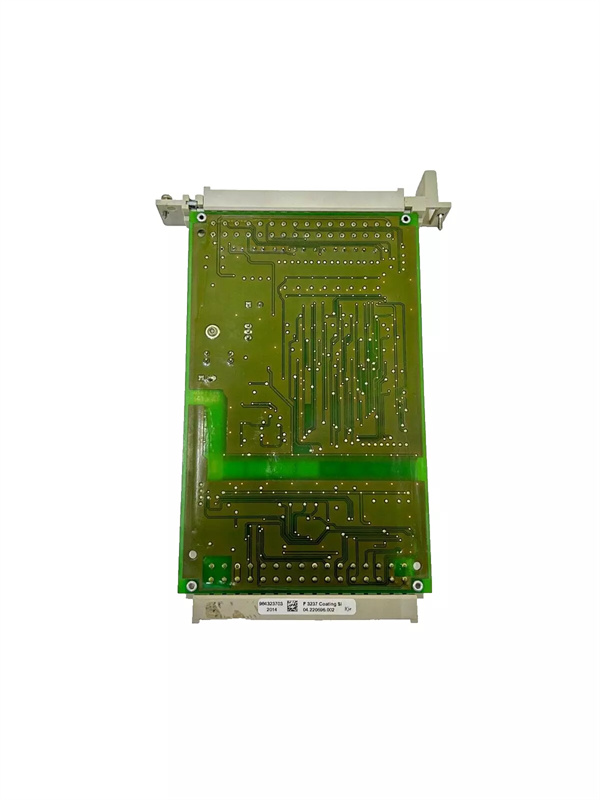

HIMA F3231 Digital Input Module

1. Product Description

• Reliable Signal Acquisition: Converts physical signals from field devices into digital data for processing by safety controllers, with each channel supporting 24 V DC input.
• Redundancy Support: Enables hot-swappable dual-channel operation (2oo4D architecture), allowing maintenance or replacement without system downtime.
• Advanced Diagnostics: Built-in LED indicators provide real-time feedback on channel status, power supply health, and module integrity, facilitating proactive maintenance.
• Environmental Resilience: Withstands extreme temperatures (-40°C to +70°C) and electromagnetic interference (EMI), ensuring reliable operation in harsh environments like chemical plants or offshore platforms.

2. Technical Parameters

Parameter	Specification
Brand	HIMA
Model	F3231
Module Type	Digital Input Module (19-inch rack mount)
Power Supply	24 V DC ±15%
Power Consumption	≤10 W (maximum load)
Input Channels	16 (individually configurable)
Input Voltage	24 V DC (nominal, 16 V DC to 30 V DC tolerant)
Input Current	200 mA per channel (max)
Safety Integrity Level	SIL 3 compliant (IEC 61508/61511)
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Physical Dimensions	140 mm × 90 mm × 60 mm (5.51″ × 3.54″ × 2.36″)
Weight	0.15 kg
Certifications	CE, UL, RoHS, TÜV (SIL 3)
Compatibility	HIMA HIMatrix safety systems, PROFIBUS DP, Modbus RTU

HIMA F3231

3. Advantages and Features

• SIL 3 Safety Compliance:
  The F3231 meets the highest safety integrity level (SIL 3), ensuring compliance with international standards for critical processes. This certification makes it suitable for applications where fault tolerance is non-negotiable, such as nuclear power plants or chemical reactors, where it reduces the risk of undetected failures by over 99%.
• Dual-Channel Redundancy:
  Its hot-swappable design supports redundant operation, allowing the module to maintain full functionality even if one channel fails. This architecture achieves a mean time between failures (MTBF) exceeding 500,000 hours, critical for 24/7 industrial operations where downtime must be minimized.
• Rugged Environmental Performance:
  The module’s ability to operate across a wide temperature range (-40°C to +70°C) and resist vibration (up to 5 g) and EMI ensures reliability in extreme environments. This makes it a preferred choice for outdoor installations, high-temperature facilities, or sites with significant electromagnetic noise.
• Modular Scalability:
  As part of HIMA’s HIMatrix platform, the F3231 integrates seamlessly with other HIMA I/O modules and safety controllers, supporting scalable system designs from small-scale setups to large industrial projects with thousands of I/O points.

4. Application Areas and Case Study

Application Areas:

• Petrochemical & Chemical Processing: Monitoring pressure switches, temperature sensors, and valve positions in ESD systems and chemical reactor control.
• Power Generation: Detecting faults in turbine overspeed protection systems and boiler safety interlocks.
• Manufacturing: Enabling machine safety interlocks, robotic cell monitoring, and quality control in automotive and pharmaceutical production lines.
• Transportation: Managing railway signaling safety systems and automated warehouse logistics.

Case Study:

5. Competitive Comparison

• Superior Safety Certification: SIL 3 compliance surpasses many alternatives that offer only SIL 2, making it ideal for high-risk applications.
• Enhanced Redundancy: Built-in dual-channel redundancy eliminates the need for external hardware, reducing system complexity and potential points of failure.
• Wide Environmental Tolerance: Operates reliably in broader temperature and vibration ranges than most competitors, ensuring stability in harsh conditions without additional cooling or shielding.
• Ecosystem Integration: Designed exclusively for HIMA’s HIMatrix platform, it provides plug-and-play compatibility with HIMA’s software and hardware, reducing integration time and configuration errors.


  HIMA F3231

6. Selection Recommendations

• Safety Requirements: Prioritize the F3231 for applications requiring SIL 3 certification, such as those governed by IEC 61511 standards. For lower-risk setups, consider HIMA’s non-redundant modules with lower SIL ratings.
• Environmental Fit: Verify that your operational temperature (-40°C to +70°C) and vibration levels align with the module’s specifications, especially for outdoor or high-motion installations.
• System Compatibility: Ensure compatibility with your existing HIMA safety controller (e.g., HIMatrix series) and communication protocols (PROFIBUS DP, Modbus RTU) to avoid integration challenges.
• Scalability Needs: Evaluate the number of required input channels; the F3231 is suitable for medium to large systems, while smaller setups may opt for HIMA’s 8-channel modules.

7. Precautions

• Installation:
  • Mount the module in a grounded 19-inch rack with adequate ventilation to prevent overheating. Separate power cables from signal wires to minimize EMI interference.
  • Use shielded twisted-pair cables for signal connections and torque terminal screws to 1.2 N·m to ensure secure wiring.
• Configuration:
  • Program the module using HIMA’s Elop II software to set input parameters (e.g., signal type, debounce time) and enable redundancy if required. Validate configurations against safety requirements to maintain certification compliance.
  • Regularly back up configuration files to protect against data loss during firmware updates or module replacement.
• Maintenance:
  • Inspect LED indicators monthly to monitor channel status (green for normal, red for fault). A blinking red light signals a channel-specific issue requiring immediate attention.
  • Clean ventilation slots quarterly with compressed air to remove dust, which can degrade heat dissipation and lead to performance issues.
  • Replace the module every 7–10 years or as per HIMA’s maintenance guidelines, even if no faults are detected, to ensure long-term reliability.
• Safety Compliance:
  • Design the system in accordance with IEC 61511 guidelines, ensuring the F3231 is part of a fully validated safety instrumented system (SIS).
  • Avoid using unauthorized firmware or configuration tools, as this may compromise safety certifications and system stability.
