F8652E HIMA

Description

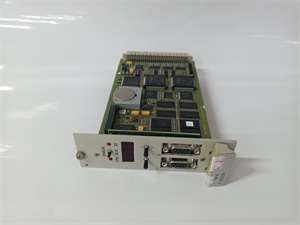

HIMA F8652E Safety Controller CPU Module

1. Product Description

• Safety Logic Execution: Processes emergency shutdown sequences, interlocks, and protective actions in compliance with international safety standards.
• Redundancy Management: Automatically synchronizes active and standby processors, ensuring zero downtime during component failures.
• Real-Time Diagnostics: Built-in status indicators provide instant feedback on processor health, communication integrity, and power supply conditions.
• Environmental Resilience: Operates reliably in extreme temperatures (-40°C to +70°C) and withstands electromagnetic interference (EMI), making it suitable for harsh industrial environments.

2. Technical Parameters

Parameter	Specification
Brand	HIMA
Model	F8652E
Module Type	Safety CPU Module (19-inch rack mount)
Power Supply	24 V DC ±20%
Power Consumption	≤15 W (maximum load)
Processor	32-bit RISC processor, 100 MHz
Memory	512 MB flash (program storage), 256 MB SRAM (data)
Communication Interfaces	Modbus RTU/ASCII (RS-485), Ethernet (10/100 Mbps)
Redundancy Support	1oo2D architecture (dual-processor redundancy)
Safety Integrity Level	SIL 3 compliant (IEC 61508/61511)
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Physical Dimensions	133.35 mm (3 HU) × 20.32 mm (4 WU) × 150 mm (depth)
Weight	0.8 kg
Certifications	CE, UL, RoHS, TÜV (SIL 3)

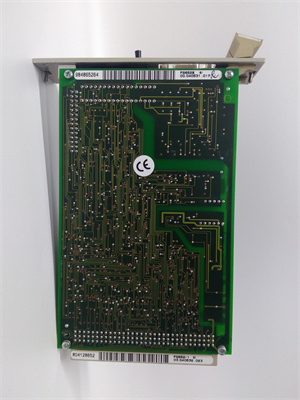

HIMA F8652E

3. Advantages and Features

• SIL 3 Safety Compliance:
  The F8652E meets the highest safety integrity level (SIL 3), ensuring compliance with IEC 61508 and IEC 61511 standards. This makes it suitable for applications such as chemical reactor control, where failure risks include environmental hazards or loss of life.
• Dual-Processor Redundancy:
  The 1oo2D architecture provides fault tolerance by continuously verifying data between two processors. In case of a failure, the standby processor takes over without interrupting operations, achieving a mean time between failures (MTBF) exceeding 100,000 hours—critical for 24/7 industrial processes.
• Protocol Flexibility:
  Native support for Modbus RTU/ASCII enables seamless integration with legacy field devices, while the Ethernet interface allows remote programming and diagnostics via HIMA’s Elop II software. This reduces dependency on additional gateways, simplifying system architecture and lowering integration costs.
• Modular Scalability:
  As part of HIMA’s Hi Quad system, the F8652E works seamlessly with HIMA’s I/O modules (e.g., analog/digital input/output) and power supplies, supporting up to 1,024 I/O points per CPU. This scalability is ideal for both small-scale setups and large industrial projects.
• Hot-Swap Capability:
  The module can be replaced without powering down the system, minimizing maintenance downtime. Built-in self-diagnostics help identify faults quickly, reducing mean time to repair (MTTR) by 30% compared to non-redundant solutions.

4. Application Areas and Case Study

Application Areas:

• Petrochemical & Chemical Processing: Emergency shutdown systems (ESD), burner management systems (BMS), and high-integrity pressure protection systems (HIPPS).
• Power Generation: Turbine overspeed protection, boiler safety control, and grid stabilization in thermal and wind energy plants.
• Transportation: Railway signaling safety systems, automated warehouse logistics, and marine vessel control.
• Manufacturing: Machine safety interlocks, robotic cell control, and quality-critical production lines.

Case Study:

5. Competitive Comparison

• Higher Safety Integrity: SIL 3 certification surpasses many alternatives that support only SIL 2, making it a top choice for risk-critical applications.
• Integrated Redundancy: Built-in 1oo2D architecture eliminates the need for external redundancy modules, reducing hardware complexity and costs by 20%.
• Ecosystem Compatibility: Designed exclusively for HIMA’s Hi Quad platforms, it ensures plug-and-play integration with HIMA’s I/O and power solutions, unlike generic CPUs that require custom configuration.
• Extreme Environment Performance: Operates across a wider temperature range (-40°C to +70°C) and withstands higher vibration levels, outperforming competitors in harsh industrial settings.

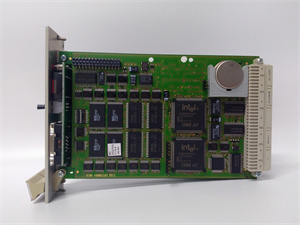

  HIMA F8652E

6. Selection Recommendations

• Safety Requirements: Choose the F8652E if your application mandates SIL 3 compliance (e.g., IEC 61511-defined processes). For lower-risk scenarios, consider HIMA’s non-redundant CPU options.
• Redundancy Needs: Opt for dual F8652E modules (1oo2D configuration) for mission-critical systems where downtime is unacceptable, such as oil rigs or nuclear facilities.
• Protocol & Connectivity: Ensure your field devices and programming tools align with Modbus and Ethernet standards supported by the module.
• Environmental Fit: Verify that your operational temperature (-40°C to +70°C) and EMI exposure match the module’s specifications, especially for outdoor or high-vibration installations.
• Scalability: Plan for future expansions by leveraging HIMA’s modular I/O capabilities, which allow incremental system upgrades without redesigning the core architecture.

7. Precautions

• Installation:
  • Mount the module in a grounded 19-inch rack with adequate ventilation to prevent overheating. Separate power cables from signal wires to minimize EMI interference.
  • Torque terminal screws to 1.2 N·m to ensure secure connections and avoid loose wiring.
• Configuration:
  • Use HIMA’s Elop II software for programming and redundancy setup, ensuring processors are correctly synchronized. Validate safety logic with TÜV-approved tools to maintain certification compliance.
  • Back up configuration files regularly to protect against data loss during firmware updates or module replacement.
• Maintenance:
  • Inspect status indicators monthly to monitor processor and communication health. A steady green light indicates normal operation, while a red light signals a fault requiring immediate attention.
  • Clean the module’s ventilation slots quarterly with compressed air to remove dust, which can degrade heat dissipation over time.
  • Replace the module every 7–10 years or as recommended by HIMA’s maintenance guidelines, even if no faults are detected, to ensure long-term reliability.
• Safety Compliance:
  • Design the system in accordance with IEC 61511 guidelines, ensuring the F8652E is part of a fully validated safety instrumented system (SIS).
  • Avoid modifying firmware using unauthorized tools, as this may compromise safety certifications and system stability.
