PQMII-T20

Description

GE PQMII-T20 Power Quality Meter Product Explanation

Product Overview

GE PQMII-T20 is a high-performance power quality analyzer used for continuous monitoring of power quality in three-phase power grids.It can accurately measure various electrical parameters such as voltage,current,power,power factor,harmonics,etc.,and provide rich alarm and event recording functions to help users discover and analyze power quality problems in a timely manner,ensuring the safe and reliable operation of electrical equipment.

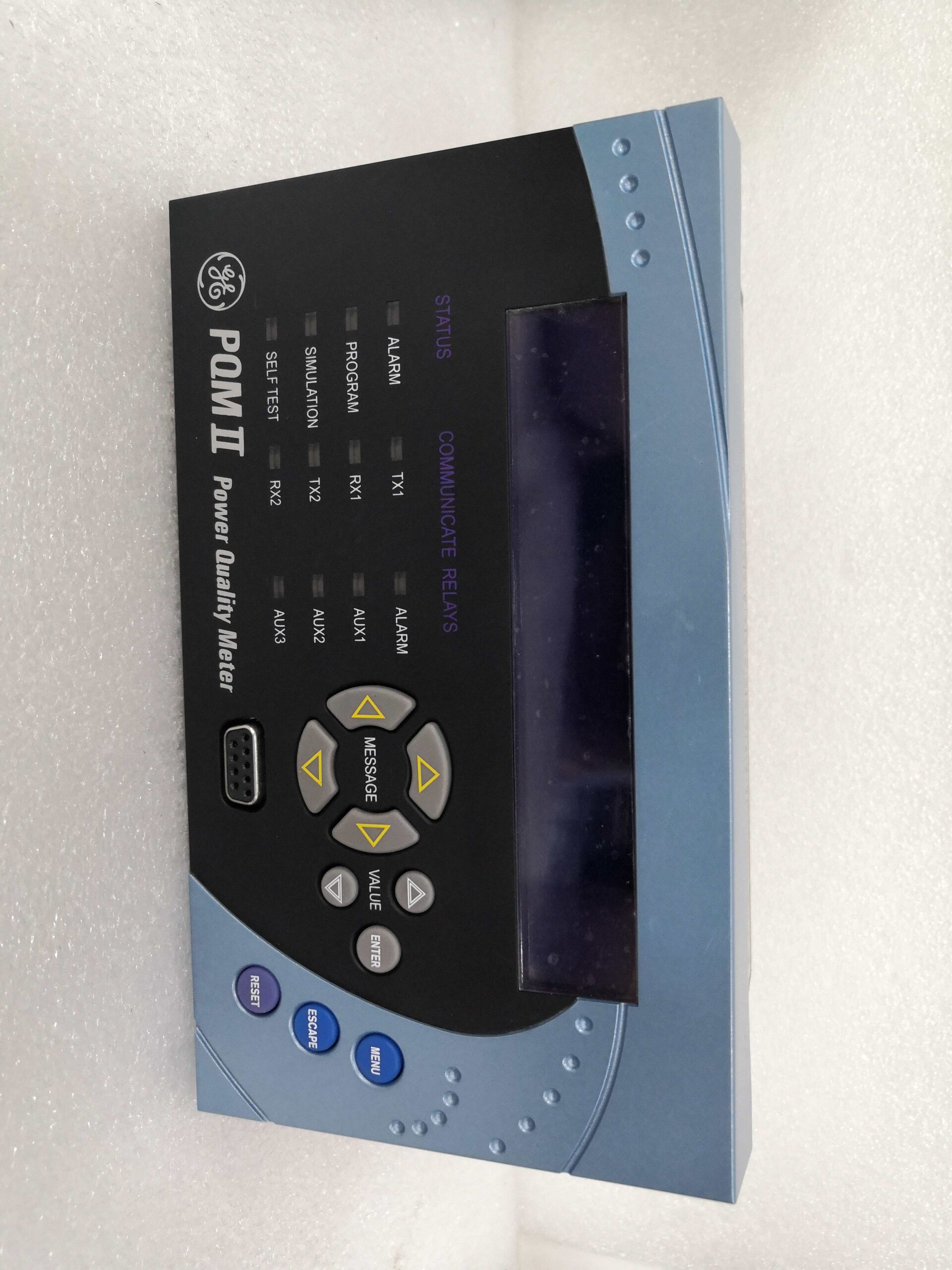

PQMII-T20 GE

main features

Multi parameter measurement:Accurately measure various electrical parameters such as voltage,current,active power,reactive power,power factor,frequency,harmonics,etc.

High precision measurement:Using high-precision sensors to ensure the accuracy of measurement data.

Rich alarm function:supports multiple alarm types,including high/low voltage,frequency deviation,excessive harmonics,etc.,and provides multiple alarm output methods.

Event recording:Record power quality events such as voltage sag,voltage surge,harmonic disturbance,etc.,and provide detailed event reports.

Data storage:Equipped with a large capacity storage,it can store measurement data and event records for a long time.

Communication function:Supports multiple communication protocols such as Modbus,Ethernet,etc.,making it easy to integrate with the upper computer system.

Product parameters

Model:PQMII-T20

Measurement range:The measurement range of parameters such as voltage,current,and power depends on the specific model

Accuracy:High precision sensors ensure the accuracy of measurement data

Harmonic analysis:can analyze up to 50 harmonics

Communication interface:Supports multiple communication protocols,such as Modbus,Ethernet,etc

Working temperature range:-10℃~+55℃

Product series

PQMII-T20 belongs to the GE Multilin series of products and is one of the models in this series.

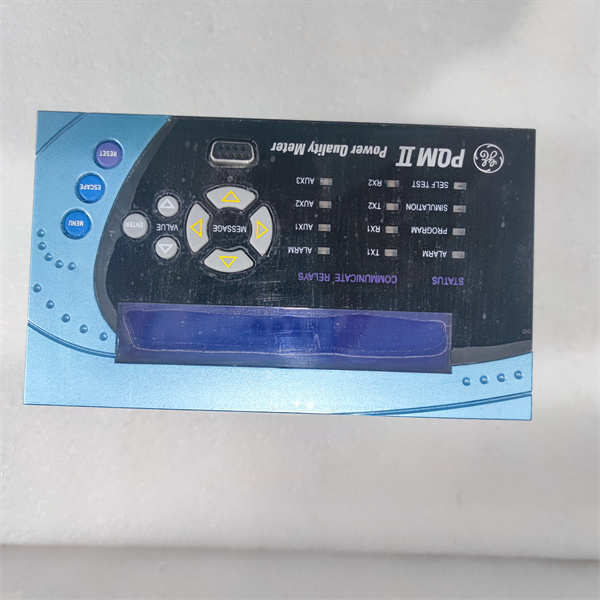

PQMII-T20 GE

Product function

Monitoring power quality:Continuously monitoring the power quality of the power grid,promptly identifying and analyzing power quality issues.

Protecting electrical equipment:By monitoring and alerting,electrical equipment is protected from damage caused by power quality issues.

Optimize power quality:By analyzing power quality data,optimize power quality and improve power utilization efficiency.

Product Usage

Widely used in power systems,industrial enterprises,commercial buildings and other fields,such as:

Power system:power plants,substations,distribution networks,etc

Industrial enterprises:petrochemical,metallurgical,automotive manufacturing,etc

Commercial buildings:data centers,hospitals,schools,etc

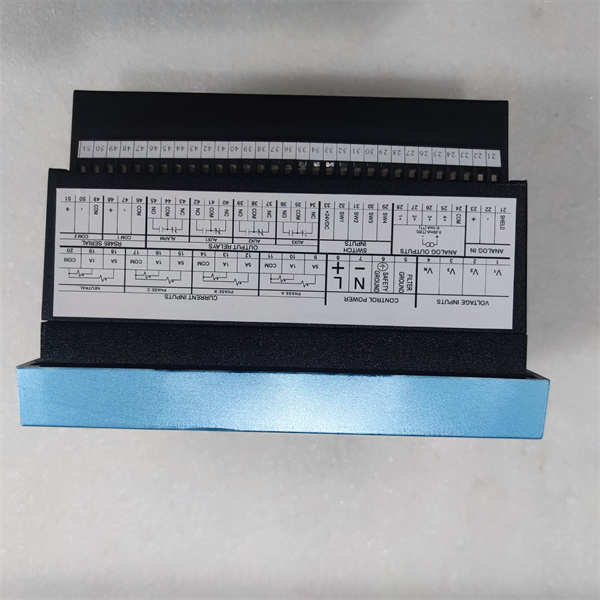

PQMII-T20 GE

application area

Power Quality Analysis:Monitor the power quality of the power grid and analyze the causes of power quality issues.

Electricity metering:Measuring energy consumption and billing for electricity.

Equipment protection:Protect electrical equipment from damage caused by power quality issues.

Harmonic analysis:Analyze the impact of harmonics on electrical equipment.

summary

GE PQMII-T20 is a powerful and highly reliable power quality analyzer that plays an important role in the power system.
