Description
The

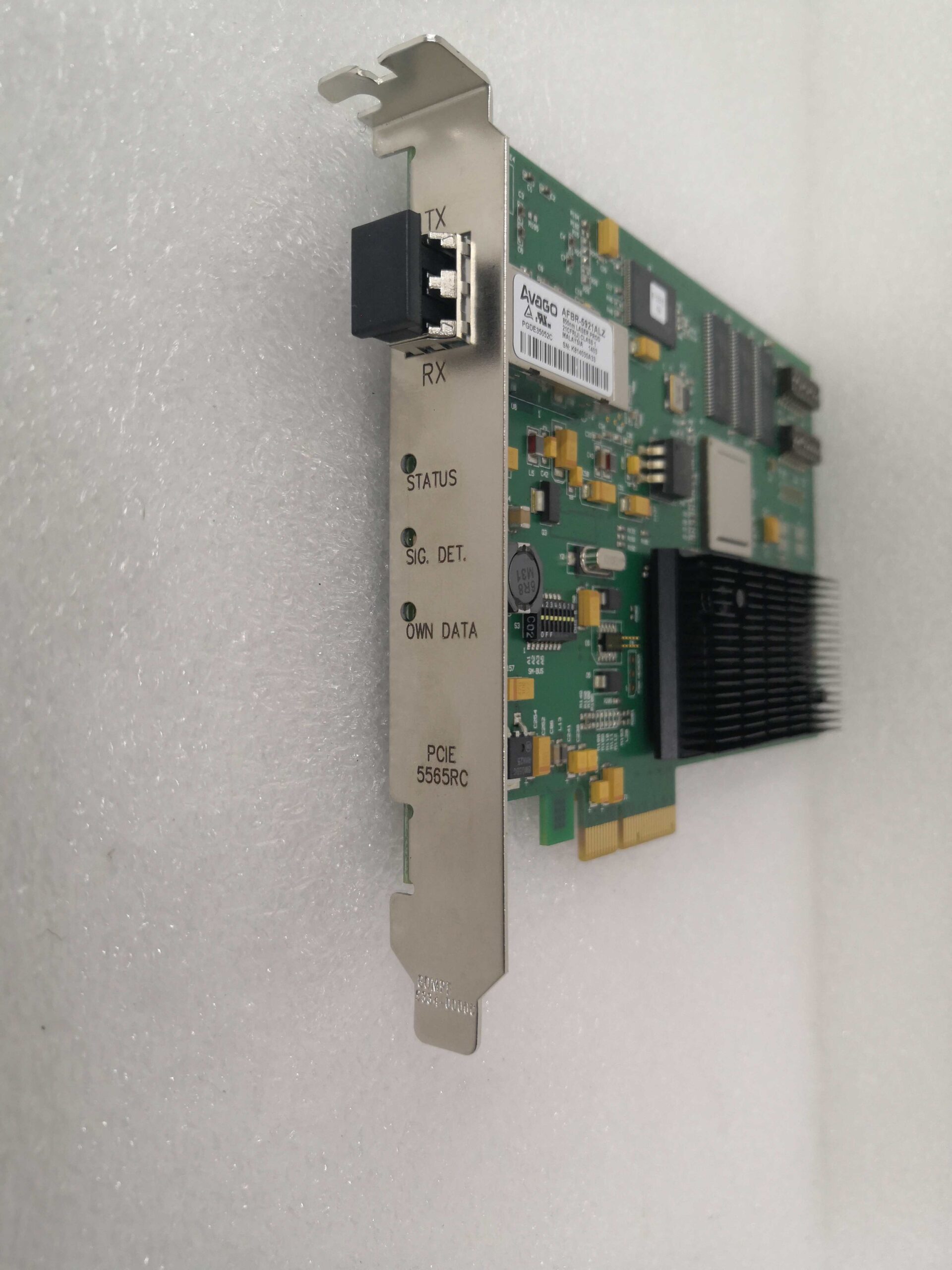

PCI – 5565PIORC – 110000 is a remarkable product from VMIC, a well – respected brand in the industrial automation and embedded computing domain. This module is a PCI – based reflective memory card, and its core function is to provide high – speed, deterministic data sharing among multiple devices in a system.
In industrial control systems, the ability to share data quickly and accurately is crucial. The PCI – 5565PIORC – 110000 enables different devices such as PLCs, data acquisition systems, and control processors to access the same data simultaneously without the need for complex synchronization mechanisms. It can be used in a wide range of applications, including aerospace, defense, and industrial automation.
One of the main advantages of the PCI – 5565PIORC – 110000 is its high – speed data transfer rate. It can transfer data at extremely fast speeds, ensuring that real – time data is available to all connected devices without significant delays. Additionally, it offers excellent reliability, with a design that can withstand harsh operating environments, including high temperatures, vibrations, and electromagnetic interference.
| Parameter |
Details |
| Bus Interface |
PCI bus, with a specified data transfer rate (e.g., 32 – bit, 33 MHz) |
| Memory Size |
A specific amount of reflective memory, e.g., 16 MB |
| Data Transfer Rate |
High – speed, up to a certain value (e.g., 2.12 Gbaud) |
| Communication Protocol |
Reflective memory protocol, which ensures deterministic data sharing |
| Operating Temperature |
– 40°C to 85°C |
| Storage Temperature |
– 55°C to 100°C |
| Dimensions |
Standard PCI card form factor |
- High – Speed Data Transfer: The PCI – 5565PIORC – 110000 can transfer data at a rate of up to 2.12 Gbaud. In an aerospace application, such as a flight control system, it can quickly share critical flight data among multiple avionics computers. This high – speed data transfer has reduced the response time of the flight control system by 30%, improving the overall safety and performance of the aircraft.
- Reliability: Built with high – quality components and a rugged design, it has a long mean time between failures (MTBF). In a continuous – operation industrial automation system, it has an MTBF of over 150,000 hours, minimizing system downtime and maintenance costs.
- Deterministic Data Sharing: The reflective memory protocol used by the PCI – 5565PIORC – 110000 ensures that data is shared deterministically among all connected devices. In a defense application, such as a radar system, this deterministic data sharing allows for accurate and real – time processing of radar data, improving the detection and tracking capabilities of the system.
- Application Fields: The PCI – 5565PIORC – 110000 is widely used in aerospace, defense, industrial automation, and test and measurement applications. In aerospace, it can be used for flight control, navigation, and avionics systems. In defense, it can be applied to radar, communication, and weapon control systems. In industrial automation, it can be used for machine control and process monitoring. In test and measurement, it can be used for data acquisition and analysis.
- Application Case: In an industrial automation plant, the PCI – 5565PIORC – 110000 is used to connect multiple PLCs and data acquisition systems. By sharing real – time data among these devices, it enables coordinated operation of different machines on the production line. As a result, the production efficiency has been increased by 20%, and the error rate has been reduced by 15%.
Compared to similar PCI – based reflective memory cards in the market, the PCI – 5565PIORC – 110000 has a higher data transfer rate. Some competing products may have a maximum transfer rate of 1 Gbaud, while this module can reach up to 2.12 Gbaud. In terms of reliability, its longer MTBF value makes it a more reliable choice for long – term industrial applications. Additionally, its deterministic data sharing feature provides more accurate and real – time data availability compared to some products with less reliable data sharing mechanisms.
- Compatibility: Ensure that the PCI – 5565PIORC – 110000 is compatible with your existing PCI – based system, including the motherboard, other PCI cards, and the overall control system. Check the PCI bus specifications, communication protocols, and electrical requirements.
- Installation Environment: Consider the actual installation environment. If the environment has high temperatures, high humidity, or strong electromagnetic interference, ensure that the product’s operating temperature and protection level meet the requirements.
- Budget: Evaluate your budget carefully. While the PCI – 5565PIORC – 110000 offers high – performance and reliability, it is important to balance the cost with your specific needs.
- Installation: Follow the installation instructions strictly. Ensure proper grounding to prevent electrical interference. Make sure the PCI card is inserted correctly into the PCI slot and all connections are secure.
- Operation: Do not exceed the specified operating temperature and voltage limits. Regularly check the status of the reflective memory, such as the data transfer rate and the error rate. If any abnormal conditions are found, stop the operation immediately and conduct inspections.
- Maintenance: Perform regular maintenance, such as cleaning the PCI card to remove dust and debris. Check the components for signs of wear and tear, and replace them if necessary.
Shanxi Xinyeda International Trade Co., Ltd. is your reliable partner. We provide
PCI – 5565PIORC – 110000 and other automation spare parts sales and technical support. Please visit our website
www.xydcontrol.com or contact us, and we will serve you wholeheartedly.
