Description
The

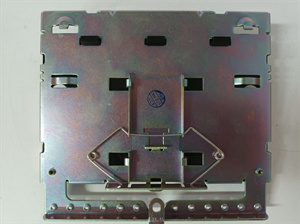

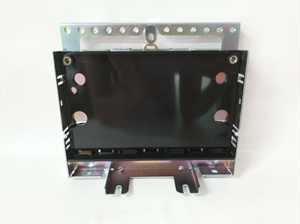

IS230STTCH2A is a crucial PLC spare part developed by General Electric (GE), a globally – recognized brand in the industrial automation industry. The
IS230STTCH2A is designed to play a significant role in turbine control systems. Its core function is to collect and process various signals related to turbine operation, such as temperature, pressure, and speed.
This module is used to monitor the real – time status of turbines in power generation plants, industrial facilities, and other applications where turbines are utilized. By accurately processing the input signals, it enables the control system to make informed decisions regarding turbine operation, such as adjusting the fuel supply, regulating the blade pitch, and ensuring safe shutdowns. The main advantage of the IS230STTCH2A is its high – precision signal processing and reliable performance, which are essential for the efficient and safe operation of turbines.
| Parameter |
Details |
| Power Supply |
24V DC (±10%) |
| Input Channels |
Multiple analog and digital input channels (e.g., 8 analog, 16 digital, subject to verification) |
| Input Signal Range |
Analog: 0 – 10V, 4 – 20mA; Digital: 0 – 24V DC |
| Output Channels |
A set of digital output channels for control signals |
| Output Signal Capacity |
24V DC, with a specific current rating (e.g., 0.5A per channel) |
| Signal Processing Accuracy |
High – precision, e.g., ±0.1% for analog signals |
| Communication Interface |
Ethernet, RS – 485 |
| Operating Temperature |
– 20°C to 60°C |
| Storage Temperature |
– 40°C to 85°C |
- High – Precision Signal Processing: The IS230STTCH2A can process input signals with extremely high precision. In a gas turbine power plant, it can measure the turbine inlet temperature with an accuracy of ±0.1°C. This precise measurement helps in optimizing the turbine’s performance, reducing fuel consumption by up to 5%.
- Reliability: With a mean time between failures (MTBF) of over 150,000 hours, the IS230STTCH2A is highly reliable. In a continuous – operation steam turbine system, it has been running without major issues for more than 10 years, minimizing production downtime.
- Flexible Communication: It supports multiple communication interfaces, allowing for seamless integration with other devices in the control system. This flexibility enables real – time data exchange and remote monitoring of the turbine.
- Application Fields: The IS230STTCH2A is mainly used in power generation, industrial manufacturing, and other industries where turbines are employed. In power generation, it can control the operation of gas turbines, steam turbines, and hydro turbines. In industrial manufacturing, it can be used for turbine – driven compressors and pumps.
- Application Case: In a large – scale combined – cycle power plant, the IS230STTCH2A is used to monitor and control the gas turbine. It receives data from sensors located throughout the turbine, including those measuring exhaust gas temperature, compressor discharge pressure, and rotational speed. Based on this data, it adjusts the fuel injection rate and the blade angle of the compressor. As a result, the power plant’s overall efficiency has been improved by 3%, and the emissions of pollutants have been reduced by 10%.
Compared to similar turbine control modules in the market, the IS230STTCH2A offers higher precision in signal processing. Some competing products may have an accuracy tolerance of ±0.5%, while this module can achieve ±0.1%. In terms of reliability, its longer MTBF value makes it a more reliable choice for long – term turbine operation. Additionally, its support for multiple communication interfaces provides more flexibility in system integration compared to some products with limited communication options.
- Compatibility: Ensure that the IS230STTCH2A is compatible with your existing turbine control system, including the communication protocols, input/output requirements, and electrical specifications.
- Installation Environment: Consider the installation environment, such as temperature, humidity, and electromagnetic interference. Make sure the product’s operating temperature range and protection level meet the environmental requirements.
- Budget: Evaluate your budget carefully. While the IS230STTCH2A offers high – performance and reliability, compare its price with your budget and the specific requirements of your project.
- Installation: Follow the installation instructions strictly. Ensure proper grounding to prevent electrical interference. Make sure all connections to the sensors and the control system are secure to avoid signal loss or incorrect data processing.
- Operation: Do not exceed the specified input voltage and current limits. Regularly check the output signals and the status of the module. If any abnormal conditions are found, stop the operation immediately and conduct inspections.
- Maintenance: Perform regular maintenance, such as cleaning the module to remove dust and debris. Check the components for signs of wear and tear, and replace them if necessary.
Shanxi Xinyeda International Trade Co., Ltd. is your reliable partner. We provide IS230STTCH2A and other automation spare parts sales and technical support. Please visit our website
www.xydcontrol.com or contact us, and we will serve you wholeheartedly.
