IS220PAICH2A

Description

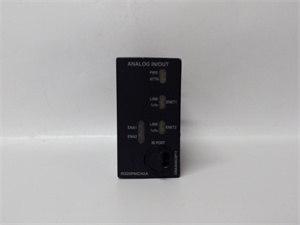

GE IS220PAICH2A Product description

GE IS220PAICH2A is an analog I/O module, mainly used to collect and output analog signals, such as temperature, pressure, flow, etc. It integrates seamlessly with GE Mark VIe Speedtronic control systems for monitoring and controlling process variables in power plants, the petrochemical industry, and more.

Product parameter

Number of channels: 8 analog input channels, 4 analog output channels.

Input range: 0-10V, 4-20mA, 0-10mA, etc.

Output range: 0-10VDC or 0-20mA.

Measurement accuracy: 0.1%.

Control accuracy: 0.2%.

Isolation voltage: 2500V.

Operating temperature range: -40°C to 85°C.

Protection level: IP20.

Dimensions: 230mm x 160mm x 80mm.

Weight: 2 kg.

Product specification

Input type: Analog input (8 channels), can be configured as voltage or current input.

Output type: Analog output (4 channels), can be configured as voltage or current output.

Sampling frequency: 1000Hz.

Response time: < 1ms.

Channel isolation: 2500VAC.

series

The IS220PAICH2A is part of GE’s Mark VIe Speedtronic family of analog I/O modules for control systems.

trait

High reliability: suitable for harsh environmental conditions to ensure long-term reliable operation.

Flexibility and configurability: Provides flexible signal range, type, and scaling configurations to suit different application needs.

Rugged: Industrial grade design to withstand harsh environmental conditions.

High precision: High precision analog signal conversion using a 16-bit resolution analog-to-digital converter (ADC).

Internal calibration: The module is equipped with an internal calibration function to ensure that the output digital signal is accurate and reliable.

Function and use

The main function of IS220PAICH2A module is to collect and output analog signals to achieve accurate measurement and control of industrial process variables. It is widely used in the following areas:

Power plant: Monitor and control the operating parameters of boilers, steam turbines, generators and other equipment.

Petrochemical industry: Monitoring and controlling process variables such as temperature, pressure and flow rate.

Other industrial fields: such as manufacturing, process control, factory automation, etc.

Application field

IS220PAICH2A modules play an important role in a number of industrial sectors, including but not limited to:

Power systems: For the production, distribution and monitoring of electricity.

Oil and gas: Used for production monitoring and control of oil and gas fields.

Marine: Used for signal acquisition and control of Marine automation systems.

Manufacturing: For the monitoring and control of process variables such as temperature, pressure and flow.

Water treatment: for water quality monitoring and control.

Metallurgy: For the automatic control of metallurgical processes.
