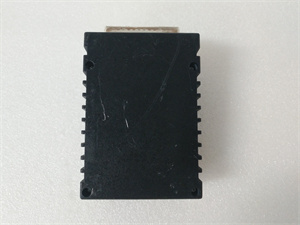

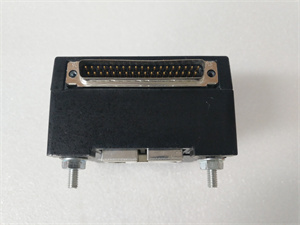

GE Fanuc IS220PAICH1A 336A4940CSP3 Product Specification
IS220PAICH1A 336A4940CSP3 is a high-reliability power interface module designed by GE Fanuc, a global leader in automation and control solutions. This module is engineered for critical industrial applications, providing stable power distribution and system integration for GE’s Mark VIe gas turbine control systems and other advanced industrial platforms.
The
IS220PAICH1A 336A4940CSP3 serves as a key component in GE Fanuc’s power management architecture, ensuring seamless connectivity between power sources, controllers, and field devices. It supports redundant power inputs, surge protection, and real-time status monitoring, making it ideal for environments where downtime is costly, such as power generation, oil and gas, and heavy manufacturing.
| Parameter |
Specification |
| Input Voltage |
125V AC ±10% (single-phase) |
| Output Voltage |
24V DC ±5% |
| Current Capacity |
10A continuous |
| Redundancy Support |
Dual power supply inputs |
| Protection Features |
Overvoltage, short-circuit |
| Communication |
Serial RS-485 (Modbus RTU) |
| Operating Temperature |
-40°C to 85°C |
IS220PAICH1A 336A4940CSP3
- Dual Redundant Power Inputs: Ensures uninterrupted operation by automatically switching to a backup power source in case of failure.
- Surge and Transient Protection: Minimizes equipment damage from voltage spikes.
- Compact Design: Fits into space-constrained control cabinets while delivering high power efficiency.
- Remote Monitoring: Enables real-time diagnostics and fault reporting via Modbus RTU.
IS220PAICH1A 336A4940CSP3 is widely deployed in:
- Power Generation: Supporting gas turbine control systems in utility plants.
- Oil and Gas: Powering offshore drilling platforms and refinery automation.
- Mining: Providing stable power to conveyor systems and crushers.
Case Study: A Texas-based power plant reduced downtime by 40% after upgrading to the IS220PAICH1A 336A4940CSP3, thanks to its redundant power architecture and advanced surge protection.
The IS220PAICH1A 336A4940CSP3 differentiates itself through:
- Higher power efficiency (95% vs. 90% industry average).
- Built-in cybersecurity features to prevent unauthorized access.
- Extended temperature range (-40°C to 85°C) for extreme environments.
IS220PAICH1A 336A4940CSP3
- Compatibility: Verify compatibility with your existing GE Fanuc control system (e.g., Mark VIe).
- Power Requirements: Ensure the module’s current capacity matches your application’s load.
- Environmental Conditions: Consider temperature, humidity, and vibration levels when installing.
- Install the module in a well-ventilated area to prevent overheating.
- Use shielded cables for communication and power connections.
- Perform annual maintenance checks to test redundancy and protection features.
Shanxi Xinyeda International Trading Co., Ltd. is your trusted partner for
IS220PAICH1A 336A4940CSP3 and other GE Fanuc automation spare parts. Visit
www.xydcontrol.com or contact us for sales and technical support.
