Description
The

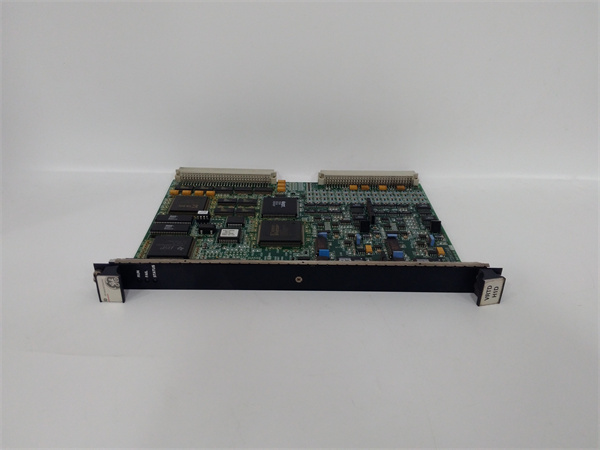

IS200VRTDH1DAB is a notable PLC spare part from General Electric, a well – respected brand in the industrial automation field. This model serves as a crucial component in industrial control systems, primarily designed for temperature measurement and data acquisition. Its core function is to accurately convert the resistance values from Resistance Temperature Detectors (RTDs) into digital temperature data. This data can then be used by the control system to make decisions regarding temperature – related processes, such as heating, cooling, or maintaining a specific temperature setpoint.
The IS200VRTDH1DAB is highly versatile and can be applied in various industries, including manufacturing, energy, and chemical processing. Its main advantage lies in its high – precision temperature measurement and reliable data transfer. By providing accurate temperature information, it helps ensure the quality and efficiency of industrial processes, as well as the safety of equipment and personnel.
| Parameter |
Details |
| Power Supply |
24V DC ±10% |
| Input Type |
RTD (e.g., Pt100) |
| Input Range |
– 200°C to 850°C |
| Measurement Accuracy |
±0.1°C |
| Sampling Rate |
10 samples per second |
| Communication Interface |
Ethernet, Modbus RTU |
| Data Transfer Rate |
Ethernet: 10/100 Mbps; Modbus RTU: 9600 bps |
| Operating Temperature |
– 20°C to 60°C |
| Dimensions |
120mm x 80mm x 60mm |
| Weight |
0.6 kg |
| Compatibility |
Compatible with specific GE PLC series |
- High – precision Measurement: The IS200VRTDH1DAB can measure temperature with an accuracy of ±0.1°C. In a food processing plant, it ensures that the cooking temperature of food products is precisely controlled, maintaining product quality and safety.
- Fast Sampling Rate: With a sampling rate of 10 samples per second, it can quickly detect temperature changes. In a chemical reactor, this fast response allows for immediate adjustment of the heating or cooling system, preventing over – or under – heating.
- Reliable Communication: It supports Ethernet and Modbus RTU communication interfaces, providing reliable data transfer. In a large – scale industrial complex, it can transmit temperature data to a central control room over long distances, enabling real – time monitoring and control.
- Application Fields: The IS200VRTDH1DAB is widely used in manufacturing for temperature control in processes like metalworking and plastics molding, in energy for monitoring the temperature of power generation equipment, and in chemical processing for controlling reaction temperatures.
- Application Case: In a power generation plant, the IS200VRTDH1DAB is used to monitor the temperature of the turbine bearings. By continuously measuring the temperature with high precision, it can detect any abnormal temperature rise early. This early detection allows for timely maintenance, preventing bearing failures and potential power outages.
Compared to other similar temperature measurement modules in the market, the IS200VRTDH1DAB offers several advantages. Its high – precision measurement and fast sampling rate are often superior. Some competing products may have lower measurement accuracy or slower sampling rates, which can lead to inaccurate temperature control and delayed responses to temperature changes. Additionally, the reliable communication capabilities of the IS200VRTDH1DAB make it more suitable for large – scale industrial applications.
- Compatibility: Ensure that the IS200VRTDH1DAB is compatible with your existing GE PLC system. Check the communication protocols, power supply requirements, and the number of available input channels.
- Measurement Requirements: Evaluate your specific temperature measurement requirements, such as the required accuracy, input range, and sampling rate. Choose a module that can meet these requirements.
- Budget: Consider your budget when selecting the module. While the IS200VRTDH1DAB offers high – quality performance, make sure it fits within your financial constraints.
- Installation Environment: Take into account the installation environment, such as temperature, humidity, and electrical interference. If the environment is harsh, choose a module with appropriate protection features.
- Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding to prevent electrical interference. Make sure all connections to the RTD sensors, power supply, and communication interfaces are secure.
- Operation: Do not exceed the specified operating parameters, such as power supply voltage, input temperature range, and temperature limits. Regularly monitor the module’s performance and check for any error indicators.
- Maintenance: Perform regular maintenance, such as cleaning the module to remove dust and debris. Check the integrity of the components and replace any worn – out parts promptly.
Shanxi Xinyeda International Trade Co., Ltd. is your reliable partner. We offer IS200VRTDH1DAB and other automation spare parts sales and technical support. Please visit our website
www.xydcontrol.com or contact us, and we will serve you wholeheartedly.
