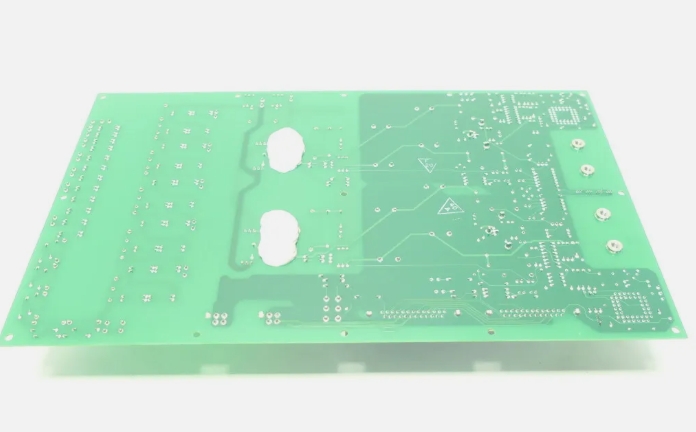

IS200EDEXG1B

Description

1. Product Description

2. Product Parameters

• Product Type: Primary PCB
• Functionality: De – excitation SCR firing, conduction sense feedback, voltage retention during power failures, configurable jumpers
• Capacitors: 8 on – board capacitors
• Compatibility: Integrates well with other GE Industrial Systems products and is part of the EX2100 excitation control series

3. Advantages and Features

• High Reliability: Designed to retain voltage during power failures, it ensures stable power management system operation. For instance, in a power plant, during a sudden power outage, the IS200EDEXG1B can maintain generator field voltage, preventing equipment damage and enabling a smooth transition during power recovery.
• Versatile Configuration: The configurable jumpers allow users to customize the module’s settings according to different system needs, offering great flexibility. In a large industrial complex with multiple power supply scenarios, the IS200EDEXG1B can be easily adjusted to adapt to different load conditions and power supply modes.
• Seamless Integration: As an integral part of the EX2100 excitation control series, it can work in harmony with other components in the system, guaranteeing the overall efficiency and performance of the power control system.
•

4. Application Areas and Application Cases

• Applicable Industries and Scenarios: The IS200EDEXG1B is widely used in the power generation industry, particularly in gas turbine power plants and other power systems that demand precise excitation control and monitoring. It is also suitable for industrial and utility settings where reliable power management is of utmost importance.
• Application Case: In a large gas turbine power plant, the GE IS200EDEXG1B is employed in the EX2100 excitation control system. It accurately controls the generator’s de – excitation process, ensuring that when the turbine needs to be shut down, the excitation current can be safely and rapidly cut off. This not only safeguards the generator and other equipment but also enhances the overall safety and reliability of the power plant’s operation.

5. Comparison with Competitors



6. Selection Suggestions

• Compatibility: Ensure that the IS200EDEXG1B is compatible with your existing GE Mark VI Speedtronic system and other relevant equipment. Check if it can work seamlessly with the EX2100 excitation control series and other components in your power system.
• Function Requirements: Consider your specific power control requirements. If your application requires precise de – excitation control, conduction sense feedback, and reliable voltage retention, the IS200EDEXG1B is a suitable choice.
• Budget: Although the IS200EDEXG1B offers high performance and reliability, it’s necessary to consider your budget. Evaluate the overall cost – effectiveness based on your actual needs and financial situation.

7. Precautions

• Safety Specifications: When installing and using the IS200EDEXG1B, follow the safety regulations in the GEH – 6632 instruction manual. Ensure proper grounding to prevent electrical shock and interference. Since it is a static – sensitive device, take anti – static measures during handling.
• Maintenance Recommendations: Regularly check the module’s operation status and clean the dust on the surface. Follow the maintenance instructions in the manual to perform routine inspections and tests. Keep the software and firmware updated to ensure the module has the latest features and performance improvements.
