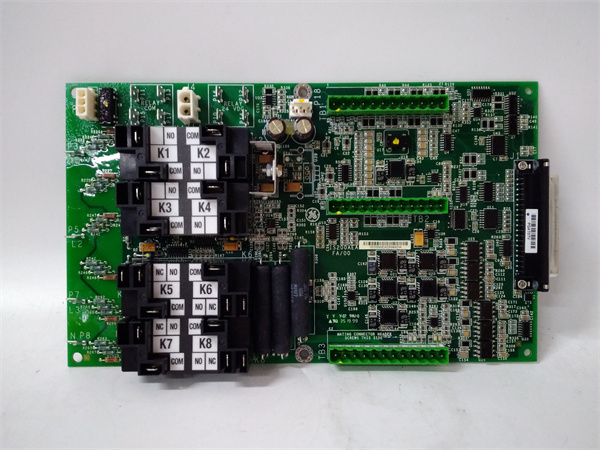

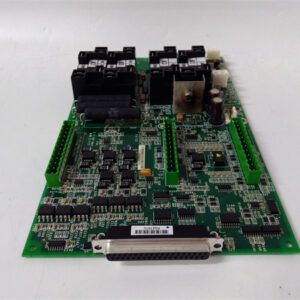

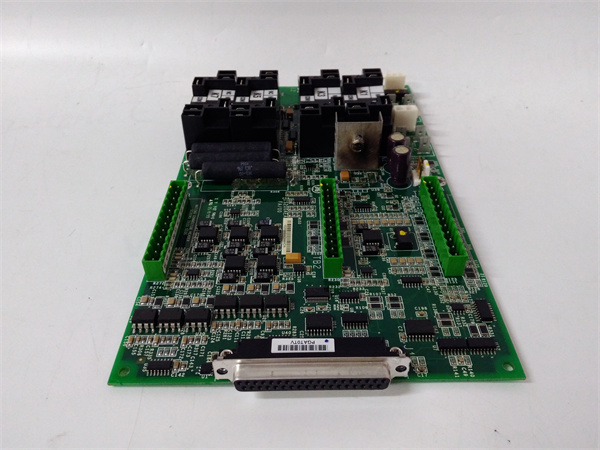

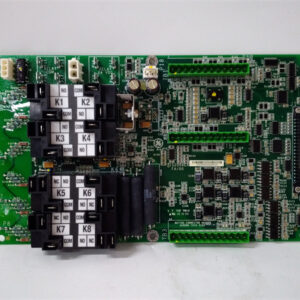

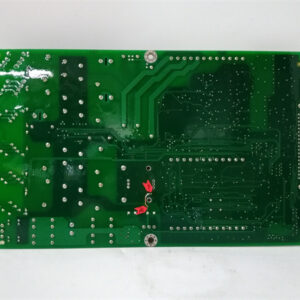

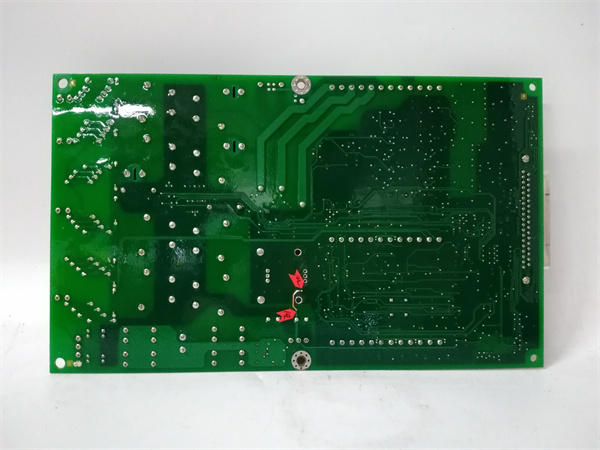

IS200AEADH4ADA

Description

Information on IS200AEADH4ADA GE input/output grid fork board:

Product Description:

IS200AEADH4ADA is an input terminal board developed by General Electric(GE)and is part of the drive control system.Its system I/O interface can directly connect the sensors and actuators of the turbine without the need for additional instruments,simplifying the setup process and reducing potential reliability and maintenance issues related to intermediate instruments.

Product parameters:

Model:IS200AEADH4ADA

manufacturer:

Series:Drive Control

Rated temperature:between 30 and 65 degrees Celsius

features:

Equipped with hardware filters to attenuate high-frequency noise and interference.The hardware filters equipped in the first ten circuits(J3)have a single pole downward circuit breaking function of 500 rad/s;The hardware filter of the second group of 10 circuits(J4)has a two pole down disconnect function at 72 and 500 rad/s.

Featuring software based filter options for a two pole low-pass filter,providing configurable cutoff frequencies including 0,0.75,1.5,3,6,and 12Hz,with customizable filter characteristics according to requirements.

effect:

As an input terminal board,it plays a role in connecting the drive control system with the sensors and actuators of the turbine,achieving signal transmission and conversion,ensuring that the system can accurately receive and process signals from sensors,and transmit control signals to actuators.

Purpose:

Used in the drive control system to monitor and control the operation of the turbine,transmit the operating status information of the turbine to the control system,and perform corresponding operations on the turbine according to the instructions of the control system.

Application areas:

Widely used in the field of industrial automation,especially in large-scale industrial production scenarios involving turbine control,such as power,energy,chemical and other industries.
