Description
The

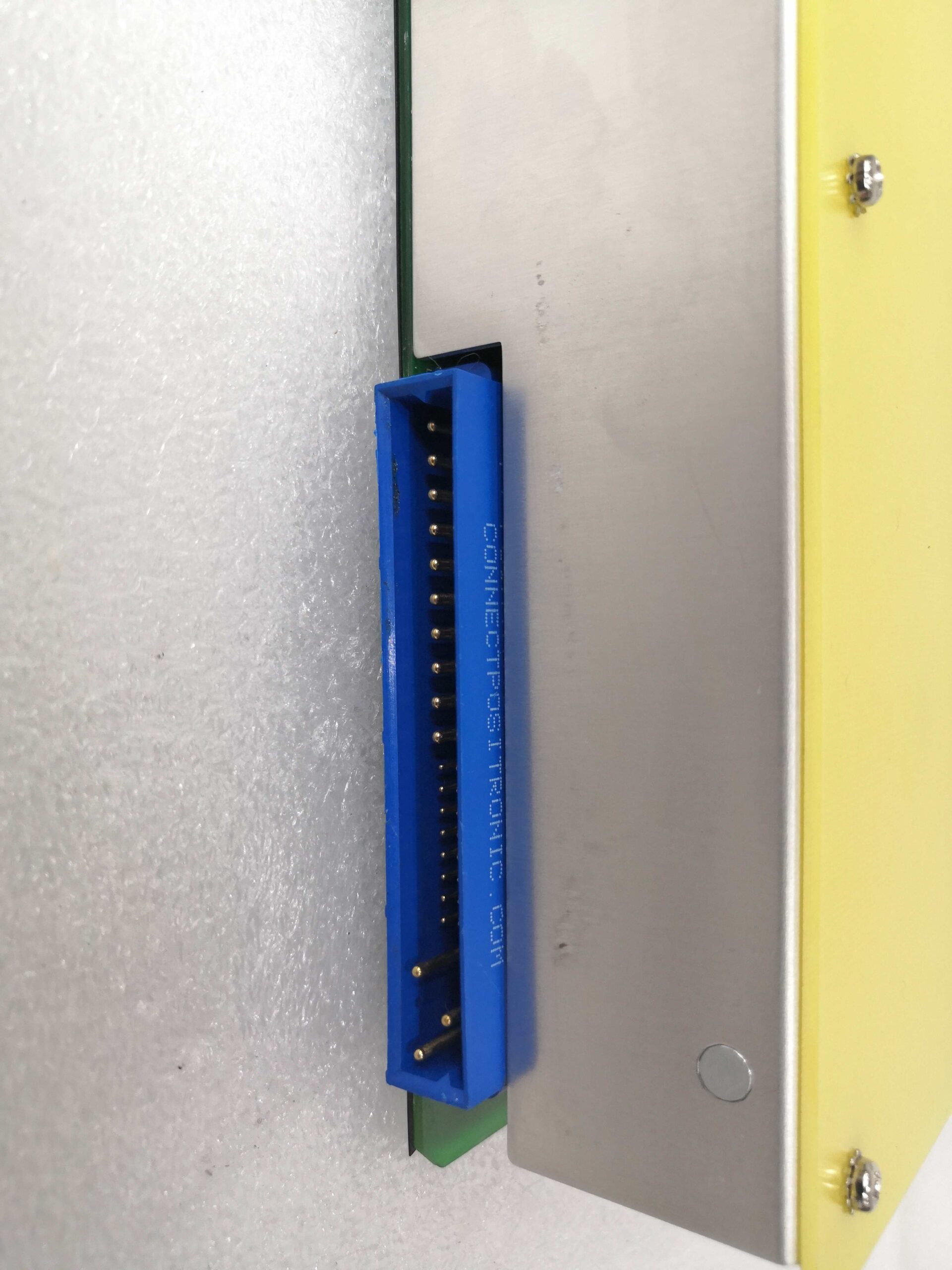

GE IC698PSA100D is a high-reliability power supply module designed for the PACSystem RX7i series, now part of Emerson Automation Solutions. This module provides stable and efficient power distribution to industrial automation systems, ensuring continuous operation of critical components such as PLCs, I/O modules, and field devices. The IC698PSA100D supports a wide input voltage range (85–264 VAC/100–150 VDC), making it adaptable to diverse industrial environments. Its advanced protection features, including overvoltage and overcurrent safeguards, prevent system damage and downtime. With three isolated output voltages (+5 VDC, +12 VDC, -12 VDC), the IC698PSA100D meets the power requirements of various automation subsystems, from digital logic to analog signal conditioning.
| Parameter |
Details |
| Input Voltage |
85–264 VAC (47–63 Hz) or 100–150 VDC |
| Output Voltages |
+5 VDC (20 A), +12 VDC (2 A), -12 VDC (1 A) |
| Total Power |
100 W |
| Overvoltage Protection |
+5 VDC: 5.7–6.7 V; ±12 VDC: 16–18 V |
| Overcurrent Protection |
+5 VDC: 21 A; ±12 VDC: 2.5 A/3.5 A |
| Isolation Voltage |
1,500 VDC |
| Operating Temperature |
0°C–60°C (non-condensing) |
| Dimensions |
177.8 mm × 127 mm × 76.2 mm |
- Wide Voltage Range: Supports both AC and DC inputs, reducing the need for specialized power adapters in global installations.
- High Efficiency: Operates with a power factor ≥0.99, minimizing energy waste and heat generation.
- Robust Protection: Active overvoltage/overcurrent protection ensures safe operation during voltage spikes or load surges.
- Modular Design: Easy integration into PACSystem RX7i racks, enabling quick replacement and scalability.
- Industries: Manufacturing, energy, and chemical processing.
- Application Case: A petrochemical plant deployed the IC698PSA100D to power distributed control systems (DCS) in offshore platforms. Its wide input voltage tolerance and surge protection maintained stable operation during grid fluctuations, reducing downtime by 30%.
Compared to similar power supplies, the IC698PSA100D offers higher output power (100 W vs. typical 75 W) and broader voltage compatibility. Its modular design also simplifies maintenance compared to fixed-mount competitors.
- Compatibility: Ensure the module aligns with PACSystem RX7i rack specifications.
- Power Requirements: Calculate total system power draw to avoid overloading the 100 W capacity.
- Environmental Conditions: Verify temperature and humidity ratings match the installation site.
- Installation: Follow Emerson’s guidelines for proper grounding and ventilation.
- Maintenance: Regularly inspect LED indicators for fault alerts (e.g., “Over Temperature”).
- Safety: Disconnect power before servicing to prevent electric shock.
Shanxi Xinyeda International Trade Co., Ltd. is your reliable partner. We provide sales and technical support for GE IC698PSA100D and other automation spare parts. Please visit our website
www.xydcontrol.com or contact us, and we will be happy to serve you.
