IC697MDL750

Description

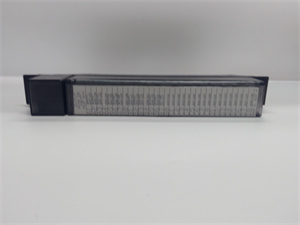

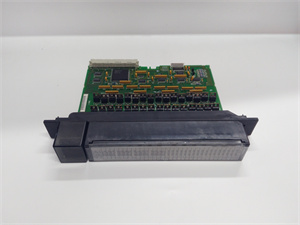

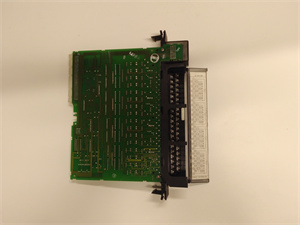

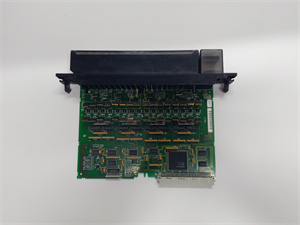

GE IC697MDL750 Product description

The IC697MDL750 is a multifunctional digital output module that provides 32 independent output channels, each group of 8 channels, a total of 4 groups. Each channel can be configured for an output voltage range of 20 to 60 VDC, with A maximum output current of 0.5A per point and 2A per group. With high reliability and flexibility, the module is suitable for various industrial automation applications.

Product parameter

Output channels: 32 independent output channels, divided into 4 groups, each group of 8 channels.

Output voltage: 20 to 60 VDC.

Output current: 0.5A per point, 2A per group.

Power consumption: 0.25A.

Operating temperature: 0°C to 60°C.

Storage temperature: -40°C to 85°C.

Installation mode: Slot installation.

Communication interface: Supports communication and integration with industrial automation equipment.

Product specification

Supply voltage: 12/24 VDC.

Output voltage range: 20 to 60 VDC.

Output current: 0.5A per point, 2A per group.

Power consumption: 0.25A.

Operating temperature range: 0°C to 60°C.

Storage temperature range: -40°C to 85°C.

Size: Standard PLC slot size.

trait

High reliability: Industrial grade design ensures stable operation in harsh environments.

Flexibility: Supports multiple output voltage and current configurations, suitable for different application scenarios.

Security: With point isolation function, improve system security.

Ease of use: Specific automation needs can be met through programming and configuration.

Compatibility: Compatible with a wide range of industrial automation devices and systems, supporting data sharing and collaborative operations.

effect

IC697MDL750 is mainly used in industrial automation control systems to achieve control and protection of various equipment. It can control the switching state of switches, lights, indicators, valves and other equipment, and achieve precise control through programming and configuration.

use

The module is widely used in the following areas:

Industrial automation: Used to control and protect drive belts, pumps, fans and other industrial equipment.

Machinery and equipment: Used to control the start, stop and overload protection of machinery and equipment.

Process control: Provide reliable control functions in the process control system.

Building automation: Motors used to control HVAC equipment, elevators, and other building services.

General industrial applications: Suitable for motor control and protection in various industrial environments.

Application field

IC697MDL750 is widely used in the following industries:

Manufacturing: For production line control and robot control systems.

Energy industry: For remote monitoring and control of power plants and transmission lines.

Transportation: Used in traffic signal control system.

Municipal engineering: Used for sewage treatment and environmental protection projects.

Other industrial fields: such as metallurgy, oil and gas, paper printing and so on.
