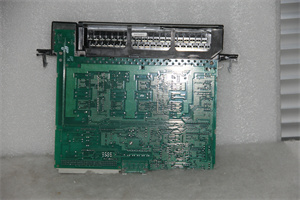

IC697ALG440

Description

1. Product Description

2. Product Parameters

3. Advantages and Features

• High – Precision Conversion: With a 16 – bit resolution, the IC697ALG440 can provide highly accurate analog – to – digital conversion. This allows for precise measurement of physical quantities in industrial processes. For example, in a chemical plant, it can accurately measure the temperature and pressure of chemical reactions, ensuring product quality and process safety.
• Fast Conversion Time: The conversion time of less than 10 milliseconds per channel enables real – time monitoring and control of industrial processes. In a high – speed manufacturing line, it can quickly convert sensor signals, allowing the PLC to make timely control decisions.
• Multiple Input Ranges: The module supports multiple input signal ranges, including ±10V, ±5V, 0 – 10V, 0 – 20mA, and 4 – 20mA. This flexibility makes it suitable for a wide range of industrial sensors, reducing the need for additional signal conditioning devices.
• Reliability: Built to operate in a temperature range of – 20°C to 60°C and withstand electrical noise and mechanical vibrations, the IC697ALG440 has a mean time between failures (MTBF) of over 85,000 hours. This high reliability ensures continuous operation of the industrial automation system, minimizing downtime and maintenance costs.

4. Application Areas and Application Cases

• Application Areas: The IC697ALG440 is widely used in various industries, such as manufacturing, energy, food and beverage, and water treatment. In manufacturing, it can be used for process control, quality monitoring, and equipment diagnostics. In the energy sector, it can monitor and control power generation and distribution systems.
• Application Case: In a food and beverage factory, the IC697ALG440 was used to monitor the temperature and pressure in the pasteurization process. The module received analog signals from temperature and pressure sensors and converted them into digital data. The PLC then used this data to control the heating and cooling systems, ensuring that the pasteurization process was carried out at the correct temperature and pressure. As a result, the quality of the food and beverage products was improved, and the production efficiency was increased.

5. Competing Product Comparison

6. Selection Suggestions

• Input Requirements: Evaluate the number of input channels and the input signal ranges required for your application. The IC697ALG440 has 8 input channels and supports multiple input signal ranges, which should be sufficient for most medium – to large – scale industrial applications.
• Accuracy Requirements: If you need high – precision measurement, the 16 – bit resolution of the IC697ALG440 is a significant advantage. Consider the accuracy requirements of your industrial process and choose a module accordingly.
• Operating Environment: Take into account the temperature, humidity, and electrical noise level of the installation environment. The IC697ALG440’s wide operating temperature range and high resistance to electrical noise make it suitable for harsh industrial environments.
• Budget: While the IC697ALG440 offers high – quality performance, it is important to consider your budget. Compare the cost – performance ratio of different products before making a decision.

7. Precautions

• Installation: Follow the installation instructions provided in the product manual carefully. Ensure proper grounding and wiring to prevent electrical interference and ensure reliable operation.
• Operating Environment: Keep the IC697ALG440 within its specified operating temperature range of – 20°C to 60°C. Avoid exposing it to extreme humidity, dust, or corrosive substances.
• Maintenance: Regularly inspect the module for any signs of damage or wear. Check the connections and clean the components if necessary. Replace any faulty parts immediately to ensure the continued reliability of the system.
