1. Product Overview

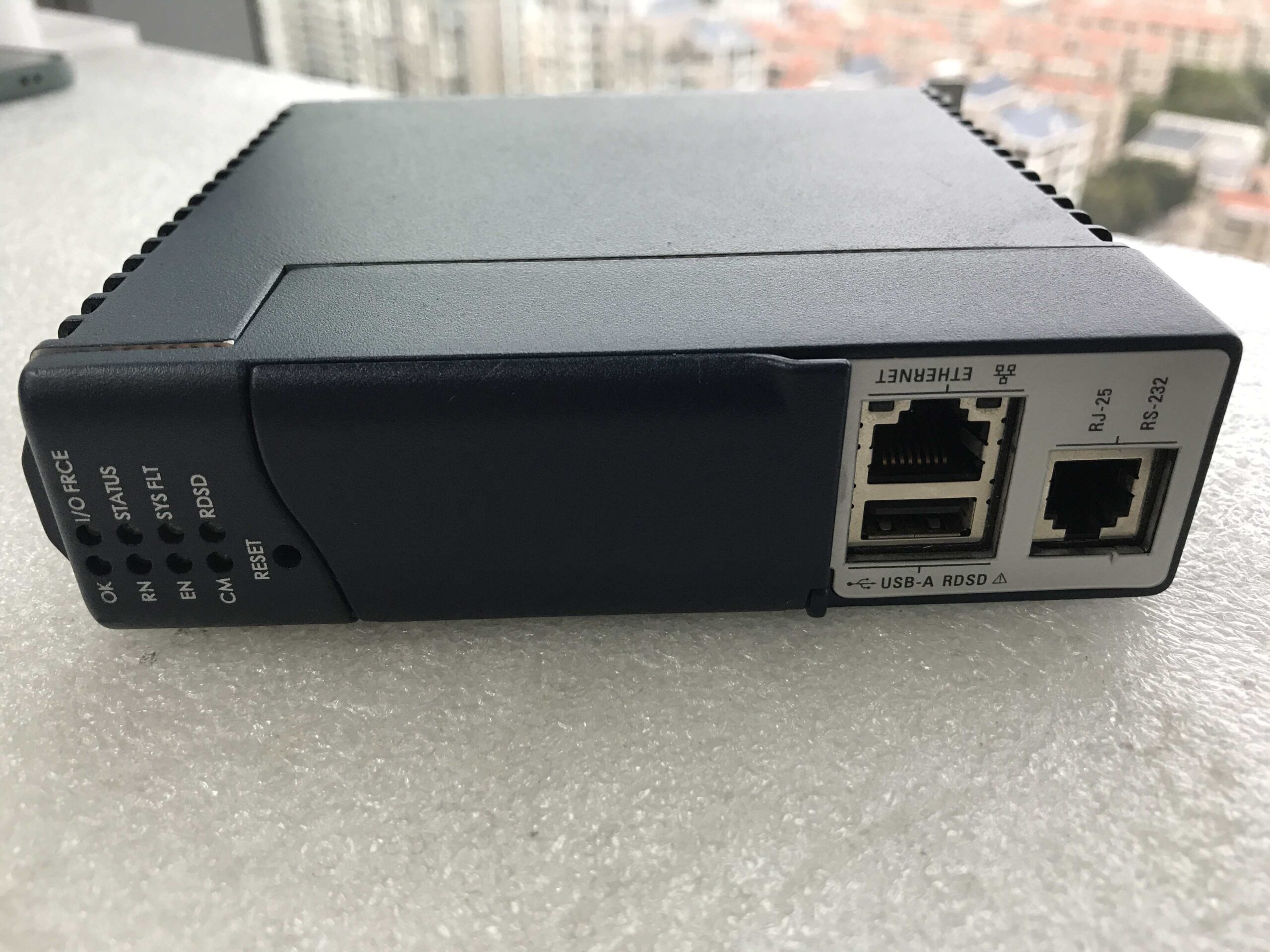

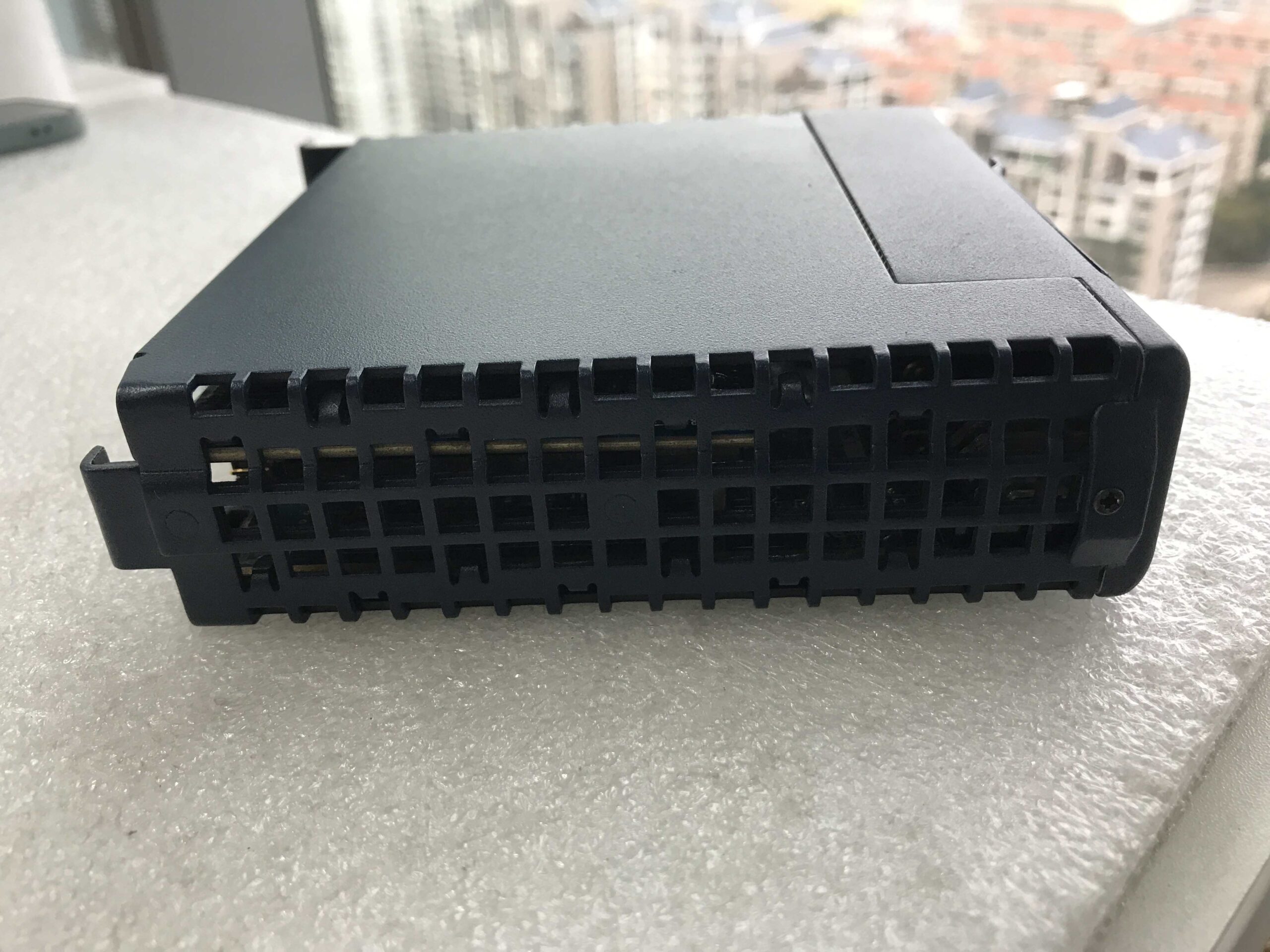

The IC695CPE305, a member of GE Fanuc’s PACSystems RX3i series, is a high – performance central processing unit (CPU) module. It is designed to meet the requirements of industrial automation and control applications. With a 1.1 GHz processor, it offers rapid execution speeds, with a typical scan rate of 0.72 ms per 1000 Boolean instructions. This enables it to handle complex control tasks efficiently.
The module comes with 5 MB of RAM and 5 MB of non – volatile flash memory. This memory configuration allows for the storage of user programs and data, even when the power is turned off. It supports multiple programming languages, including ladder diagram, structured text, function block diagram, and C. This flexibility makes it suitable for a wide range of programming needs.
The IC695CPE305 is also equipped with a variety of communication interfaces. It has two serial ports that support RS – 232 and RS – 485 standards, an Ethernet port for high – speed data transfer, and a USB 2.0 port for easy data transfer. These interfaces allow the module to communicate with other devices, such as HMIs, SCADA systems, and third – party hardware.
2. Technical Parameters
| Parameter | Details |
|---|---|
| Processor Speed | 1.1 GHz |
| Memory | 5 MB RAM, 5 MB non – volatile flash |
| Power Requirements | 3.3 V DC (1 A), 5 V DC (1 A), 24 V DC (0.5 A) |
| Communication Interfaces | Ethernet (10/100 Mbps), RS – 232, RS – 485, USB 2.0 |
| Supported Protocols | Modbus RTU Slave, SNP Slave, Serial I/O, Ethernet (Modbus TCP, PROFINET, etc.) |
| I/O Capacity | 32 K discrete points, 32 K analog points |
| Programming Languages | Ladder diagram, structured text, function block diagram, C |
| Dimensions | Compact single – slot design |
| Weight | Approximately 0.81 kg |
3. Advantages and Features
- High – Performance Processing: The 1.1 GHz processor and fast scan rate ensure that the IC695CPE305 can handle real – time control applications with ease. It can process large amounts of data quickly, making it suitable for complex industrial processes.
- Versatile Communication: The multiple communication interfaces and support for a wide range of protocols allow the module to integrate seamlessly with different systems. This makes it easy to connect to HMIs, SCADA systems, and other industrial devices.
- Reliable Memory: The 5 MB of non – volatile flash memory ensures that user programs and data are retained even when the power is off. Additionally, an optional energy pack can provide backup power during power outages, allowing the module to save data to non – volatile storage.
- User – Friendly Programming: The support for multiple programming languages makes it accessible to a wide range of engineers. Whether they prefer ladder diagram for its simplicity or C for its flexibility, they can use the language they are most comfortable with.
- Wide Temperature Range: The module can operate in temperatures ranging from 0°C to 60°C, making it suitable for use in various industrial environments.
4. Application Areas and Examples
- Industrial Automation: The IC695CPE305 can be used in manufacturing plants to control production lines. It can monitor and control machinery, ensuring smooth and efficient production.
- Energy Management: In power plants, it can be used to monitor and control power generation and distribution. It can help optimize energy usage and ensure the reliable supply of electricity.
- Water Treatment: The module can be used in water treatment facilities to control the treatment process. It can monitor water quality and adjust the treatment parameters as needed.
- Transportation Systems: It can be used in transportation systems, such as railways and airports, to control signaling and other systems. This helps ensure the safe and efficient operation of transportation.
Example: In a car manufacturing plant, the IC695CPE305 was used to control the welding robots. By integrating with the robots and other devices via Ethernet, it ensured precise control of the welding process. This resulted in a 20% improvement in production efficiency and a significant reduction in welding defects.
5. Comparison with Competitors
Compared to other similar products on the market, the IC695CPE305 has several advantages. It offers a higher processor speed (1.1 GHz compared to 0.8 GHz for some competitors), which allows for faster processing of data. It also has more memory (5 MB RAM and 5 MB flash) than many other modules in its class, enabling it to handle larger and more complex programs.
In terms of communication, the IC695CPE305 supports a wider range of protocols, including PROFINET and Modbus TCP. This makes it more versatile and easier to integrate with different systems. Additionally, its USB port allows for easy data transfer, which is not always available on other modules.
6. Selection Recommendations
- Compatibility: Make sure that the IC695CPE305 is compatible with your existing systems and equipment. Check the communication protocols and interfaces to ensure seamless integration.
- Performance Requirements: Consider the processing speed and memory requirements of your application. If you need to handle large amounts of data or complex programs, the IC695CPE305‘s high – performance features will be beneficial.
- Budget: While the IC695CPE305 offers excellent performance and features, it is important to consider your budget. Compare the price with other similar products to ensure you are getting the best value for your money.
- Future Expansion: Think about whether you may need to expand your system in the future. The IC695CPE305‘s scalability and support for multiple communication interfaces make it a good choice for systems that may need to be upgraded later.
7. Precautions
- Power Supply: Ensure that the power supply to the IC695CPE305 is stable and meets the specified requirements. Use a reliable power source to prevent damage to the module.
- Installation Environment: Install the module in a clean and dry environment. Avoid areas with high humidity, dust, or vibrations. Ensure proper ventilation to prevent overheating.
- Programming and Configuration: Follow the instructions in the user manual when programming and configuring the module. Use the recommended software tools to ensure proper operation.
- Maintenance: Regularly check the module for any signs of damage or wear. Clean the module as needed and ensure that all connections are secure.
声明: Shanxi Xinye Industrial Trade Co., Ltd. is a reliable partner for all your automation needs. We offer the IC695CPE305 and a wide range of other automation spare parts. For more information, please visit our website at www.xydcontrol.com or contact us directly. We are committed to providing you with high – quality products and excellent service.
