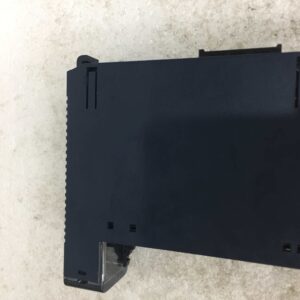

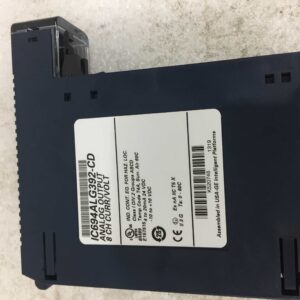

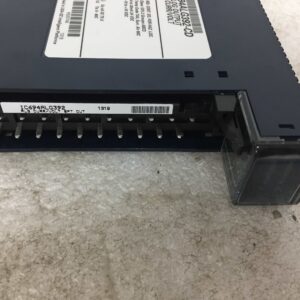

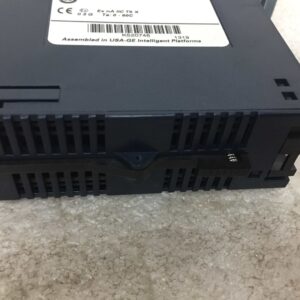

IC694-ALG392

Description

1. Product Description

2. Product Parameters

3. Advantages and Features

• High – Resolution Conversion: With a 16 – bit resolution for both input and output, the IC694 – ALG392 offers high – precision measurement and control. This is essential for applications that require accurate monitoring of physical quantities and precise control of actuators. For example, in a chemical process where precise temperature and pressure control are critical, the high resolution ensures accurate data acquisition and control.
• Multiple Signal Ranges: The module supports a wide variety of input and output signal ranges. This flexibility allows it to be used with different types of sensors and actuators, eliminating the need for additional signal conditioning equipment. For instance, it can directly interface with sensors that output 4 – 20mA signals or 0 – 10V signals.
• Fast Conversion Time: The fast conversion times (less than 10 ms per input channel and less than 5 ms per output channel) enable real – time control and monitoring. In high – speed industrial processes such as automated manufacturing lines, the quick conversion ensures that the PLC can respond promptly to changes in the process variables.
• Reliability: Built to operate in a temperature range of – 20°C to 60°C and withstand electrical noise and mechanical vibrations, the module has a mean time between failures (MTBF) of over 85,000 hours. This high reliability reduces the risk of system downtime and maintenance costs in industrial applications.

4. Application Areas and Application Cases

• Application Areas: The IC694 – ALG392 is widely used in various industries, including manufacturing, energy, food and beverage, and water treatment. In manufacturing, it can be used for process control, quality monitoring, and equipment diagnostics. In the energy sector, it can monitor and control power generation and distribution systems.
• Application Case: In a water treatment plant, the IC694 – ALG392 was used to monitor the water level, pH, and flow rate. The analog input channels received signals from sensors installed in the water tanks and pipes. The high – resolution input conversion allowed for accurate measurement of these parameters. Based on the measured values, the PLC sent control signals through the analog output channels to adjust the valves and pumps, ensuring proper water treatment and distribution.

5. Competing Product Comparison

6. Selection Suggestions

• I/O Requirements: Evaluate the number of analog input and output channels you need for your application. The 8 input and 4 output channels of the IC694 – ALG392 should be sufficient for many medium – sized industrial applications. However, if you have a larger – scale system, you may need to consider multiple modules or a different model with more channels.
• Signal Range Compatibility: Check the signal ranges of your sensors and actuators. The multiple selectable signal ranges of the IC694 – ALG392 provide flexibility, but make sure they match the requirements of your specific application.
• Accuracy and Speed Requirements: If your application requires high – precision measurement and fast response times, the high resolution and fast conversion times of the IC694 – ALG392 are significant advantages.
• Operating Environment: Consider the temperature, humidity, and electrical noise level of the installation environment. The module’s wide operating temperature range and resistance to electrical noise make it suitable for harsh industrial settings.
• Budget: While the IC694 – ALG392 offers high – quality performance, it is important to consider your budget. Compare the cost – performance ratio of different products before making a decision.

7. Precautions

• Installation: Follow the installation instructions provided in the product manual carefully. Incorrect wiring or improper grounding can lead to inaccurate measurements or malfunctions. Ensure that the module is properly installed in the PLC chassis and that all connections are secure.
• Operating Environment: Keep the module within its specified operating temperature range of – 20°C to 60°C. Avoid exposing it to extreme humidity, dust, or corrosive substances. Regularly inspect the module for any signs of damage or wear.
• Maintenance: Periodically check the module’s performance, including the accuracy of input and output signals. Replace any faulty components immediately to ensure the continued reliability of the system. Clean the module and its connections to prevent dust and debris from affecting its operation.
