IC693PWR321S

Description

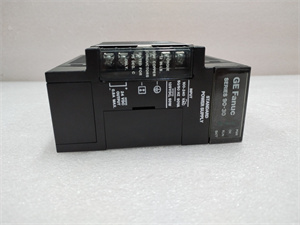

GE IC693PWR321S Product description

The IC693PWR321S is a standard power module used to provide stable power support for GE programmable logic controllers (PLCS) and their I/O modules. It has a variety of output voltage and current configurations to meet the power needs of different modules.

Product parameter

Input voltage: 120/240 VAC or 125 VDC

Output voltage:

+5VDC (±5%)

+24VDC (relay output)

+24VDC (isolated output)

Output current: 3A (Max)

Rated power: 30W

Operating temperature range: -40°C to +70°C

Storage temperature range: -40°C to +85°C

Protection level: IP20

Dimensions: 90 x 30 x 25 mm (L x W x H)

Weight: 100g (about 0.2kg)

Product specification

Mounting method: DIN rail mounting

Cooling method: natural cooling

Overcurrent protection: Built-in overcurrent protection function

Short-circuit protection: Built-in short-circuit protection

Overvoltage protection: Built-in overvoltage protection function

Indicator: Indicates the status indicator of the power supply

trait

Multiple output: Provides multiple voltage outputs, including +5VDC, +24VDC, and +24VDC isolated outputs, to meet the power supply requirements of different modules

High reliability: Industrial design, with high stability and reliability

Wide input voltage range: Support AC 120/240V or DC 125V input, adapt to different regional power grid voltage

High performance: Up to 95% efficiency, reducing energy consumption and operating costs

Redundant configuration: Supports redundant power supply configurations to improve system reliability

effect

The main function of the IC693PWR321S is to provide stable power support for the PLC system to ensure the normal operation of the system. It also has a system protection function to prevent failures such as overload, short circuit and overvoltage to ensure safe and reliable operation of the equipment.

use

The IC693PWR321S is used in the following scenarios:

Industrial Automation: Provides power support for PLC and I/O modules in various industrial automation systems

Process control: Provides a stable power supply for sensors and actuators in the process control system

Logistics: Provide power support for automation equipment in the logistics system

Application field

The IC693PWR321S is used in a wide range of industries, including but not limited to:

Manufacturing: Automobile manufacturing, electronic manufacturing, food processing, packaging, textile, etc

Petrochemical: Sensor and actuator power supply in process control systems

Power industry: power monitoring systems and wind power generation control systems

Transportation: rail transit signal control system, highway monitoring system

Chemical industry: chemical automation control system
