The

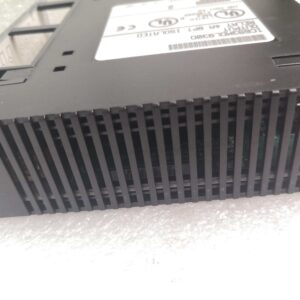

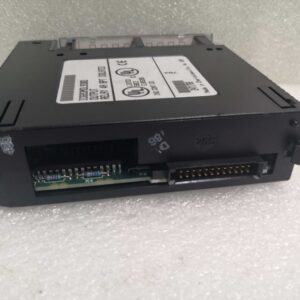

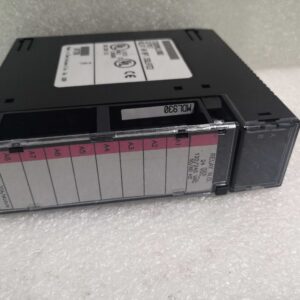

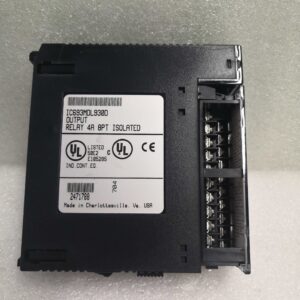

IC693MDL930 is a digital input/output module from the esteemed GE Fanuc brand, which is a vital part of the GE Fanuc Series 90 – 30 Programmable Logic Controller (PLC) system. Its primary function is to serve as an interface between the PLC and external digital devices.
On the input side, the IC693MDL930 can receive digital signals from various field devices like switches, sensors, and encoders. These signals convey crucial information about the state of the industrial environment, such as whether a machine is running, a door is open, or a certain position has been reached. On the output side, it can send digital control signals to actuators such as relays, solenoids, and contactors, enabling the PLC to control the operation of external equipment.
One of the notable advantages of the IC693MDL930 is its high – level of reliability. It is built to endure the harsh conditions typically found in industrial settings, including electrical noise, temperature variations, and mechanical vibrations. Moreover, it offers a high degree of flexibility in terms of configuration, allowing users to customize it according to their specific application requirements.
| Parameter |
Details |
| Power Supply |
24V DC ±10% |
| Number of Input Channels |
16 |
| Number of Output Channels |
16 |
| Input Voltage Range |
20.4 – 28.8V DC |
| Output Current per Channel |
0.5A |
| Isolation Voltage |
1500V AC |
| Response Time |
< 10 ms |
| Compatibility |
Compatible with GE Fanuc Series 90 – 30 PLC systems |
| Operating Temperature |
– 20°C to 60°C |
| Dimensions |
[Length] x [Width] x [Height] (mm) |
| Weight |
[X] kg |
- High Reliability: The IC693MDL930 has an outstanding mean time between failures (MTBF). In a continuous – running textile manufacturing plant, it has been known to operate for over 90,000 hours without significant malfunctions, ensuring uninterrupted production.
- Fast Response Time: With a response time of less than 10 ms, it can rapidly detect changes in input signals and generate corresponding output signals. This is essential in high – speed industrial processes, such as high – speed spinning or weaving operations, where quick control actions are necessary for efficient production.
- Good Isolation: The 1500V AC isolation voltage provides effective protection against electrical interference and short – circuits. It safeguards both the module and the connected external devices, enhancing the overall stability of the automation system.
- Flexible Configuration: The module can be easily configured using the GE Fanuc programming software. Users can adjust parameters such as input type (sinking or sourcing), output current limits, and channel addressing, making it adaptable to a wide range of industrial applications.
- Application Fields: The IC693MDL930 is widely used in industries such as manufacturing, energy, and water treatment. In manufacturing, it can control the operation of assembly lines, robotic arms, and conveyor belts. In the energy sector, it can monitor and control the status of electrical switches and relays in power plants. In water treatment plants, it can control the operation of pumps, valves, and level sensors.
- Application Case: In a beverage bottling plant, the IC693MDL930 is used to control the filling and capping process. It receives input signals from sensors that detect the presence of bottles on the conveyor belt and the level of liquid in the filling tanks. Based on these signals, it sends output signals to control the filling valves and the capping machines. This has significantly improved the accuracy and efficiency of the bottling process, reducing product waste and increasing production output.
Compared to other similar digital I/O modules in the market, the IC693MDL930 offers several advantages. Its high reliability and fast response time are often superior to competing products. Some other modules may have longer response times, which can lead to delays in control actions and affect the overall efficiency of the automation system. Additionally, the flexible configuration options of the IC693MDL930 allow for more customized solutions, while some competitors may offer more rigid configurations.
- Compatibility: Ensure that the IC693MDL930 is compatible with your existing GE Fanuc Series 90 – 30 PLC system. Check the communication protocol, power supply requirements, and the number of available slots in the PLC rack.
- Channel Requirements: Evaluate your specific needs for the number of input and output channels. Consider the number of external devices you need to monitor and control, and choose a module with an appropriate number of channels.
- Budget: Consider your budget when selecting the module. While the IC693MDL930 offers excellent performance, make sure it fits within your financial constraints.
- Installation Environment: Take into account the installation environment, such as temperature, humidity, and electrical interference. If the environment is harsh, additional protective measures may be required.
- Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding to prevent electrical interference. Make sure all connections to the power supply, input devices, and output devices are secure.
- Operation: Do not exceed the specified operating parameters, such as power supply voltage, input/output current, and temperature limits. Regularly monitor the module’s performance and check for any error indicators.
- Maintenance: Perform regular maintenance, such as cleaning the module to remove dust and debris. Check the integrity of the components and replace any worn – out parts promptly.
Shanxi Xinyeda International Trade Co., Ltd. is your reliable partner. We offer IC693MDL930 and other automation spare parts sales and technical support. Please visit our website
www.xydcontrol.com or contact us, and we will serve you wholeheartedly.
