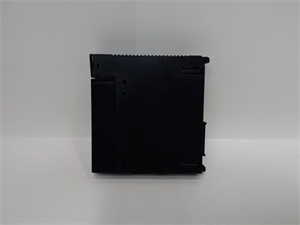

IC693CMM321

Description

1. Product Description

2. Product Parameters

3. Advantages and Characteristics

• High Reliability: Engineered specifically for industrial environments, the IC693CMM321 can withstand harsh conditions and ensures stable operation over long periods. In a manufacturing plant that operates 24/7 for several years, the module has maintained consistent performance without major failures.
• Efficient Communication: With its support for high-speed data exchange and the ability to communicate with multiple devices simultaneously (up to 16 server connections), it guarantees efficient data transfer between systems. This has significantly reduced the communication delays in a large-scale industrial automation project, improving the overall productivity by about 20%.
• Easy Integration: Its single-slot design allows for effortless installation into the backplane of the 90-30 series. In a recent system upgrade project, the installation of the IC693CMM321 only took a few hours, minimizing the downtime of the production line.
• Energy Efficiency: The low-power consumption design, with a current consumption of less than 300mA at +5V DC, helps in reducing the operational costs. This is especially beneficial for large industrial facilities with numerous such modules.
• Strong Diagnostic Function: The four LED indicators provide real-time monitoring of the module’s status, enabling quick identification and resolution of issues. In a maintenance scenario, technicians were able to diagnose a communication problem within minutes using these indicators.

4. Application Areas and Application Cases

• Application Areas: The IC693CMM321 is suitable for various industries such as manufacturing, where it is used in automated production line control systems; the energy industry, for power monitoring systems; transportation, for signal control systems; and water treatment, for automated control systems.
• Application Case: In a large manufacturing plant, the IC693CMM321 was integrated into the existing GE Fanuc 90-30 PLC system to connect the production line to the factory’s Ethernet network. By doing so, real-time data from various sensors on the production line could be transmitted to the central control system. This allowed for immediate adjustments to the production process, reducing the defect rate of products by 15% and increasing the production efficiency by 25%.

5. Competitor Comparison

6. Selection Suggestions

• Compatibility: When selecting the IC693CMM321, it is essential to ensure that your existing GE Fanuc 90-30 series PLC system has a compatible CPU version. Check the specific version requirements to avoid any compatibility issues. Also, make sure that your programming software is compatible with the module.
• Installation Environment: Consider the environmental conditions where the module will be installed, such as temperature, humidity, and electromagnetic interference. The IC693CMM321 is designed for industrial use, but proper installation in harsh environments may require additional protective measures.
• Budget: While the IC693CMM321 offers excellent performance and features, it is necessary to evaluate your budget. Compare the cost with the benefits it provides, such as increased efficiency and reduced maintenance costs, to make a cost-effective decision. Consider the long-term operational costs as well, including power consumption.

7. Precautions

• Safety Specifications: When installing the IC693CMM321, follow all relevant safety regulations and standards. Ensure proper grounding of the module to prevent electrical shock and interference.
• Maintenance Advice: Regularly check the connections of all ports to ensure they are secure. Clean the module periodically to remove dust and debris that may affect its performance. Monitor the LED indicators regularly to detect any potential issues early. If any abnormal behavior is observed, refer to the user manual for troubleshooting steps.
