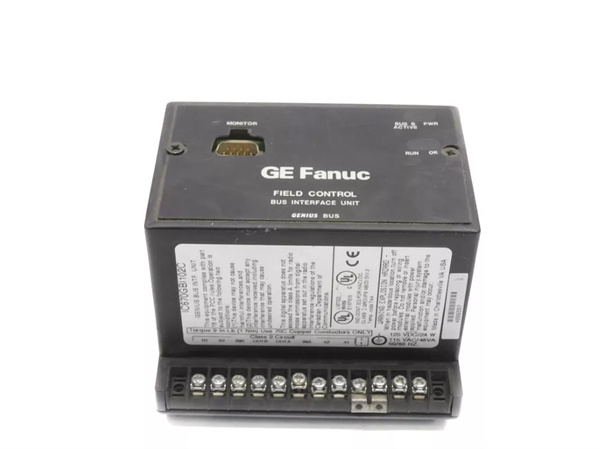

IC670GBI102C

Description

1. Product Description

2. Product Parameters

3. Advantages and Features

• High Reliability: With a Mean Time Between Failures (MTBF) of over 183,000 hours, the IC670GBI102C can operate stably in harsh industrial environments. For example, in a continuous – running chemical plant where the production process cannot afford frequent disruptions, this module has been used to ensure seamless communication between different I/O devices for years, with minimal failures reported.
• Flexible Baud Rate Support: The ability to support multiple Profibus transmission speeds gives it great flexibility. In a manufacturing facility with a mix of older and newer equipment, the IC670GBI102C can be configured to communicate with devices operating at different speeds, ensuring compatibility and efficient data transfer throughout the system.
• Easy Integration: It can host up to eight field control I/O modules, which simplifies the integration process. In a food and beverage production line, the module was used to connect various sensors, actuators, and control devices, reducing the complexity of wiring and system setup.
• Good Environmental Adaptability: Operating temperature range from 0 – 55°C and storage temperature range from – 40 – 85°C, along with a relative humidity range of 5% – 95% (non – condensing), make it suitable for a wide variety of industrial environments, from cold storage areas to hot processing plants.

4. Application Areas and Application Cases

• Applicable Industries and Scenarios:
  • Manufacturing: In manufacturing plants, it is used to connect and control various production line equipment. For instance, in an automotive assembly line, it can link sensors that detect the position of car parts with robotic arms that perform the assembly tasks, ensuring smooth and accurate production.
  • Energy: In power generation plants, whether it is a fossil – fuel – based power plant or a renewable energy facility like a wind farm, the IC670GBI102C can be used to interface with different I/O modules for monitoring and controlling power generation processes. In a wind farm, it connects sensors that measure wind speed and direction to the control system of the wind turbines, optimizing power generation.
  • Water Treatment: In water treatment plants, it plays a role in connecting sensors that monitor water quality parameters such as pH, turbidity, and dissolved oxygen levels to the control valves and pumps that regulate the water treatment process.
• Application Case: In a large – scale textile manufacturing factory, the IC670GBI102C was used to connect multiple I/O modules controlling different parts of the production process. These included sensors on spinning machines that detected thread breaks and actuators that adjusted the speed of looms. By using the IC670GBI102C, the factory was able to centralize the control and monitoring of these devices. As a result, the production efficiency increased by 20% due to reduced downtime from equipment malfunctions and better – coordinated operations.

5. 竞品对比

6. Selection Suggestions

• Compatibility: First, ensure that the IC670GBI102C is compatible with your existing GE Field Control series components, such as IC670GB and IC670GBI modules. Check if your host GE CPU and other I/O modules can communicate effectively with this interface module.
• Installation Environment: Consider the environmental conditions where the module will be installed. If the temperature in the installation area is outside the 0 – 55°C operating range or the humidity is not within the 5% – 95% non – condensing range, additional environmental control measures may be required.
• Function Requirements: Evaluate your specific function requirements. If you need to connect a large number of I/O modules (up to eight in this case), the IC670GBI102C is a good choice. Also, if your network has devices operating at different Profibus speeds, its ability to support multiple baud rates makes it suitable.
• Budget: While the IC670GBI102C offers many advanced features, compare its cost with the value it brings to your project. Sometimes, a more expensive module with better performance and reliability may be more cost – effective in the long run, especially for critical industrial applications.

7. Precautions

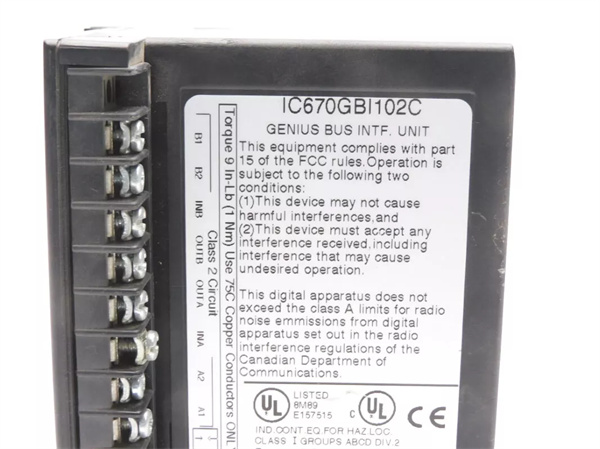

• Installation: When installing the IC670GBI102C, carefully follow the installation instructions. Ensure that the screw – type terminals for the Genius bus and the connection of the 9 – pin D – shell monitor port are correctly made. Incorrect wiring can lead to communication failures or damage to the module.
• Power Supply: Use a stable power source that meets the voltage requirements of 90 – 135V AC or 105 – 150V DC. Fluctuations in power supply can cause the module to malfunction. Consider using a power conditioner or an uninterruptible power supply (UPS) to ensure stable power during operation.
• Configuration: When configuring the module, especially when setting the baud rate and other communication parameters, double – check the settings. Incorrect configuration can result in communication problems with other devices in the network.
• Maintenance: Regularly check the module for any signs of overheating, loose connections, or abnormal behavior. Clean the module periodically to remove dust, as dust accumulation can affect its performance, especially in high – humidity environments.
