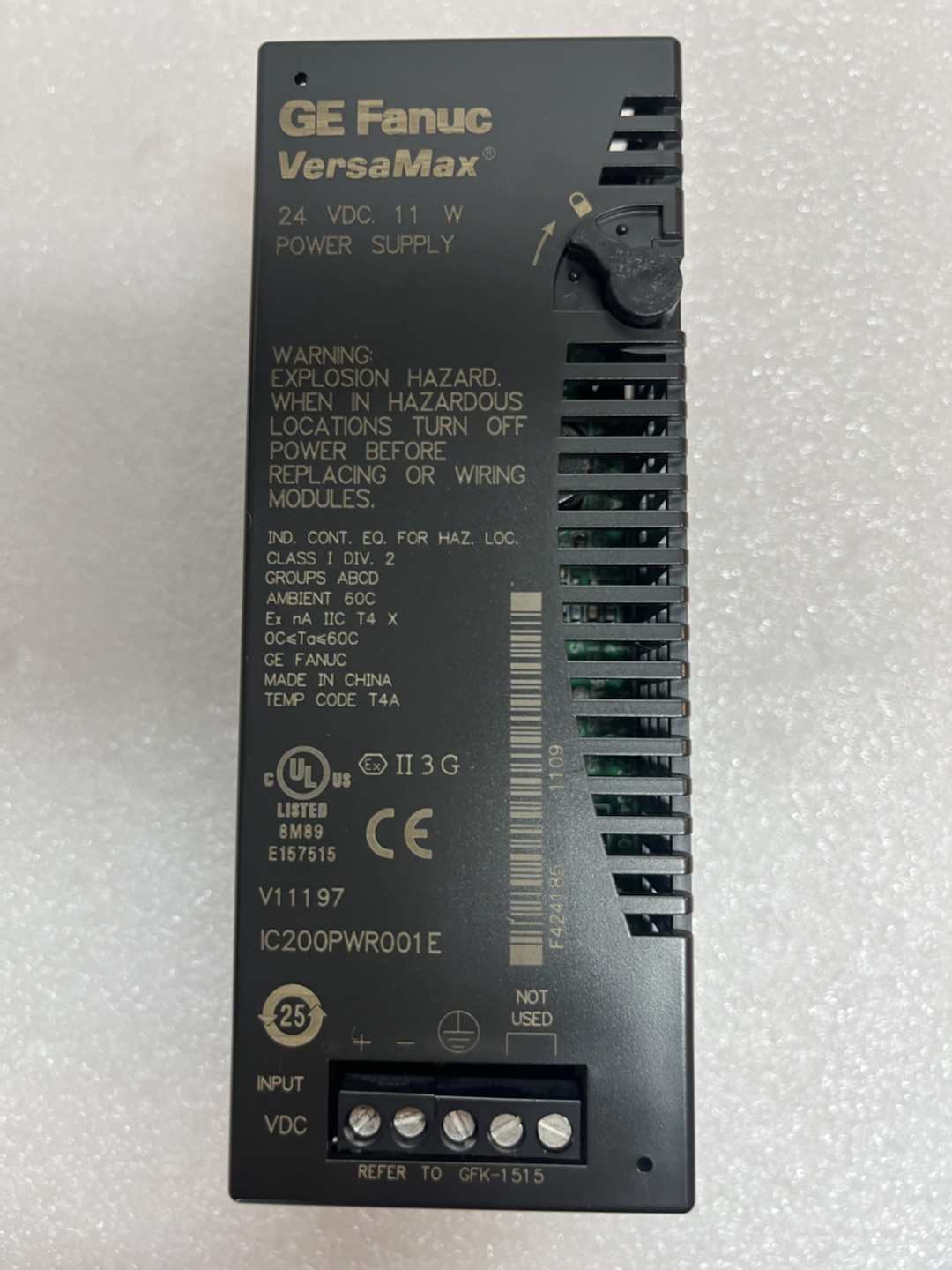

IC200PWR001

Description

1. Product Overview

2. Function

• Power Conversion: Its primary function is to convert the input power from an external source into the appropriate voltage levels required by the IC200 series modules. It can accept a range of input voltages, such as AC or DC, and transform them into the standard 5V DC and 24V DC outputs commonly used by the PLC’s CPU, I/O, and communication modules.
• Power Distribution: Once the power is converted, the IC200PWR001 distributes it to the different slots in the PLC rack. This ensures that each module receives the correct amount of power to operate properly and perform its specific functions, whether it’s processing data, controlling external devices, or communicating with other systems.
•

3. Technical Parameters

• Input Power:
  • It can typically accept an input voltage range of 100 – 240V AC or 24V DC. This wide input range allows it to be used in different electrical environments around the world.
• Output Power:
  • 5V DC Output: It provides a regulated 5V DC output with a certain current – carrying capacity, usually rated in amperes. This 5V output is mainly used to power the internal logic circuits of the modules in the PLC system.
  • 24V DC Output: The 24V DC output is used to power external devices connected to the I/O modules, such as sensors, actuators, and relays. The current rating for the 24V output is also specified, and it needs to be sufficient to meet the power requirements of all the connected devices.
• Power Efficiency: The module has a certain level of power efficiency, which indicates how effectively it converts the input power into usable output power. A higher efficiency means less power is wasted as heat, resulting in lower energy consumption and reduced operating costs.
• Over – Current and Over – Voltage Protection: It is equipped with over – current and over – voltage protection mechanisms. In case of a short – circuit or an abnormal voltage spike in the system, these protections will activate to prevent damage to the power supply module and the other connected modules.
• Isolation: There is electrical isolation between the input and output circuits, typically with an isolation voltage rating of 1500V AC. This isolation helps to protect the PLC system from electrical interference and surges coming from the input power source.
• Operating Temperature Range: The module is designed to operate within a specific temperature range, usually from – 20°C to 60°C. This allows it to be used in a variety of industrial environments, from cold storage facilities to hot manufacturing plants.

4. Advantages

• Reliability: GE Fanuc’s reputation for quality is reflected in the reliability of the IC200PWR001. It is built with high – quality components and undergoes strict testing during the manufacturing process. This ensures a long mean – time – between – failures (MTBF), reducing the risk of power – related downtime in industrial applications.
• Compatibility: As part of the IC200 series, it is fully compatible with all other modules in the series. This simplifies the system design and integration process, as users can easily combine different modules without having to worry about power – compatibility issues.
• Flexibility: The wide input voltage range and the ability to provide both 5V and 24V outputs make it a flexible power supply solution for different industrial setups. Whether in a small – scale automation project or a large – scale industrial plant, it can be configured to meet the specific power requirements.

5. Application Fields

• Manufacturing: In manufacturing plants, the IC200PWR001 powers the PLC systems that control assembly lines, robotic arms, and other automated machinery. A stable power supply is crucial for the accurate and reliable operation of these devices, ensuring consistent product quality.
• Energy Sector: In power generation, distribution, and monitoring systems, the power supply module is used to power the PLCs that control generators, transformers, and switchgear. It helps to maintain the stability and safety of the energy infrastructure.
• Water Treatment: In water treatment plants, it powers the PLCs that control pumps, valves, and sensors for water purification, filtration, and distribution processes. A reliable power source is essential to ensure the continuous and efficient operation of these critical processes.
•

6. Selection Considerations

• Power Requirements: Calculate the total power consumption of all the modules in your IC200 PLC system, including the CPU, I/O, and communication modules, as well as any external devices connected to the I/O. Make sure the IC200PWR001 can provide sufficient power (both 5V and 24V) to meet these requirements.
• Input Power Source: Consider the available input power source in your industrial environment. Whether it’s AC or DC, and the specific voltage range, should match the input capabilities of the power supply module.
• Budget: While the reliability and performance of the IC200PWR001 are important, also consider your budget. Compare the cost of the module with other similar products in the market, but keep in mind that a high – quality power supply can save you money in the long run by reducing the risk of system failures and downtime.

7. Precautions

• Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding to prevent electrical interference and to protect the module from electrical surges. Make sure all connections to the input power source and the PLC rack are secure.
• Operation: Do not exceed the specified input voltage range or the maximum output current ratings. Regularly monitor the temperature of the module, as overheating can indicate a problem with the power supply or an overloaded system.
• Maintenance: Periodically inspect the module for any signs of damage, such as loose connections, burnt components, or abnormal noises. Clean the module to remove dust and debris, which can affect its performance and heat dissipation. Replace any faulty parts immediately to maintain the reliability of the power supply.
