Description
The

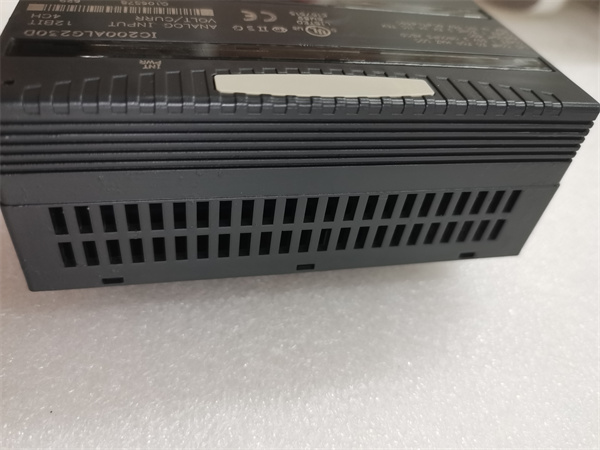

IC200ALG230 is an analog input/output module produced by the well – respected GE Fanuc brand. In the realm of industrial automation, the
IC200ALG230 serves a vital function. Its core task is to handle analog signals, which are crucial for interacting with real – world processes.
The module is designed to interface with various analog sensors and actuators. It can accurately measure continuous physical quantities such as temperature, pressure, and flow rate through its analog input channels. Based on the data received and the control algorithms in the PLC, it can generate appropriate analog output signals to control devices like variable – speed drives and proportional valves.
The advantage of the IC200ALG230 is its high precision and reliability. It can provide accurate data acquisition and control in complex industrial environments, ensuring the stability and efficiency of the production process.
| Parameter |
Details |
| Power Supply |
24V DC ±10% |
| Number of Analog Input Channels |
8 |
| Number of Analog Output Channels |
4 |
| Input Signal Range |
0 – 10V, 4 – 20mA, etc. |
| Output Signal Range |
0 – 10V, 4 – 20mA |
| Resolution |
12 – bit |
| Sampling Rate |
Up to 100 samples per second |
| Compatibility |
Compatible with GE Fanuc IC200 series PLC systems |
- High Precision: The 12 – bit resolution of the IC200ALG230 allows it to detect very small changes in analog signals. For example, in a chemical process where precise temperature control is required, it can measure temperature variations with an accuracy of up to ±0.1°C, ensuring the quality and consistency of the chemical reaction.
- Versatility: It supports multiple input and output signal ranges, making it suitable for a wide variety of industrial applications. Whether it is a sensor that outputs a voltage signal or a current signal, the module can handle it effectively.
- Reliability: Built with high – quality components, the IC200ALG230 has a long mean time between failures (MTBF) of over 40,000 hours. This reliability is crucial in continuous – running industrial processes, reducing downtime and maintenance costs.
- Application Fields: The IC200ALG230 is widely used in industries such as manufacturing, energy, and water treatment. In manufacturing, it can be used for process control in metalworking, plastic molding, and food processing. In the energy sector, it can monitor and control power generation equipment, such as turbines and generators. In water treatment plants, it can control the flow and dosage of chemicals.
- Application Case: In a power generation plant, the IC200ALG230 is used to monitor the temperature and pressure of the steam in a turbine. The module collects analog signals from temperature and pressure sensors and sends them to the PLC. Based on the data, the PLC can adjust the steam flow and other parameters to ensure the safe and efficient operation of the turbine. This application has significantly improved the power generation efficiency and reduced the risk of equipment failure.
Compared to other similar analog I/O modules in the market, the IC200ALG230 stands out for its high precision and wide signal range support. Some competing products may have lower resolution, which leads to less accurate data acquisition and control. Additionally, the IC200ALG230 offers better reliability, with a longer MTBF, which is a significant advantage in industrial applications where continuous operation is required.
- Compatibility: Ensure that the IC200ALG230 is compatible with your existing GE Fanuc IC200 series PLC system. Check the communication protocol, power supply requirements, and the number of available slots in the PLC rack.
- Performance Requirements: Evaluate your specific requirements for the number of input and output channels, signal resolution, and sampling rate. For applications that require high – speed data acquisition, choose a module with a higher sampling rate.
- Budget: Consider your budget when selecting the module. While the IC200ALG230 offers excellent performance, make sure it fits within your financial constraints.
- Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding to prevent electrical interference. Make sure all connections to sensors, actuators, and the PLC are secure.
- Operation: Do not exceed the specified operating parameters, such as power supply voltage, input/output signal ranges, and temperature limits. Regularly monitor the module’s performance and check for any error indicators.
- Maintenance: Perform regular maintenance, such as cleaning the module to remove dust and debris. Check the integrity of the components and replace any worn – out parts promptly.
Shanxi Xinyeda International Trade Co., Ltd. is your reliable partner. We offer IC200ALG230 and other automation spare parts sales and technical support. Please visit our website
www.xydcontrol.com or contact us, and we will serve you wholeheartedly.
