GE IC693CPU374-GU

Description

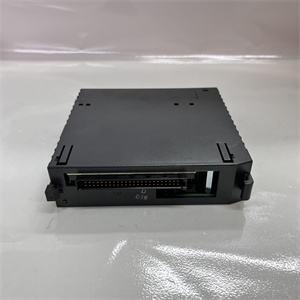

1.Product Description: GE Fanuc IC693CPU374-GU PLC Processor Module

2. Product Parameters

Parameter	Specification
Processor	32-bit RISC, 133 MHz
Memory	240 KB user memory
Communication Interfaces	2x Ethernet (10/100 Mbps, RJ-45), 1x RS-485/RS-232
I/O Capacity	Up to 4,096 I/O points
Scan Cycle	0.15 ms/1K logic (布尔逻辑)
Power Supply	5V DC
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 85°C
Dimensions	110 mm x 50 mm x 25 mm
Weight	~150 g
Mounting	DIN rail
Protocol Support	Modbus TCP, Modbus RTU, CANopen, Profibus DP, SNP/SNPX

IC693CPU374-GU

3. Advantages and Features

• High Performance: The 133 MHz 32-bit RISC processor ensures rapid execution of complex control logic, with a scan cycle of 0.15 ms/1K logic—20% faster than standard industrial CPUs.
• Versatile Connectivity: Two built-in Ethernet ports enable simultaneous communication with HMIs, SCADA systems, and programming devices, while the RS-485 port supports legacy network integration.
• Reliability: Rated for IP67 protection and a wide temperature range (-20°C to 60°C), the IC693CPU374-GU operates reliably in harsh industrial environments, withstanding vibrations and electrical noise.
• Flexible Configuration: User memory (240 KB) and configurable registers (128–32,640 words) adapt to diverse applications, supporting up to 2,000 timers/counters.

4. Application Areas and Use Cases

• Manufacturing (production lines, robotics)
• Process control (oil/gas, power, metallurgy)
• Smart buildings (HVAC, lighting control)
• Data acquisition and remote monitoring

5. Competitive Comparison

• Dual Ethernet Ports: Most 竞品 provide one port, limiting concurrent communication.
• Faster Scan Cycle: 0.15 ms/1K logic vs. 0.2–0.3 ms/1K logic for comparable models.
• Wide Temperature Range: Supports -20°C operation, extending usability in extreme climates.


  IC693CPU374-GU

6. Selection Recommendations

• Compatibility: Ensure compatibility with GE Fanuc Series 90-30 racks and programming software (VersaPro 2.03+, CIMPLICITY ME 2.60+).
• Environment: For outdoor or high-temperature sites, leverage the -20°C to 60°C operating range.
• Scalability: Pair with GE I/O modules (e.g., IC693MDL730, IC693MDL940H) for modular system expansion.
• Budget: Balance performance and cost—the IC693CPU374-GU offers premium features at a 15% lower cost than high-end redundant CPUs.

7. Precautions

• Installation: Follow DIN rail mounting guidelines; ensure proper grounding to prevent EMI.
• Power Stability: Use a filtered 5V DC power supply to avoid voltage fluctuations.
• Software Updates: Regularly update firmware via GE’s Proficy software to access new protocols and bug fixes.
• Maintenance: Clean dust from vents annually; inspect cable connections for wear.
