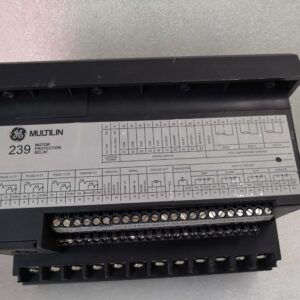

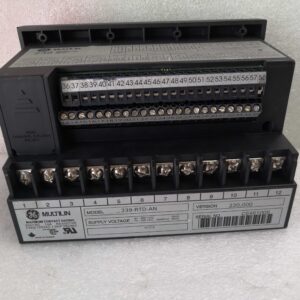

GE 239-RTD-AN

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Input Type	RTD (Pt100, Pt500, Ni100, Cu50, custom)
Channels	8 isolated channels
Voltage	24V DC (±10%)
Accuracy	±0.1% of reading + 0.1°C
Temperature Range	-200°C to +850°C (depending on RTD type)
Interface	Modular connectivity (GE PLC 背板接口)
Isolation	500V DC (channel-to-channel/channel-to-ground)
Dimensions	100 mm (W) × 125 mm (H) × 60 mm (D)

239-RTD-AN

3. Advantages and Features

• High Precision: Achieves ±0.1°C accuracy, ensuring reliable temperature control in sensitive processes.
• Wide Compatibility: Supports multiple RTD types and custom configurations for versatile applications.
• Robust Design: Galvanic isolation and EMI/RFI protection enable operation in high-noise environments.
• Diagnostic Capabilities: Real-time error detection (open circuit, short circuit, sensor failure) for proactive maintenance.
• Energy Efficiency: Low power consumption (<2W) reduces operational costs.
• Case Study: In a chemical plant, the 239-RTD-AN improved reactor temperature control accuracy by 30%, minimizing product waste and optimizing energy usage.

4. Application Areas and Cases

• Industries: Manufacturing, energy, oil & gas, chemical processing, HVAC.
• Scenarios: Temperature monitoring in reactors, boilers, ovens, and refrigeration systems.
• Application Case: A food processing plant integrated the 239-RTD-AN into its pasteurization line, achieving ±0.5°C stability across 50 sensors, ensuring compliance with safety standards and reducing downtime.

5. Competitive Comparison

Compared to similar RTD modules, the GE 239-RTD-AN offers superior noise immunity (500V DC isolation vs. industry standard 250V DC) and faster response times (100ms update rate). Its modular design allows for easy expansion (up to 32 channels per PLC rack), outperforming fixed-channel alternatives.

239-RTD-AN

6. Selection Recommendations

• Compatibility: Ensure compatibility with your GE PLC system (e.g., Series 90-30/70).
• Environment: Rated for -40°C to +70°C ambient temperature; suitable for harsh industrial settings.
• Channels: Choose 8-channel configuration for cost-effective small-scale projects; scale with additional modules for larger systems.
• Budget: Balances performance and cost, offering a 20% lower total cost of ownership over premium alternatives due to reduced maintenance.

7. Precautions

• Installation: Follow DIN-rail mounting guidelines; ensure proper grounding to prevent noise interference.
• Sensor Wiring: Use shielded cables (24AWG or thicker) for long-distance installations (>50m).
• Calibration: Factory-calibrated; periodic re-calibration (every 2 years) recommended for critical applications.
• Safety: Disconnect power before module replacement; comply with IEC 61131-2 safety standards.
