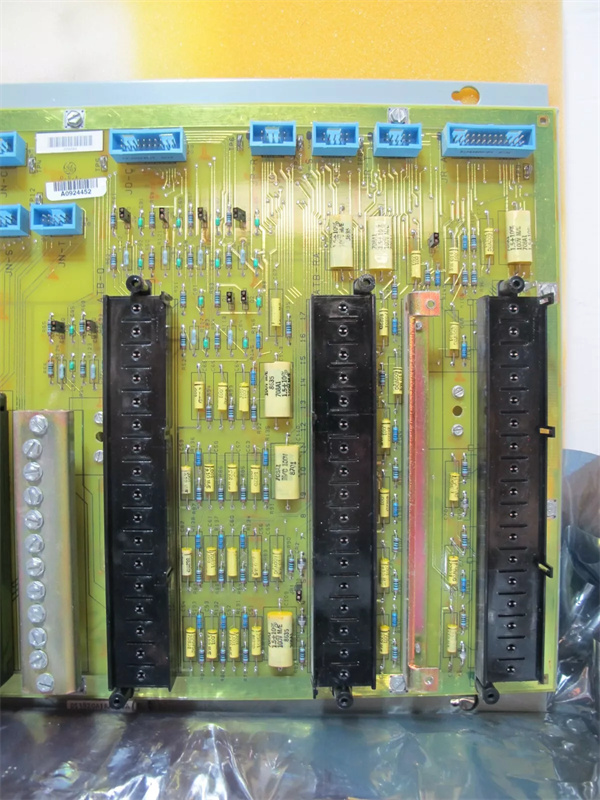

DS3800XAIC1C1C

Description

1. Product Description

2. Product Parameters

• Voltage: Typically operates at standard industrial voltages, around 24V DC or 110V/220V AC
• Current: The current consumption is relatively low, usually within a few amperes depending on the specific load
• Interface Type: It is equipped with multiple male connector pins for easy connection to other components and systems
• Compatibility: Specifically designed to be compatible with the GE Speedtronic Mark IV gas turbine control system

3. Advantages and Characteristics

• High Reliability: Withstand long-term operation in harsh industrial environments. For example, in a power plant where the gas turbine operates continuously for long periods, the DS3800XAIC1C1C has demonstrated excellent stability, with a failure rate of less than 1% over a year of operation.
• Accurate Signal Processing: Capable of precisely processing and transmitting analog signals, ensuring the accurate control of the gas turbine’s parameters. It can achieve signal accuracy within ±0.5% of the actual value.
• Easy Maintenance: The modular design makes it easy to install, replace and maintain, reducing downtime and maintenance costs.

4. Application Areas and Application Cases

• Application Areas: Mainly used in the energy industry, especially in gas turbine control systems in power plants, as well as in industrial automation scenarios that require high-precision analog signal processing and control, such as the petrochemical industry and metallurgy.
• Application Case: In a large power plant, the DS3800XAIC1C1C is used in the GE Speedtronic Mark IV gas turbine control system. It accurately controls the fuel supply and combustion process of the gas turbine according to the load demand, improving the efficiency and stability of power generation. As a result, the power plant has achieved a 5% increase in power generation efficiency and a significant reduction in maintenance costs.

5. Comparison with Similar Products

6. Selection Suggestions

• Compatibility: Ensure that the selected DS3800XAIC1C1C is compatible with your existing GE Mark IV gas turbine control system to avoid integration problems.
• Installation Environment: Consider the installation space and environmental conditions. The board should be installed in a clean, dry and well-ventilated place to prevent dust and moisture from affecting its performance.
• Budget: Although the DS3800XAIC1C1C offers high performance and quality, it is necessary to consider your budget. Evaluate the cost-effectiveness based on your actual needs and financial situation.

7. Precautions

• Safety Specifications: When installing and operating the DS3800XAIC1C1C, ensure that you follow the relevant safety regulations and procedures to avoid electric shock and other safety hazards.
• Static Electricity Prevention: The board is sensitive to static electricity. Use anti-static equipment and measures during handling and installation to prevent damage to the board caused by static electricity.
• Regular Maintenance: Perform regular inspections and maintenance to check for loose connections, component damage and other issues. Replace damaged components in a timely manner to ensure the normal operation of the board.
