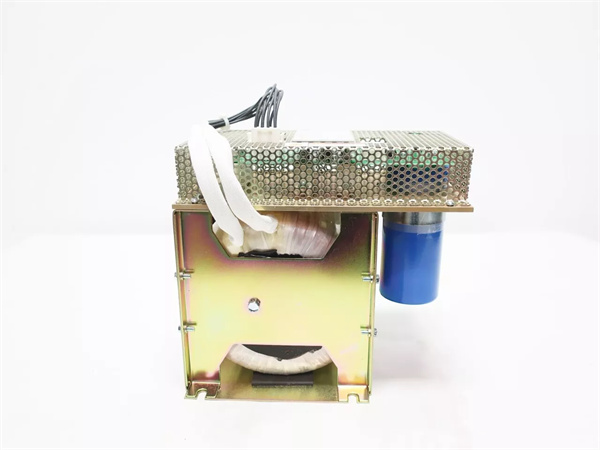

DS2020DACAG1

Description

1. Product Description

2. Product Parameters

3. Advantages and Features

• High Reliability: Backed by GE’s extensive engineering expertise and strict quality control measures, DS2020DACAG1 has a proven track record of reliable operation. In a power plant environment, where continuous operation is critical, this module can withstand high – stress conditions over long periods. For instance, in a large – scale power generation facility, the module has been known to operate for over 10,000 hours without significant failures.
• Stable Output: The module’s advanced circuitry ensures a stable DC output, with voltage regulation within a tight tolerance. This stability is essential for maintaining the proper functioning of the excitation controller, which in turn controls the generator’s output voltage. For example, in a wind farm where the input power can be variable, the stable output of DS2020DACAG1 helps in maintaining a consistent power output from the generators.
• Wide Operating Temperature Range: With an operating temperature range of – 30°C to + 65°C, DS2020DACAG1 can be used in diverse geographical locations and industrial settings. Whether it’s a cold – climate power plant in the Arctic or a hot – climate manufacturing facility in the desert, this module can adapt to the ambient temperature conditions.

4. Application Areas and Application Cases

• Application Areas:
  • Power Generation: In power plants, both thermal and renewable, such as wind and hydro – electric, DS2020DACAG1 is used to power the excitation controllers of generators.
  • Industrial Automation: It can be applied in large – scale manufacturing plants where stable DC power is required for controlling motors, robotic systems, and other automated equipment.
• Application Case: In a large – scale solar power plant, the DS2020DACAG1 was integrated into the generator’s excitation control system. Due to the intermittent nature of solar power, the input power to the module varied. However, the DS2020DACAG1 was able to convert the AC power from the solar inverters into a stable 125VDC output. This stable power supply ensured that the excitation controller could accurately regulate the generator’s output voltage, maximizing the power output and efficiency of the solar power plant.

5. Competitor Comparison

6. Selection Suggestions

• Compatibility: Ensure that the DS2020DACAG1 is compatible with your existing equipment, especially the excitation controller. Check the input and output voltage requirements, as well as any communication or control interfaces that might be required for seamless integration.
• Operating Environment: Consider the ambient temperature and humidity of the installation location. If the environment is extreme, the wide operating temperature range of DS2020DACAG1 makes it a suitable choice. However, if the conditions are mild, other more cost – effective options might be available.
• Budget: While DS2020DACAG1 offers high – quality performance and reliability, it’s important to balance your budget. Compare the cost of this module with similar products in terms of features and performance to ensure you get the best value for your money.

7. Precautions

• Installation: Follow the installation instructions provided by GE carefully. Ensure proper grounding to prevent electrical shock and to maintain the stability of the power conversion. When mounting the module, make sure it is in a well – ventilated area to prevent overheating.
• Operation: Do not exceed the specified input voltage range. Over – voltage can damage the module and potentially cause system failures. Regularly monitor the output voltage to ensure it remains within the specified tolerance.
• Maintenance: Periodically check for any signs of physical damage, such as cracks or loose connections. Clean the module if it is exposed to dust or other contaminants, as this can affect its performance.
