Description
The

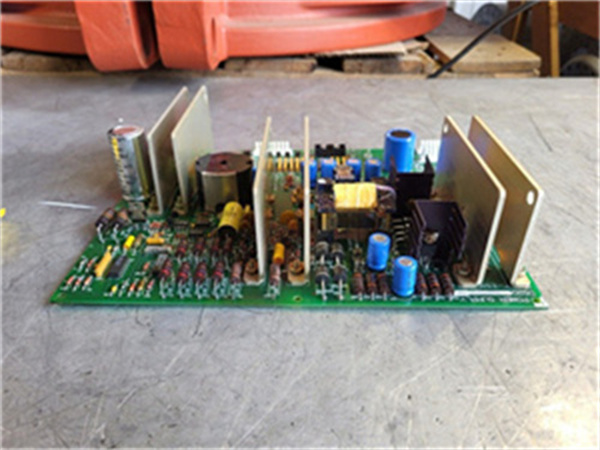

DS200TCPSG1A is a well – known PLC spare part from a leading brand in the industrial automation domain. This model is an integral part of many industrial control systems, offering essential functions for efficient operation. Its core function is to handle power supply and distribution within the control system, ensuring that all connected components receive a stable and reliable power source. It can regulate the input power to meet the specific voltage and current requirements of various modules, such as processors, input – output units, and communication interfaces.
The DS200TCPSG1A is widely used in industries like manufacturing, energy, and transportation. Its main advantage is its high – quality power conversion and supply stability. By providing a consistent power supply, it helps prevent malfunctions and data loss in the control system, ensuring the smooth operation of industrial processes.
| Parameter |
Details |
| Input Power |
100 – 240V AC, 50/60Hz |
| Output Voltage |
24V DC |
| Output Current |
10A |
| Power Efficiency |
> 90% |
| Over – current Protection |
Automatically trips at 12A |
| Over – voltage Protection |
Protects against voltages up to 28V DC |
| Isolation Voltage |
1500V AC |
| Operating Temperature |
– 20°C to 60°C |
| Dimensions |
150mm x 100mm x 50mm |
| Weight |
1 kg |
| Compatibility |
Compatible with specific series of the brand’s PLC systems |
- High – quality Power Conversion: The DS200TCPSG1A can convert the input AC power into a stable 24V DC output with high precision. In a continuous – running manufacturing plant, it has maintained the output voltage within ±0.5% of the rated value, ensuring the proper operation of sensitive electronic components.
- Efficient Energy Utilization: With a power efficiency of over 90%, it reduces energy waste. In a large – scale industrial complex, this efficiency can lead to significant cost savings over time. For example, in a power – hungry data center, the efficient power conversion of the DS200TCPSG1A helps lower the overall energy consumption.
- Comprehensive Protection Mechanisms: It is equipped with over – current and over – voltage protection. In case of a short – circuit or voltage spike in the system, the over – current protection will quickly disconnect the power supply, preventing damage to the module and other connected components. The over – voltage protection safeguards the system from excessive voltage, ensuring the safety of the entire control system.
- Application Fields: The DS200TCPSG1A is commonly used in manufacturing for powering automated production lines, in energy for powering control systems in power plants and substations, and in transportation for powering control units in trains and vehicles.
- Application Case: In an automotive assembly plant, the DS200TCPSG1A powers the control system of the robotic welding stations. The stable power supply ensures that the robotic arms can perform precise welding operations. Any power instability could lead to defective welds and production delays, but the reliability of the DS200TCPSG1A has maintained a high – quality and efficient production process.
Compared to other similar power supply modules in the market, the DS200TCPSG1A offers several advantages. Its high – quality power conversion and efficient energy utilization are often superior. Some competing products may have lower power efficiency or less precise voltage regulation, which can lead to energy waste and component malfunctions. Additionally, the comprehensive protection mechanisms of the DS200TCPSG1A make it more suitable for complex and demanding industrial environments.
- Compatibility: Ensure that the DS200TCPSG1A is compatible with your existing PLC system. Check the input and output power requirements, as well as the physical dimensions and mounting options.
- Power Requirements: Calculate the total power consumption of all the modules in your control system. Select a power supply module with sufficient output current and voltage to meet the system’s actual needs.
- Budget: Consider your budget while also factoring in the long – term benefits of the product. Although the DS200TCPSG1A offers high – quality performance, make sure it fits within your financial constraints.
- Installation Environment: Evaluate the installation environment, including temperature, humidity, and electrical interference. If the environment is harsh, you may need to take additional protective measures or choose a more suitable model.
- Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding to prevent electrical interference and ensure the safety of the power supply module and the entire system. Make sure all connections to the input power source and the control system rack are secure.
- Operation: Do not exceed the specified operating parameters, such as input voltage range, output current limits, and temperature limits. Regularly monitor the power supply module for any signs of overheating or abnormal operation.
- Maintenance: Conduct regular maintenance, such as cleaning the module to remove dust and debris. Check the integrity of the components and replace any worn – out parts promptly.
Shanxi Xinyeda International Trade Co., Ltd. is your reliable partner. We offer DS200TCPSG1A and other automation spare parts sales and technical support. Please visit our website
www.xydcontrol.com or contact us, and we will serve you wholeheartedly.
