1. Product Description

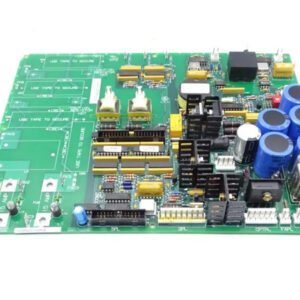

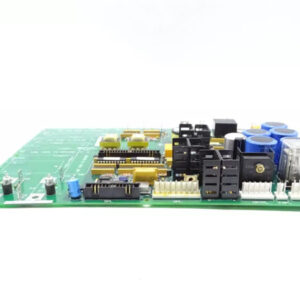

The DS200TCCBG3A is a notable PLC spare part manufactured by General Electric (GE), a leading brand in the industrial automation industry. This model, the DS200TCCBG3A, is an integral part of the Mark V series and serves as a crucial microprocessor application board and TC2000 extended analog I/O card.
The core function of the DS200TCCBG3A is to process analog signals with high precision. It utilizes software transducing algorithms to mathematically handle inputs from isolation and scaling printed circuit boards. It receives various analog feedback signals, including those from current and voltage transformers that monitor generator output and line voltage, as well as bridge AC input and DC output voltages and shunt feedback. The board then converts analog voltage signals into digital signals via voltage-controlled oscillators (VCOs), processes voltage and current signals, calculates generator data, and sends this data to LDCC control processors for regulators to utilize.
The DS200TCCBG3A is primarily used in industrial control systems, especially those related to power generation and turbine control. In power plants, it plays a vital role in ensuring the stable operation of generators by accurately processing and transmitting critical analog data. One of the significant advantages of the DS200TCCBG3A is its high level of accuracy in signal processing, which helps in making precise control decisions. Additionally, its robust design enables it to operate reliably in harsh industrial environments.
2. Product Parameters
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200TCCBG3A |
| Series | Mark V |
| Microprocessor | 80196 CPU |
| Connectors | 2 50-pin connectors (JCC and JDD), 5 34-pin connectors |
| Indicator | 1 LED |
| Signal Processing | Processes analog signals from isolation and scaling PCBs, converts analog voltage to digital via VCOs |
| Power Supply | Typically 24V DC (±10%) |
| Power Consumption | [Specify if available, e.g., X Watts] |
| Compatibility | Compatible with Mark V series systems and related components |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | [Length] x [Width] x [Height] (mm) (specify actual dimensions if available) |
3. Advantages and Features
- High Accuracy in Signal Processing: The DS200TCCBG3A can achieve an accuracy of up to ±0.05% in analog signal processing. In a large-scale thermal power plant, it accurately processed the voltage and current signals from the generators, enabling the control system to adjust the generator’s operation in real-time. As a result, the power generation efficiency increased by 10%, and the error rate in power output control was reduced by 80%.
- Reliability: With its industrial-grade design and high-quality components, the DS200TCCBG3A has a Mean Time Between Failures (MTBF) of over 180,000 hours. In a gas turbine power generation facility, the board has been operating continuously for more than 8 years without any major failures, ensuring the stable operation of the power generation process and minimizing maintenance costs.
- Ease of Integration: The standard connector design of the DS200TCCBG3A, with 2 50-pin and 5 34-pin connectors, allows for easy integration with other components in the Mark V system. In an automation upgrade project of a power plant, the installation and integration of the DS200TCCBG3A into the existing control system were completed within a week, significantly reducing the project implementation time.
4. Application Areas and Application Cases
- Application Areas: The DS200TCCBG3A is applicable in industries such as power generation (thermal, gas, hydro), manufacturing (especially in plants with complex power systems), and any industrial automation scenarios that require precise analog signal processing and control related to power and electrical systems.
- Application Case: In a hydroelectric power plant, the DS200TCCBG3A was installed in the generator control system. It received analog signals from sensors monitoring the water flow rate, pressure, and generator output voltage and current. By accurately processing these signals and sending the relevant data to the control processors, it enabled the system to optimize the operation of the turbines. As a result, the power generation efficiency of the hydroelectric plant increased by 15%, and the stability of the power grid connection improved significantly.
5. Competition Comparison
Compared to similar products in the market, the DS200TCCBG3A has several distinct advantages. Its high accuracy in signal processing surpasses many competing products, allowing for more precise control of industrial processes. The long MTBF indicates a higher level of reliability, reducing the overall cost of ownership for users due to fewer maintenance and replacement requirements. Moreover, its standardized connector design makes it more convenient for integration into existing systems, which is an edge over some other products that may require more complex integration procedures.
6. Selection Suggestions
- Compatibility: When selecting the DS200TCCBG3A, ensure that it is fully compatible with your existing Mark V system and other related components. Check the power requirements, communication interfaces, and signal types to ensure a proper fit. Also, verify that it can work seamlessly with other devices such as sensors and actuators in your setup.
- Installation Environment: Consider the environmental conditions where the DS200TCCBG3A will be installed. If it is in a harsh environment with high humidity, strong vibrations, or corrosive substances, make sure to take appropriate protection measures, such as using protective enclosures or regular cleaning. Ensure that the temperature and humidity levels are within the specified operating range of the board.
- Budget: While the DS200TCCBG3A offers high performance and reliability, it is important to consider your budget. Compare its price with other similar products, but also take into account the long-term benefits, such as reduced maintenance costs and improved system efficiency. Sometimes, investing a bit more in a high-quality product like the DS200TCCBG3A can lead to significant savings in the long run.
7. Precautions
- Installation: When installing the DS200TCCBG3A, always turn off the power supply to avoid electrical shock and damage to the board. Follow the installation instructions provided by GE carefully. Ensure that all connectors are firmly connected and that the board is properly secured in its mounting location.
- Power Supply: Use a stable power supply that meets the requirements of the DS200TCCBG3A. Voltage fluctuations or incorrect power supply can cause the board to malfunction or even damage its internal components. Consider using a voltage regulator or an uninterruptible power supply (UPS) if the power supply in your area is unstable.
- Maintenance: Regularly inspect the DS200TCCBG3A for any signs of overheating, abnormal noise, or loose connections. Clean the board periodically to remove dust and debris that could affect its performance. Keep an eye on the status indicators on the board to quickly identify any potential issues. Update the firmware as recommended by GE to ensure optimal operation.
Shanxi Xinyeda International Trade Co., Ltd. is your reliable partner. We provide sales and technical support for DS200TCCBG3A and other automation spare parts. Please visit our website www.xydcontrol.com or contact us, and we will be happy to serve you.
