FBM202 P0926EQ

Description

FBM202 P0926EQ FOXBORO thermocouple/mV input module detailed explanation

Product Overview

FBM202 P0926EQ is a channel isolated thermocouple/mV input module produced by FOXBORO,mainly used in industrial automation control systems.This module is capable of receiving inputs from various thermocouples or mV signal sources and converting them into standard digital signals for processing and control by PLC(Programmable Logic Controller).

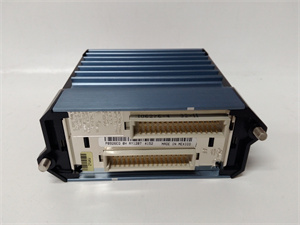

FBM202 P0926EQ FOXBORO

Product Features

8-way isolated input:The module provides 8 independent isolated input channels,which can simultaneously connect 8 thermocouples or mV signal sources.Each channel is isolated from each other,improving the system’s anti-interference ability.

Multiple types of thermocouples:Supports multiple types of thermocouples,such as K-type,J-type,T-type,etc.,to meet different temperature measurement needs.

High precision:It has high measurement accuracy and can accurately reflect temperature changes.

Modular design:Modular design facilitates installation and maintenance.

High reliability:Industrial grade components are used,which have high reliability.

Product parameters and specifications

Model:FBM202 P0926EQ

Input type:thermocouple/mV

Input signal range:Depending on the selected thermocouple type

Input impedance:high impedance

Working temperature:-20℃~+60℃

Working humidity:5%~95%RH(non condensing)

Connection method:usually using screw terminals for connection

Product series

FBM202 belongs to FOXBORO’s I/O module series,which has a wide variety of module types including digital input,digital output,analog input,analog output,and more.

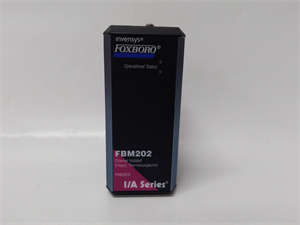

FBM202 P0926EQ FOXBORO

Product function

Temperature signal acquisition:Collect temperature signals from thermocouples or mV signal sources.

Signal conversion:Convert analog signals into standard digital signals for PLC processing.

Signal isolation:Implement signal isolation to improve system reliability.

Product Usage

FBM202 P0926EQ is widely used in various industrial automation control systems,such as:

Process control:Measure furnace temperature,reactor temperature,pipeline temperature,etc.

Environmental monitoring:Measuring the temperature of high-temperature environments.

Food processing:Measuring the temperature during the food processing process.

application area

Petrochemical industry:process control,equipment monitoring

Electricity:generation and distribution

Pharmaceutical:Production Process Control

Metallurgy:High temperature measurement

Food and Beverage:Production Process Control

FBM202 P0926EQ FOXBORO

summary

The FBM202 P0926EQ FOXBORO thermocouple/mV input module is a reliable and flexible temperature measurement module widely used in various industrial control systems.By collecting and converting thermocouple or mV signals,accurate and reliable temperature data is provided to PLC,thereby achieving precise control of process temperature.
