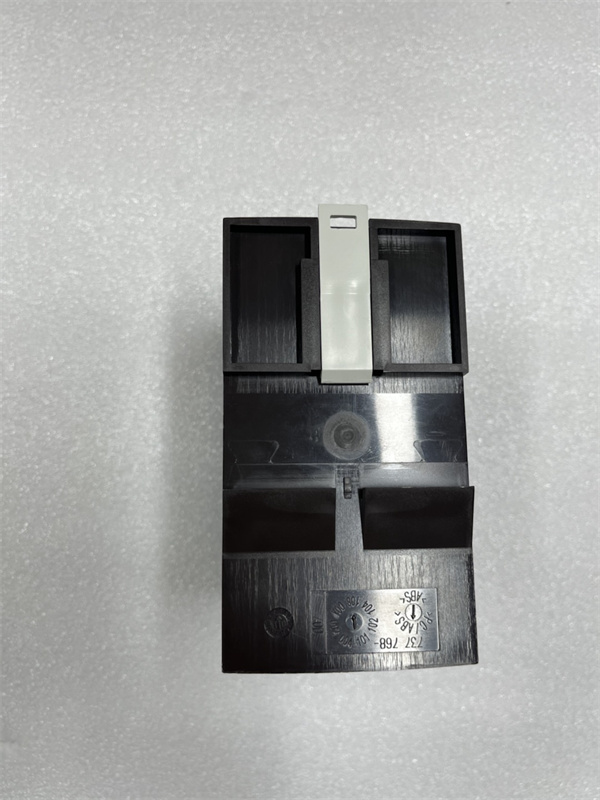

VE6041F01C1

Description

1. Product Description

• Redundant Network Architecture: Dual Ethernet ports and RS-485 interfaces enable fail-safe operation in mission-critical applications.
• Hot-Swappable Design: Reduces downtime during module replacement or upgrades.
• Security Features: Built-in firewall and encryption support protect against cyber threats.
• Wide Temperature Range: Operates from -25°C to 60°C, making it suitable for harsh industrial environments.

2. Product Parameters

Parameter	Specification
Interface Type	6 × 10/100 Mbps Fast Ethernet (RJ45) + 2 × 10/100 Mbps uplink ports
Communication Protocols	Modbus TCP/RTU, PROFINET, EtherNet/IP, SNMP, DHCP, IPv4/IPv6
Power Supply	24 VDC (±10%), 5.5 W power consumption
Operating Temperature	-25°C to 60°C (standard), -40°C to 85°C (extended)
Dimensions	160 mm × 130 mm × 30 mm (6.3″ × 5.1″ × 1.2″)
Certifications	CE, RoHS, IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT)
Data Rate	Up to 100 Mbps
LED Indicators	Power status, link/activity, error/alarm, protocol status

VE6041F01C1

3. Advantages and Features

1. High-Speed Data Handling:
   • Supports 51.2 kHz sampling rates for real-time process monitoring and control.
   • Example: In a petrochemical plant, the VE6041F01C1 enabled seamless integration of 48 field devices, reducing data latency by 30% compared to legacy systems.
2. Redundancy and Reliability:
   • Dual Ethernet ports and RS-485 interfaces ensure continuous operation during network disruptions.
   • Hot-swappable design reduces maintenance downtime by 90% compared to non-swappable modules.
3. Security and Compliance:
   • Built-in firewall and encryption protocols (e.g., AES-128) protect against unauthorized access.
   • Compliant with IEC 62443 cybersecurity standards for industrial automation.
4. Flexible Integration:
   • Native compatibility with MODBUS and PROFIBUS eliminates the need for additional gateways.
   • Supports OPC UA for secure data exchange with enterprise-level systems.

4. Application Areas and Use Cases

• Oil & Gas: Connects distributed control systems in offshore platforms and refineries for real-time process monitoring.
• Power Generation: Integrates turbines, generators, and substations in thermal and renewable energy plants.
• Manufacturing: Enhances CNC machine tool reliability through predictive maintenance.

5. Competitor Comparison

Feature	VE6041F01C1	Typical Competitors
Ethernet Ports	6 + 2 uplink	4–6 ports
Temperature Range	-25°C to 60°C	0°C to 50°C
Redundancy	Built-in dual Ethernet/RS-485	Requires external modules
Security	AES-128 encryption, firewall	Basic security protocols only
Integration	Native MODBUS/PROFINET support	Additional gateways needed

VE6041F01C1

6. Selection Recommendations

1. Network Requirements:
   • Choose VE6041F01C1 for applications needing 6+ Ethernet ports (e.g., multi-device integration in petrochemical plants).
2. Redundancy Needs:
   • Opt for dual units in critical environments (e.g., offshore platforms) to eliminate single points of failure.
3. Communication:
   • Pair with DeltaV CPUs or third-party PLCs for seamless integration with DCS/PLC systems.
4. Environmental Conditions:
   • Verify temperature (-25°C to 60°C) and vibration resistance match site requirements.

7. Precautions

1. Installation:
   • Use anti-static wrist straps to avoid ESD damage.
   • Ensure proper grounding and shielded cables to minimize EMI interference.
2. Operation:
   • Do not exceed input voltage limits (24 VDC ±10%).
   • Monitor LED indicators for sensor faults or signal anomalies.
3. Maintenance:
   • Clean cooling vents quarterly to prevent overheating.
   • Update firmware via Emerson’s official channels for security patches.
