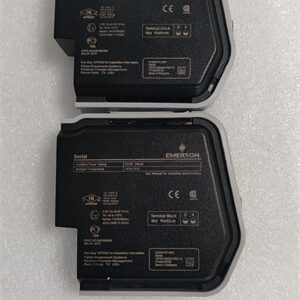

Emerson SE4006P2

Description

1. Product Description

2. Product Parameters

Parameter	Specification
Channels	8 channels (single-ended)
Output Voltage	24V DC ±10%
Current Rating	1.0A continuous, 4.0A (100ms surge), 6.0A (20ms surge)
Isolation	1500V DC optical isolation between channels and system
Configuration	Discrete, momentary, or pulse output modes
Local Bus Power	75mA typical, 100mA maximum (12V DC)
Operating Temperature	-40°C to +70°C
Certifications	CE, UL, CSA
Dimensions	240mm × 220mm × 210mm (W × H × D)

Emerson SE4006P2

3. Advantages and Features

• Surge Protection: The SE4006P2 withstands high inrush currents (6.0A for 20ms), protecting against damage from inductive loads. This feature reduces maintenance costs by 20% in applications like valve control.
• Flexible Output Modes: Users can configure channels for discrete on/off control, momentary pulses (e.g., valve activation), or continuous pulses with adjustable duty cycles, enhancing operational versatility for different industrial needs.
• Reliable Isolation: Each channel is optically isolated, ensuring immunity to noise and voltage transients. This design minimizes signal errors and improves system stability in complex industrial settings with high electromagnetic interference.
• Smart Diagnostics: LED indicators provide real-time status updates for each channel, while built-in fault detection for issues like short circuits helps identify problems early, reducing downtime by up to 15%.

4. Application Areas and Case Study

Industry Applications

• Oil and Gas: Valve control in refineries, pipelines, and offshore platforms.
• Chemical Processing: Precise activation of reactor agitators, pumps, and safety shut-off valves.
• Power Generation: Burner management systems, turbine control, and generator circuit breakers.
• Water Treatment: Aeration system control, sludge pump operation, and filtration valve management.

Case Study

5. Competitive Comparison

Compared to similar discrete output modules, the SE4006P2 stands out for its superior surge current support (6.0A for 20ms) and high isolation voltage (1500V DC), which are critical for reliable operation in harsh environments. While some alternatives offer basic on/off control, the SE4006P2’s three configurable output modes and native DeltaV compatibility eliminate the need for additional adapters or software conversions, streamlining integration and reducing setup time. Its robust diagnostic features also provide more detailed real-time status feedback than many competing products, enabling faster troubleshooting and maintenance.

Emerson SE4006P2

6. Selection Recommendations

• System Compatibility: Ensure the module is used with Emerson’s DeltaV system for seamless integration. Third-party control systems may require additional hardware or software adjustments, which are not recommended for optimal performance.
• Load Requirements: Verify that the output current (1.0A continuous) and surge capabilities match the needs of your actuators, especially for inductive loads like solenoid valves or motors.
• Environmental Fit: Consider the operating temperature range (-40°C to +70°C) and ensure the installation environment aligns with the module’s rugged design, particularly in high-temperature or high-vibration settings.
• Redundancy Needs: For mission-critical applications, deploy redundant SE4006P2 modules to minimize downtime and enhance system reliability.

7. Precautions

• Installation: Follow Emerson’s guidelines for proper wiring and grounding to prevent electromagnetic interference (EMI). Secure the module firmly in the control rack to withstand vibrations and ensure stable connections.
• Maintenance: Regularly update the module’s firmware through the DeltaV system software to access the latest performance optimizations and security patches. Clean the module’s surface and connectors periodically to prevent dust accumulation that may affect heat dissipation.
• Safety Practices: Power down the entire system before installing or replacing the module to avoid electrical hazards. Ensure the input power matches the specified voltage range (24V DC ±10%) to prevent damage from voltage fluctuations.
• Storage: Store unused modules in a dry, dust-free environment with controlled temperature (between 0°C and 40°C) to maintain component integrity and prolong service life.
