Emerson KJ3001X1-CB1

Description

1. Product Description

• Accurate Signal Conversion: Converts analog inputs (4-20 mA) to digital values with high precision.
• HART Protocol Support: Enables bidirectional communication for remote device configuration and health monitoring.
• Redundancy Ready: Supports hardware redundancy to minimize downtime in mission-critical applications.
• Diagnostic Features: Provides real-time status updates on channel integrity and signal quality.

2. Product Parameters

Parameter	Specification
Input Channels	16 single-ended analog inputs (4-20 mA)
Resolution	16-bit analog-to-digital conversion
Accuracy	±0.05% of full-scale rating
HART Compatibility	Supports HART 5 and HART 7 protocols
Power Supply	24 V DC (±10%) from the DeltaV backplane
Current Consumption	≤300 mA (typical operation)
Communication Interface	DeltaV system bus for data transfer
Operating Temperature	-40°C to +70°C (industrial-grade tolerance)
Dimensions (H×W×D)	250 mm × 100 mm × 200 mm (rack-mountable)
Certifications	CE, UL, and CSA approved for industrial use

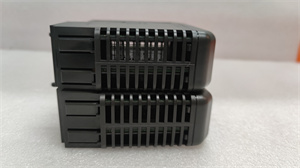

Emerson KJ3001X1-CB1

3. Advantages and Characteristics

• Robust Reliability: The KJ3001X1-CB1 is built with industrial-grade components, achieving a mean time between failures (MTBF) of over 200,000 hours. Its design resists electromagnetic interference (EMI) and voltage fluctuations, ensuring stable performance in harsh environments.
• Enhanced Diagnostic Capabilities: HART protocol integration allows continuous monitoring of field device status, enabling predictive maintenance and reducing manual troubleshooting by up to 40%.
• Seamless System Integration: Designed exclusively for DeltaV systems, the module offers plug-and-play functionality, reducing installation time by 30% compared to non-native solutions.
• High Precision Data Acquisition: With 16-bit resolution, it provides detailed signal representation, critical for applications requiring tight control over process variables.

4. Application Areas and Application Cases

• Application Areas:
  • Process Manufacturing: Chemical plants, refineries, and food processing facilities.
  • Energy Sector: Power generation units, oil and gas production sites.
  • Water and Wastewater: Treatment plants requiring precise sensor data for quality control.
• Application Case: In a chemical plant’s reactor control system, the Emerson KJ3001X1-CB1 was deployed to monitor temperature and pressure sensors. Its HART-enabled diagnostics detected a faulty transmitter early, preventing a potential process upset and saving over 50 hours of unplanned downtime annually.

5. Comparison with Competitors

Compared to generic analog input modules, the KJ3001X1-CB1 stands out for its native DeltaV compatibility and advanced HART integration, which many alternatives lack. While some competing modules offer basic signal conversion, they often require additional hardware or software for diagnostic capabilities. The KJ3001X1-CB1’s redundancy support and wide temperature range also make it a preferred choice for harsh industrial environments where reliability is non-negotiable.

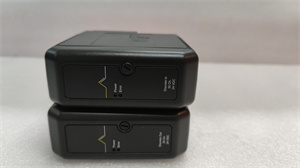

Emerson KJ3001X1-CB1

6. Selection Suggestions

• System Compatibility: Ensure your control system uses Emerson’s DeltaV architecture, as this module is not designed for third-party platforms.
• Environmental Requirements: Verify that the operational temperature (-40°C to +70°C) and EMI exposure match your site conditions.
• Channel Capacity: Evaluate your sensor count; the 16-channel design is suitable for medium to large-scale installations. For smaller setups, consider Emerson’s lower-channel modules, but the KJ3001X1-CB1 offers optimal scalability for future expansions.

7. Precautions

• Installation: Follow DeltaV system guidelines for grounding and backplane wiring to avoid signal interference. Secure the module firmly to prevent damage from vibrations.
• Power Stability: Use a regulated 24 V DC power supply within the specified tolerance. Avoid sharing the power circuit with high-voltage equipment.
• Firmware Management: Regularly update the module’s firmware through the DeltaV operator interface to access the latest features and security patches.
• Spare Parts Planning: Maintain a spare KJ3001X1-CB1 on-site to minimize downtime in case of unexpected failures, especially in redundant configurations.
